Home > Industrial Equipment & Components > Bearing > Needle Bearing > NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm

NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm

NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm thumbnail-1
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm thumbnail-2
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm thumbnail-3
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm thumbnail-4
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm thumbnail-5
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm thumbnail-6
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm photo-1
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm photo-2
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm photo-3
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm photo-4
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm photo-5
NFR 30 China Supplier Freewheel One Way Clutch NFR30 30x90x48 mm photo-6
US$ 10 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
UBT BRAND freewheel one way clutch
Bore Size:
30,
Outside Diameter:
90,
Contact Supplier Request Quote Chat Now
Changzhou UBT Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / NINGBO /TIANJIN / QINGDAO / SHENZHEN / DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name UBT BRAND freewheel one way clutch
Bore Size 30,
Outside Diameter 90,
Model Number NFR30
Precision Rating High Precision
Seals Type Open
Number of Row Single Row
Place of Origin Jiangsu, China

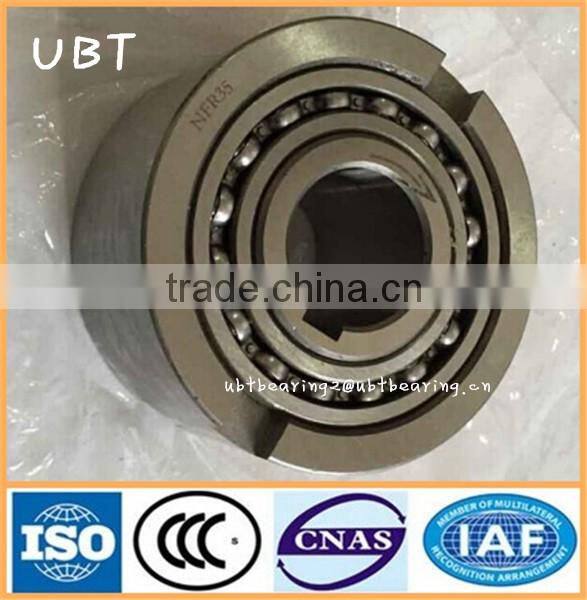

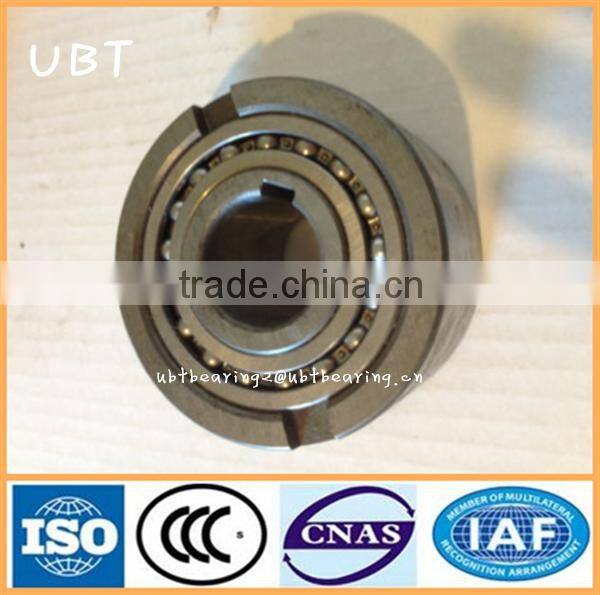

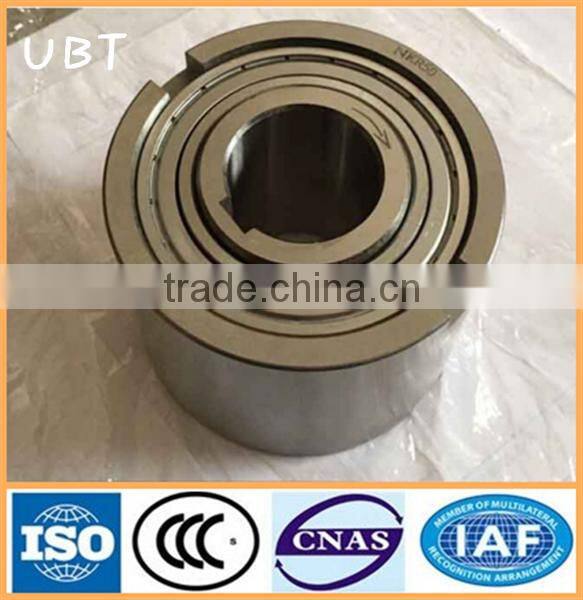

NFR 30 China supplier freewheel one way clutch NFR30 30x90x48 mm

 Features of One way clutch NFR

Type NFR is a bearing supported roller type freewheel without any sealing.
Lubrication and sealing must be provided by the installation.
Standard lubrication is oil.
Size 8 to 20 units use steel on steel bearing support ROM the inner race. A
bove size 20, two 160...Series ball bearings are used, giving a higher overrunning speed capacity.
The inner race is keyed to the shaft.
The outer race has a positive n6 tolerance to give a press fit in a housing to H7.  The housing must be strong enough to not expand after assembly.

Product Description

CHANGZHOU UBT FREEWEEL ONE WAY CLUTCH DESCRIPTION

Catalogue of Freeweel One way roller clutch NFR

Type Size   Overrunning speeds Bearing   Weight








NFR
(ANR-ANG) 		dH7 TKN1) nimax2) namax3)   Dn6 D2 D4 L I t bH11
[mm] [Nm] [min-1] [min-1]   [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
8  20  1000  1000  * 37  20  30  20    3  6  0.1
12  20  1000  1000  * 37  20  30  20    3  6  0.1
15  78  850  850  * 47  26  37  30    3.5 7  0.3
20  188  650  650  * 62  37  52  36    3.5 8  0.6
25  250  2100  3600  16008** 80  40  68  40  0.2 4  9  1.2
30  500  1700  3200  16009** 90  45  75  48  0.2 5  12  1.8
35  663  1550  3000  16010** 100  50  80  53  1.2 6  13  2.4
40  1100  1150  2600  16011** 110  55  90  63  2.2 7  15  3.3
45  1500  1000  2400  16012** 120  60  95  63  2.2 7  16  4
50  2375  800  2150  16014** 130  70  110  80  2.7 8.5 17  5.7
55  2550  750  2000  16015** 140  75  115  80  4.2 9  18  6.5
60  4250  650  1900  16016** 150  80  125  95  3.2 9  18  8.9
70  5875  550  1750  16018** 170  90  140  110  1.1 9  20  13.5
80  10000  500  1600  16021** 190  105  160  125  0  9  20  19
90  17250  450  1450  16024** 215  120  180  140  0.6 11.5 24  27.2
100  19625  350  1250  16028** 260  140  210  150  2.6 14.5 28  44.5
130  34750  250  1000  16032** 300  160  240  180  2  17.5 32  68

 NFR 30 China supplier freewheel one way clutch NFR30 30x90x48 mmNFR 30 China supplier freewheel one way clutch NFR30 30x90x48 mmNFR 30 China supplier freewheel one way clutch NFR30 30x90x48 mm

Main products

CHANGZHOU UBT FREEWHEEL ONE WAY CLUTCH

NFR 30 China supplier freewheel one way clutch NFR30 30x90x48 mmNFR 30 China supplier freewheel one way clutch NFR30 30x90x48 mm

NFR 30 China supplier freewheel one way clutch NFR30 30x90x48 mm

Packaging

CHANGZHOU UBT FREEWHEEL ONE WAY CLUTCH

1.Neutral packing (neutral plastic bag+ neutral carton+ Plywood/Iron pallets)

2.Custom packing (with logo or barcode according to clients’ requirement)

FAQ

CHANGZHOU UBT FREEWHEEL ONE WAY CLUTCH

Q:  I have a urgent order , and want to find a good supplier in short time ,what should i do ?A: Please send your inquiry to me ,and tell me ,the model ,quantity ,material ,package ,precision ,you need ,i will give you a quick response.

Q:  How can i get a price with a discount ?A:  Discount according to orders .Bigger order ,less money every bearing will cost ,then discount will be bigger .

Q:  I have a trial order ,the quantity is little ,could you manufacturing it for me ?A:  Please contact me ,i will tell you the MOQ.If you also need we design the single box for you ,we could make it for you ,and the extra cost of the order will return you by next official order.

Q:  I don’t know your factory before ,could you tell me which company you are cooperating now ? I want to get to know more about your factory?A:  Sorry ,this is our company regulation :we should not let the information of our customer out ,in the same time ,we also keep your information confidential.If you want to know more information ,you could get some free sample from our factory or visit factory if you have the time .

Q:  Does your company could accept D/P or D/A payment terms?A:  The payment terms of our company is :30% deposit by T/T or West Union ,70 % balance against the copy of B/L.

Q:Now i have a important order ,the quality must be good ,and my customer will test the goods when receive it ,the quality must be good ,can i trust you ?

A:Our manufacturing factory was founded over 10 years. With so many year professional experience, if you need some certificate to show for your customer, pls inform us. We belive could help u to enlarge your market!

Factory

CHANGZHOU UBT FREEWHEEL ONE WAY CLUTCH

NFR 30 China supplier freewheel one way clutch NFR30 30x90x48 mm
