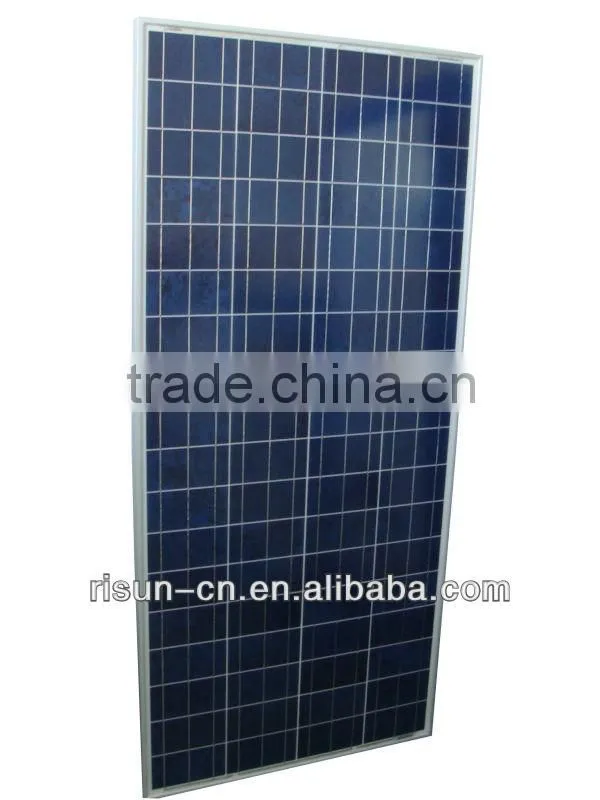

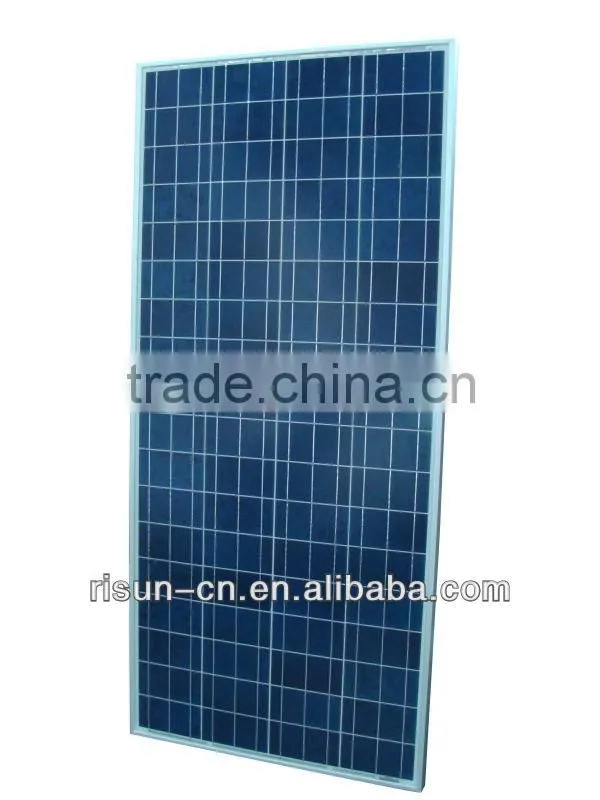

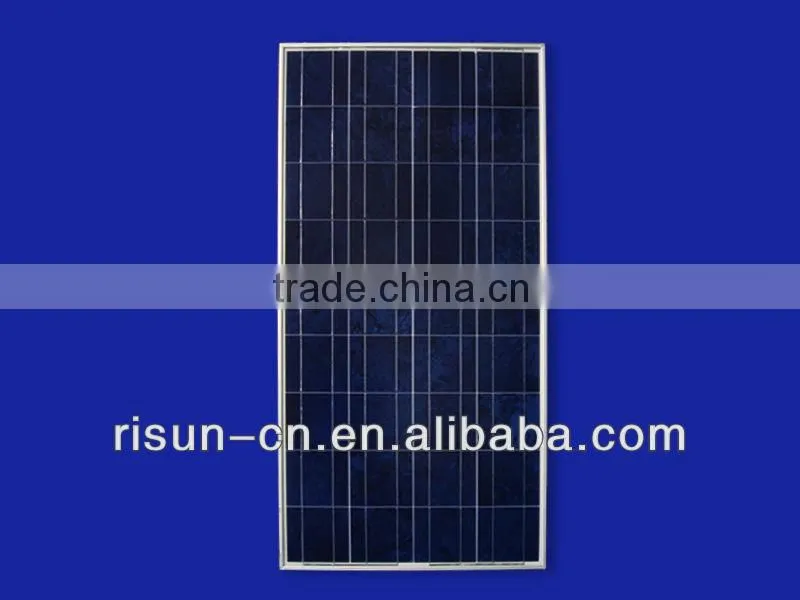

Help CenterRisun Hot Good Price 120w Solar Module 18v
Related Products
-
Double Glass PV Solar PanelUS$ 1.9 - 2.1MOQ: 1 Piece -
Risun Double Glass PV Solar PanelUS$ 1.9 - 2.1MOQ: 1 Piece
-
RISUN A-grade Cell High Efficiency 230W Poly Solar ModuleUS$ 0.42 - 0.64MOQ: 50 Pieces
-
RISUN 200W Poly Solar ModuleUS$ 0.41 - 0.49MOQ: 50 Pieces
-
RISUN 190W Mono Solar ModuleUS$ 0.55 - 0.7MOQ: 100 Pieces
120w solar module 18v risun solar module 120-140w
Electrical Specifications
Model RSM120P-36 RSM130P-36 RSM135P-36 RSM140P-36
Max. power voltage UMPP(V) 18.29 18.02 17.74 17.5
Max. power current IMPP(A) 7.66 7.49 7.33 6.86
Ope ncircuit voltage Voc(V) 22.02 21.77 21.53 21.4
Short circuit current 8.23 8.10 7.97 7.7
Power Tolerance ±5
Max. system voltage DC 1000V
Max.series Fuse 10 A
No.of Bypass Diodes 2 PCS

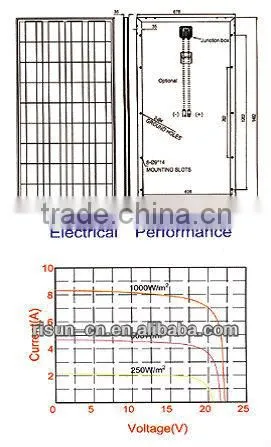

Mechanical Characteristics
Frame Aluminium anodized,color: silver, black
Dimensions 1482*676*35mm
Weight 12.5 kg
Front Cover 3.2 mm ultra clear,low iron tempered,glass, with high light transmittance.
Backside Cover TPT
Cells per Module 36 pcs (4X9)
Cell Type Polycrystalline 156*156mm
Temperature Coefficients
Norminal Operating Cell Temp.(NOCT) 47°C(±2%)
Temp. Coefficient Voltage (Voc) -0.32%/°C
Temp. Coefficient Current(Isc) +0.03%/°C
Temp. Coefficient Power(Pm) -0.42%/
Output(Optional)
Cable 2 * 750mm, LAPP 4mm2
Connector MC4 Compatible
Warranty
12 years warranty on 90% of nominal power output.
25 years warranty on 80% of nominal power output.
5 years material and workmanship warranty.
