Double Glass PV Solar Panel

Name: Double Glass PV Solar Panel
Brand: RISUN
SKU: 113216641

US$ 1.9 - 2.1 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

RISUN

Model Number:

RSM60/72/36-125/156

Risun Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name RISUN

Model Number RSM60/72/36-125/156

Material Monocrystalline Silicon

Size 125*125,156*156 mm

Number of Cells 36/60/72

Max. Power 280w

Specifications

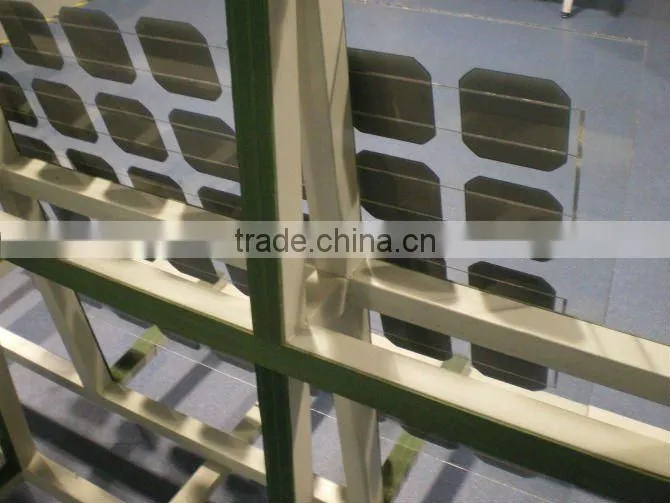

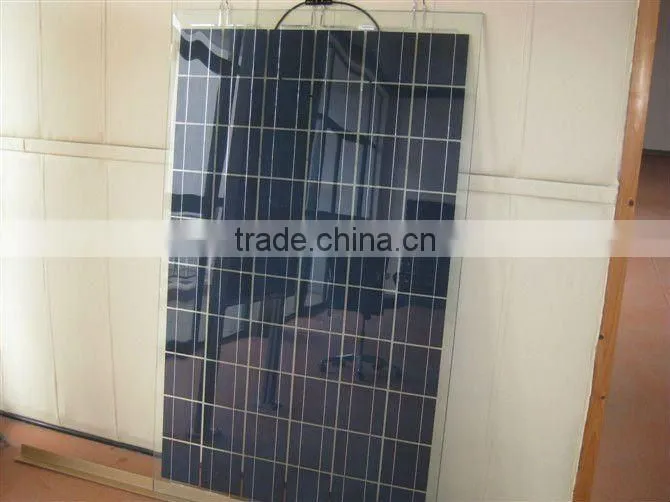

double glass PV solar panel
Rooftop and harsh environments.
double glass PV module
this module have good appreance

this module have good appreance,good Light transmittance,heat insulation,sound insulation

Applications

Rooftop and harsh environments.

double glass PV module
this module have good appreance,good Light transmittance,heat insulation,sound insulation

Introduction

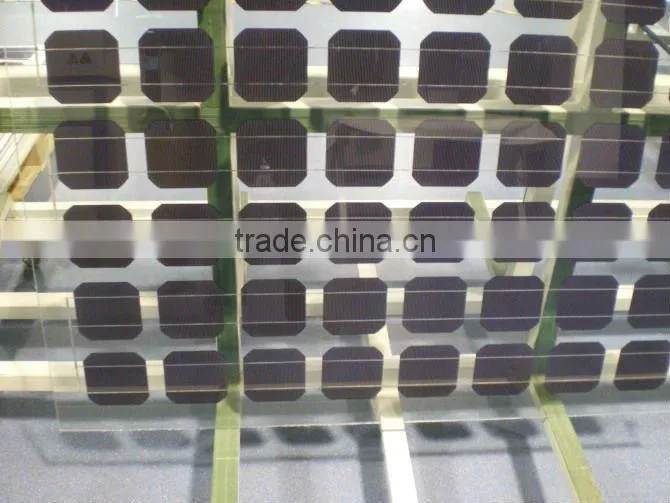

double glass PV module is lamilated by 6mm tempered glass ,pvb foil,125 mono solar cells or 156 poly cells ,pvb foil and 6mm tempered glass .

Choice of Material

Item	Discription
Module Size	From min 300×300mm to Max 2000×3000mm
GlassType	Full-toughened, Semi-toughended
Thichness of Glass	3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm
Construction	3.2mm-12mm glass+EVA/PVB+cell+EVA/PVB+3.2-12mm glass
Cell Type	Monocrystalline, Polycrystalline
Cell Color	Blue, Black. Orang, Red, Bronze
Cell Size	5inch,6inch

Design

Item	Discription
Type of connection	Juntion box on back or Juntion box on side
Shape	Rectangle, Square or Abnormal Shape(Customized)
Transparency	5%,10%,20%,25%,30%,35%,40%,50%,60%
Efficiency of Module	150Wim2 (5% Transparency)	140W/m2 (10% Transparency)
	130Wim2 (20% Transparency)	120W/m2 (25% Transparency)
	110W/m2 (30% Transparency)	100W/m2 (35% Transparency)
	90W/m2 (40% Transparency)	80W/m2 (50% Transparency)

Technical Standard

Item	Discription
Max System Votlage	1000VDC
Standards	IEC61215, IEC61730, GB/T9535-1988
Deviation of Glass	L < 1000,2	1000≤L<2000,3	2000≤L<3000,4
Guarantee	5years
Warranty of Efficiency	90% minimum of output power after 10 years
	80% minimum of output power after 25 years
