Help CenterRisun 250W Poly Solar Panel With TUV CE CEC ISO Full Certifications
Related Products
-
250W Solar Panel, Poly Solar Panel ,solar Energy Products in ChinaUS$ 0.48 - 0.58MOQ: 1 Piece -
RISUN 72pcs Poly Solar ModuleNegotiableMOQ: 50 Pieces
-
230w Poly Solar ModuleNegotiableMOQ: 20 Pieces
-
High Efficiency Low Price Good Quality TUV CEC Certificated Solar Panel 250W Poly Solar Module 250W PolyUS$ 0.52 - 0.55MOQ: 1 Piece
-
High Efficiency Low Price Good Quality TUV Certificated 240W Poly Solar Panel Solar ModuleNegotiableMOQ: 1 Piece

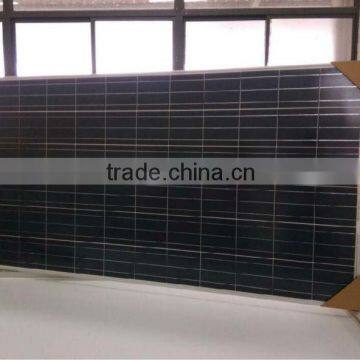

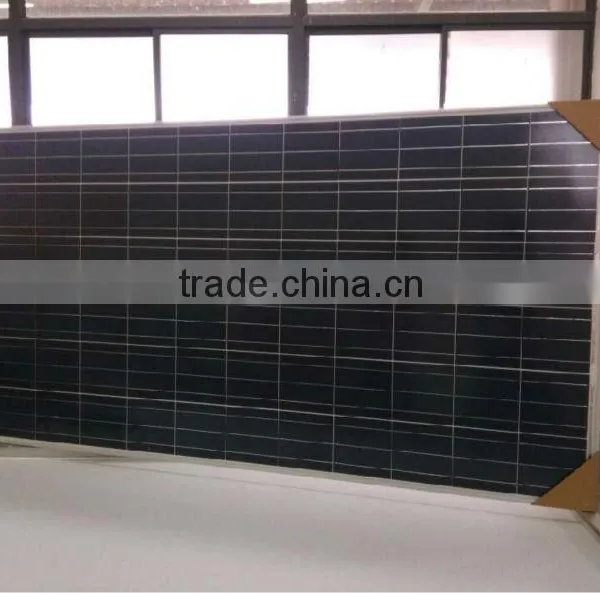

250W Poly Solar Panel, Solar Panel, Solar Module Specifications:
1. Solar panel brand name: RISUN
2. Place of origin of the 250w poly solar module: Jiangsu, China ( mainland )
3. Cell numbers of solar panel 250w: 60
4. Solar panel cell size ( mm ): 156*156mm
5. 250w poly solar module dimension ( mm ): 1640*992*40mm
6. Solar panel max power: 250w
7. Voc of solar panel 250w ( V ): 37.85
8. Vmp of solar panel 250w ( V ): 30.12
9. Isc of solar panel 250w ( A ): 8.65
10. Imp of solar panel 250w ( A ): 8.3
11. Solar panel module: RSM60-156P/250W
12. Warranty of the 250w poly solar panel: 5 years workmanship; 12 year limited warranty of 93% power output; 25 years limited warranty of 85% power output
1. Solar panel strict selection of appearance and electric performance before encapsulation
2. Excellent effect of solar panel at low light level

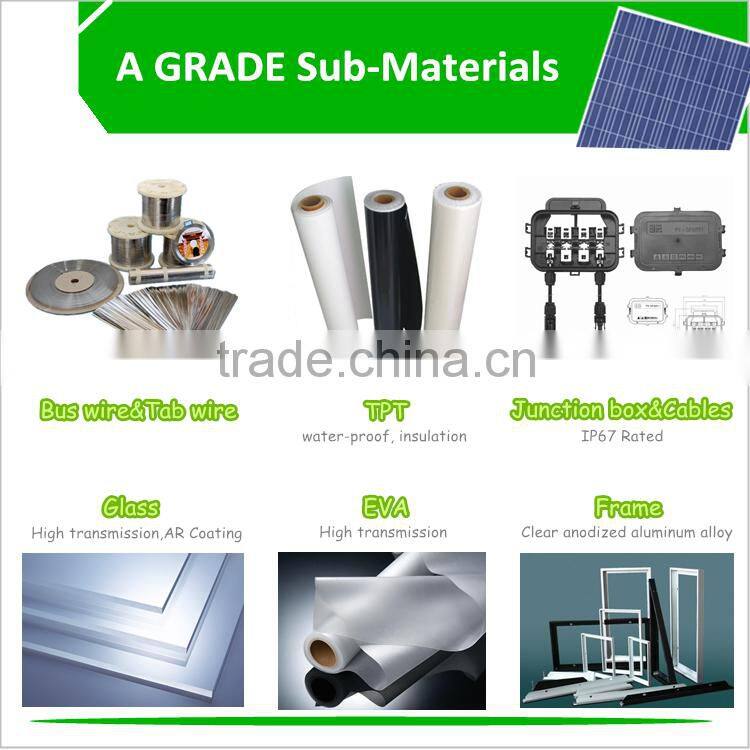

3. 250w poly solar module with high transparent tempered glass
4. Solar panel 250w made of high quality EVA and back film
5. Anodic oxidized aluminum frame and waterproof junction box of solar panel
6. Unique process making 250w poly solar module nice-looking, rugged weather-resistant, and easy to install
7. A leak hole design in solar panel against seeped icing and frame distortion

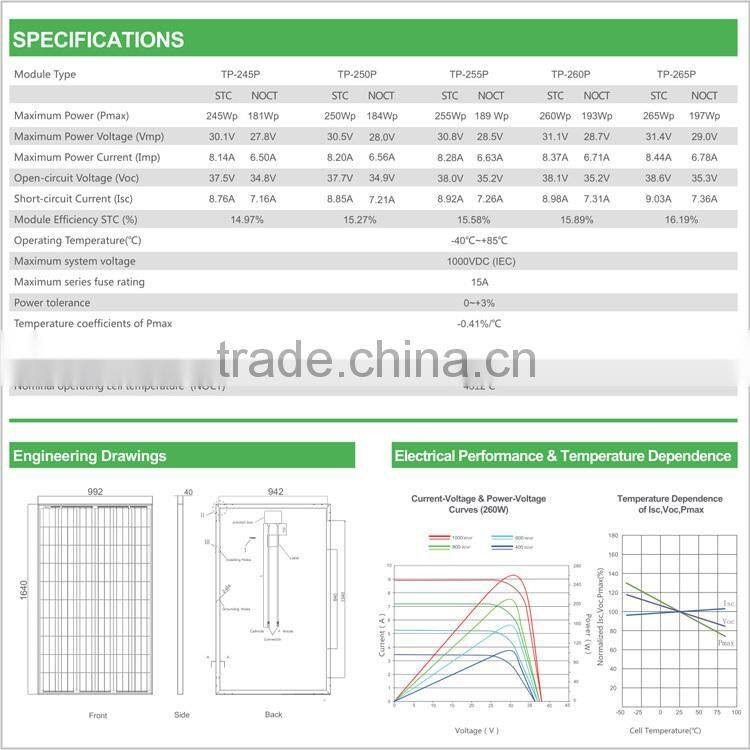

250W Poly Solar Panel Specifications (Test condition: 1000W/m2, AM1.5, 25°C)
| Temperature Coefficients | |
| NOCT | 45+/-2°C |
| VOltage temperature coefficients | -0.36%/°C |
| Current temperature coefficients | +0.033%/°C |
| Power temperature coefficients | -0.44%/°C |
| Minimum power tolerance | +/-3% |
| Mechanical Data | |
| Solar Cell | 72Poly-crystalline 156×156mm |
| Front Glass | 3.2mm tempered |
| Junction Box | IP65 rated |
| Output cables | 900mm lenght cable |
| Frame | Anodized aluminium |
| Electrical Data | |
| Module type | RSM60-156P/250W |
| Nominal peak power(Wp) | 250W |
| Nominal voltage(Vmp) | 30.12V |
| Nominal current(Imp) | 8.3A |
| Open-circuit voltage(Voc) | 37.85V |
| Short-circuit voltage(Isc) | 8.65A |
| Module efficiency | 14% |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1000V DC |
| Weight | 18kg |
| Dimension | 1650×990×40mm |
| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment | |||
| FOB | ||||||
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | |||||
| CIF | ||||||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||||
| West Union | Amount lower than 5000usd | |||||
| Paypal | ||||||
| Delivery time | 10 working days after receiving payment for one container | |||||
