Specifications
1 High Efficiency Low Price Good Quality.2 TUV CED Certificated Solar Panel 250W Poly.
3 Solar Module 250W Poly
High Efficiency Low Price Good Quality TUV CEC Certificated Solar Panel 250W Poly Solar Module 250W Poly
SPECIFICATION
| 250W Poly Solar Panel Specifications (Test condition: 1000W/m2, AM1.5, 25°C) | |
| Temperature Coefficients | |
| NOCT | 45+/-2°C |
| VOltage temperature coefficients | -0.36%/°C |
| Current temperature coefficients | +0.033%/°C |
| Power temperature coefficients | -0.44%/°C |
| Minimum power tolerance | +/-3% |
| Mechanical Data | |
| Solar Cell | 72Poly-crystalline 156×156mm |
| Front Glass | 3.2mm tempered |
| Junction Box | IP65 rated |
| Output cables | 900mm lenght cable |
| Frame | Anodized aluminium |
| Electrical Data | |
| Module type | RSM60-156P/250W |
| Nominal peak power(Wp) | 250W |
| Nominal voltage(Vmp) | 30.12V |
| Nominal current(Imp) | 8.3A |
| Open-circuit voltage(Voc) | 37.85V |
| Short-circuit voltage(Isc) | 8.65A |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1000V DC |
| Weight | 18kg |
| Dimension | 1650×990×40mm |
WARRANTY
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.5 years limited warranty on material and workmanship
6.10 years and 20 years limited warranty for minimum power output

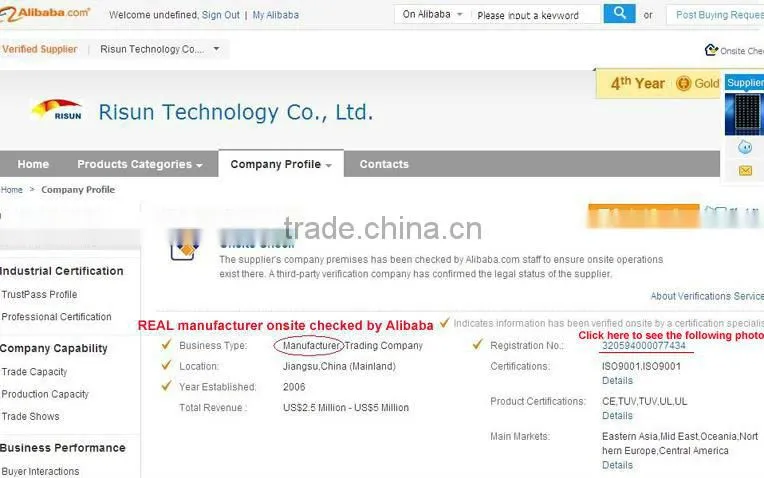

REAL MANUFACTURER ONSITE CHECKED BY ALIBABA
LINK: https://img13.fr-trading.com/company_profile.html

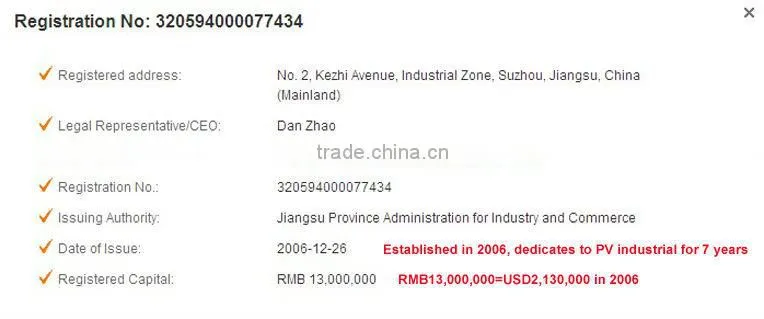

7 YEARS DEDICATES TO PV INDUSTRIAL, REGISTER LICENSE WAS CHECK BY ALIBABA.
LINK FOR CEC APPROVED PRODUCT FROM RISUN
.au/approvedproducts/modules/currentmodules.html#searchResults

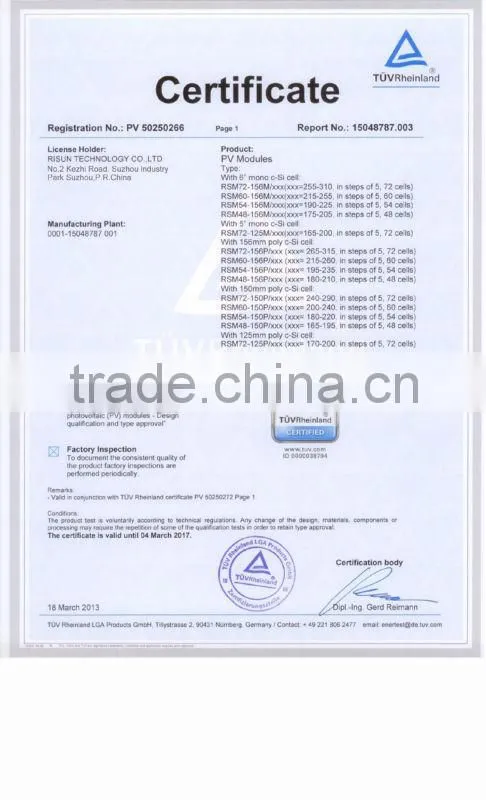

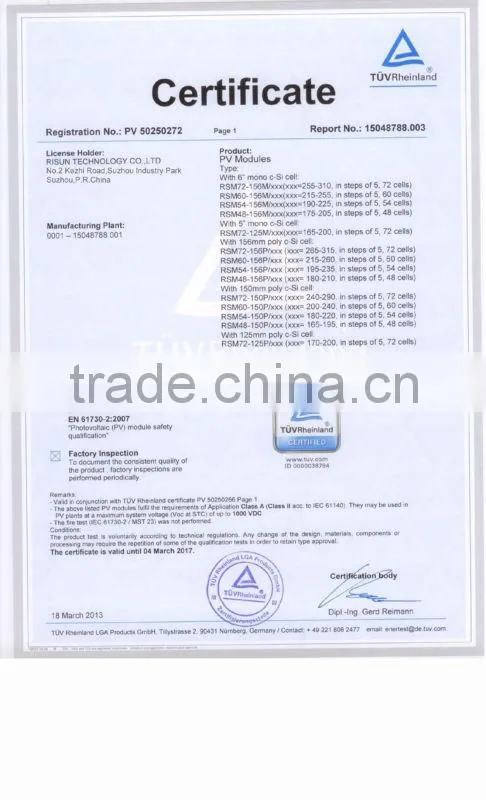

TUV CERTIFICATION

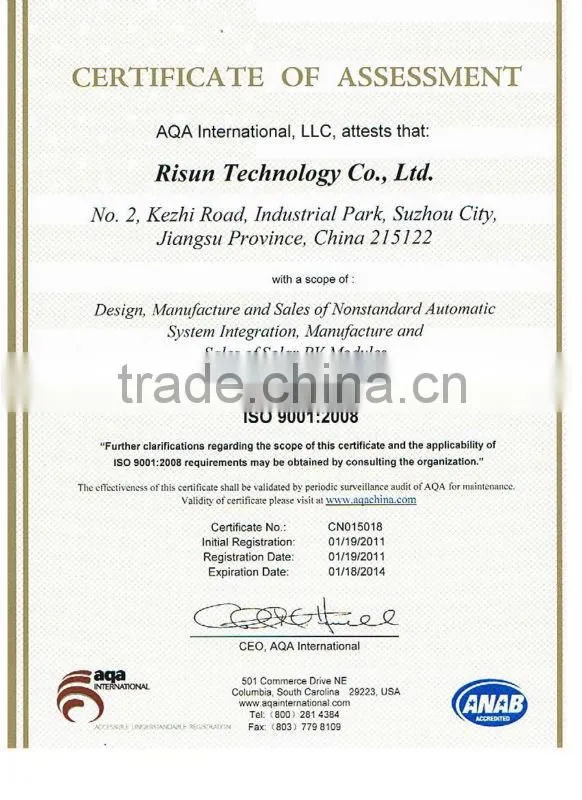

ISO9001 CERTIFICATION

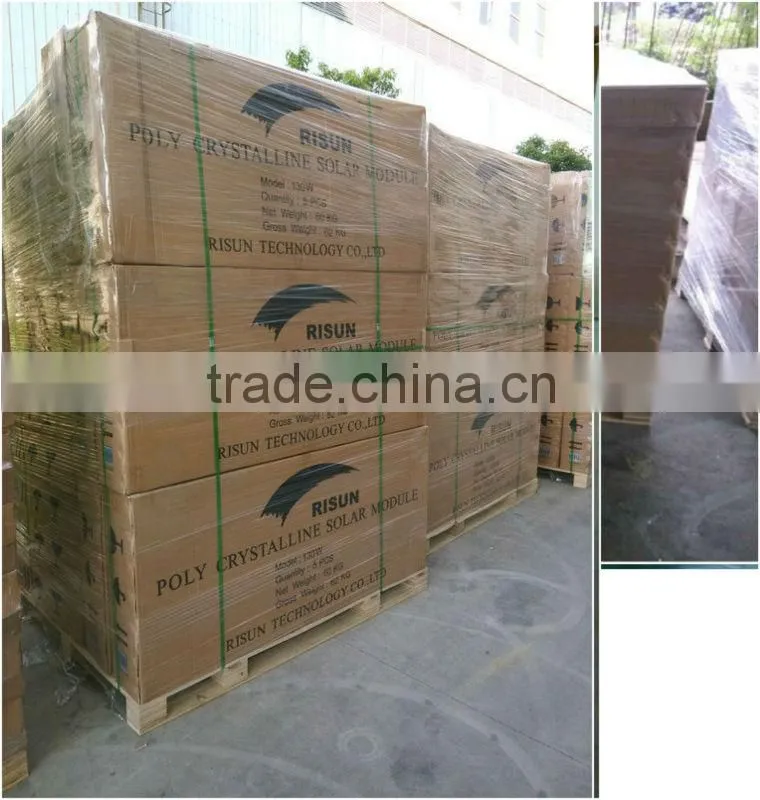

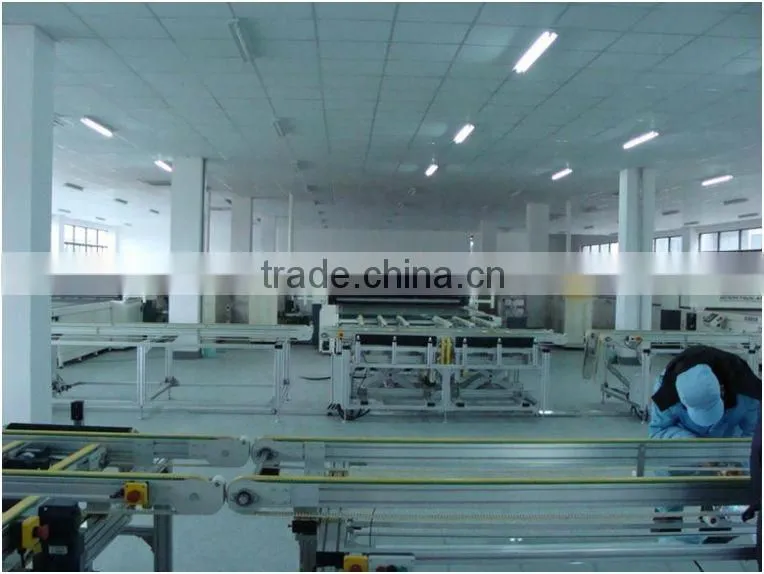

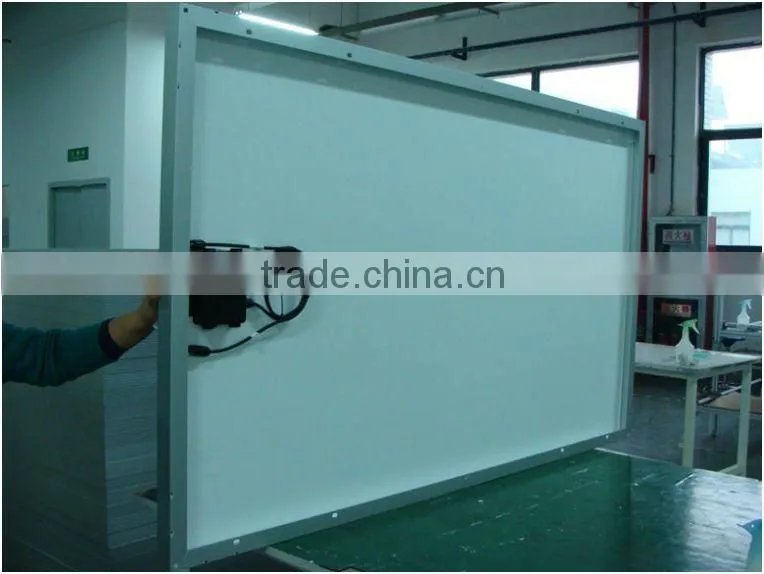

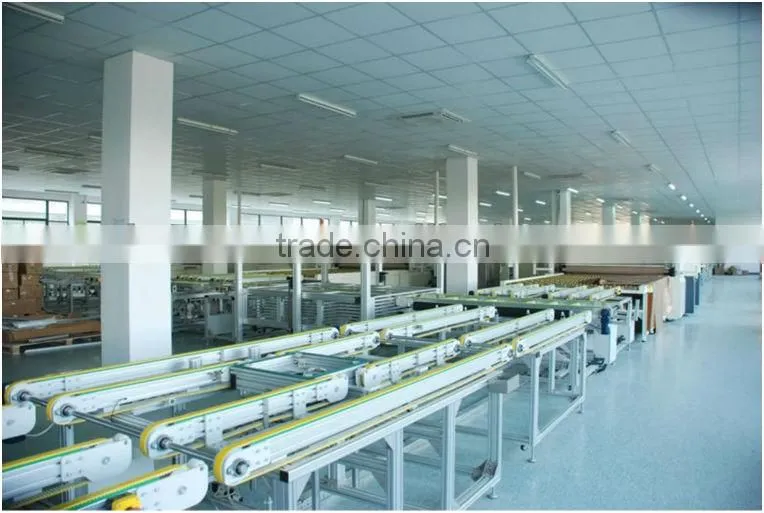

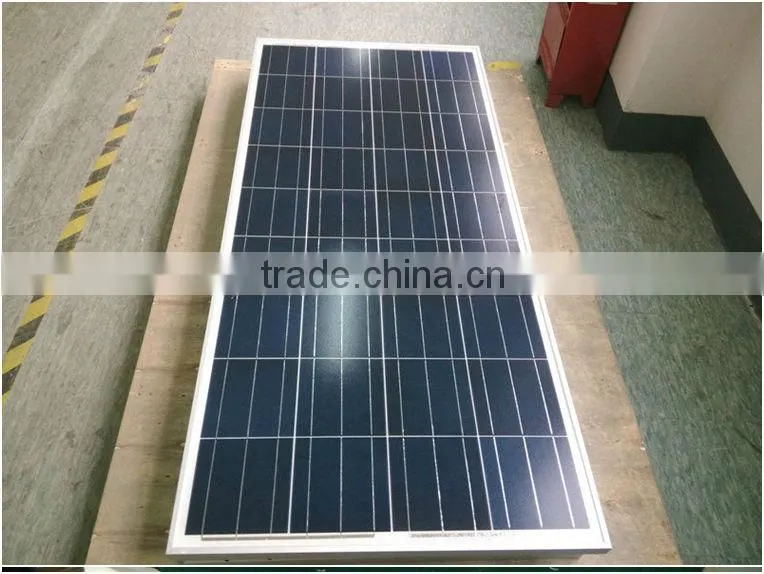

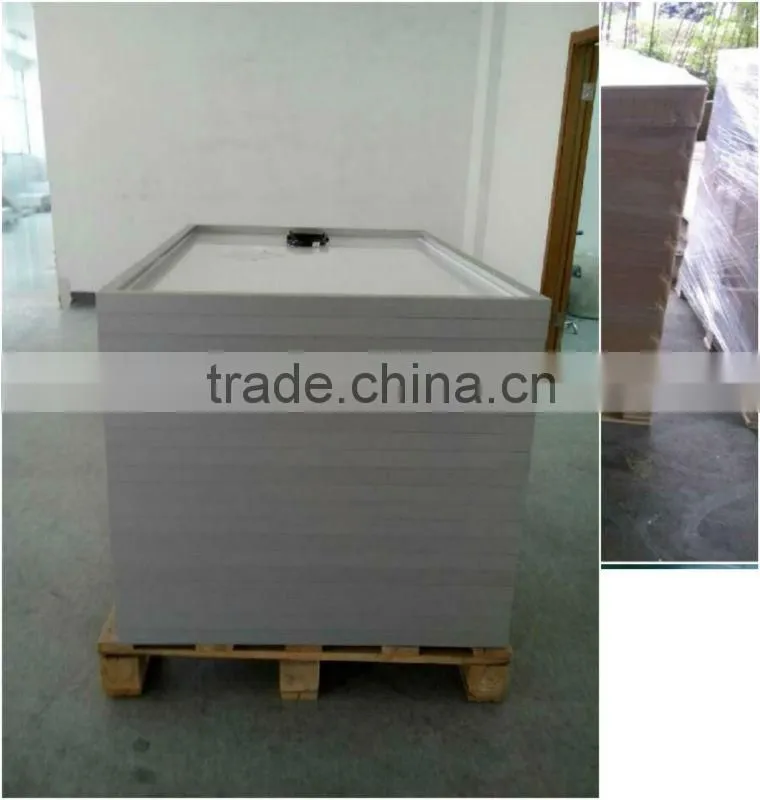

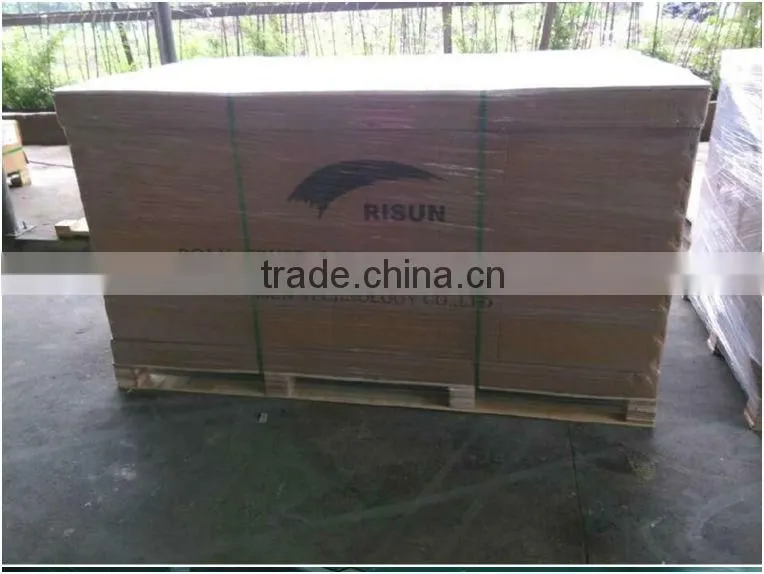

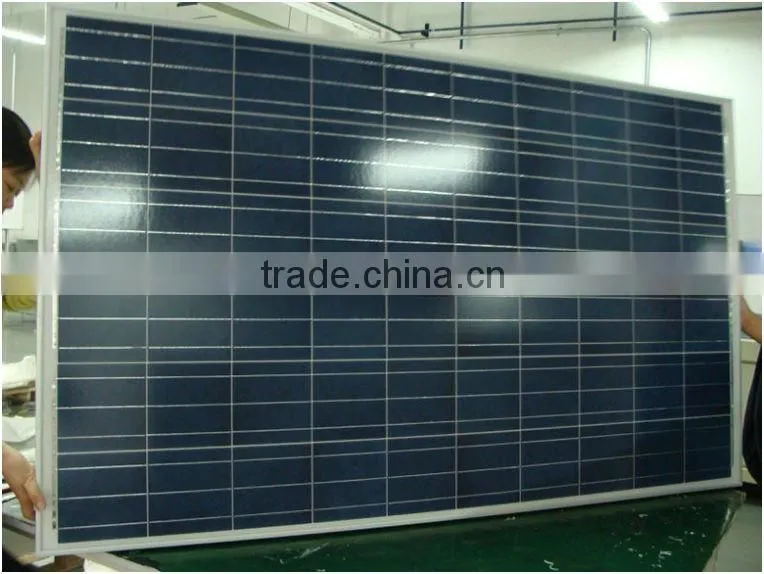

FACTORY AND SOLAR PANELS PHOTOS
