Specifications
250W Poly Solar Panel Specification:1. A grade solar cells.
2. TUV/IEC/CE/CEC
3. Fast shipment
4. 25 years guarantee
250W Poly Solar Panel, Solar Panel, Solar Module Specifications:
1.A grade soar cell
2.OEM service
3.CE/TUV certificate

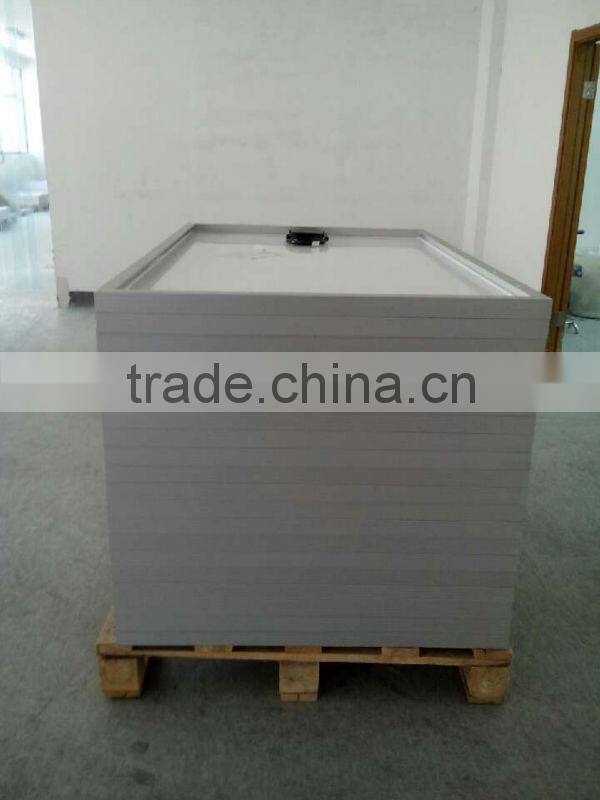

4.packing:carton and pallet
Features:
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
6. Outstanding electrical performance under high temperature and low irradiance conditons
Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.

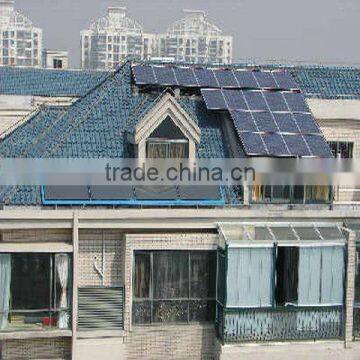

2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications
Solar panel quality and warranty:
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.5 years limited warranty on material and workmanship
6.10 years and 20 years limited warranty for minimum power output
250W Poly Solar Panel Specifications (Test condition: 1000W/m2, AM1.5, 25°C)
| Temperature Coefficients | |
| NOCT | 45+/-2°C |
| VOltage temperature coefficients | -0.36%/°C |
| Current temperature coefficients | +0.033%/°C |
| Power temperature coefficients | -0.44%/°C |
| Minimum power tolerance | +/-3% |
| Mechanical Data | |
| Solar Cell | 72Poly-crystalline 156×156mm |
| Front Glass | 3.2mm tempered |
| Junction Box | IP65 rated |
| Output cables | 900mm lenght cable |
| Frame | Anodized aluminium |
| Electrical Data | |
| Module type | RSM60-156P/250W |
| Nominal peak power(Wp) | 250W |
| Nominal voltage(Vmp) | 30.12V |
| Nominal current(Imp) | 8.3A |
| Open-circuit voltage(Voc) | 37.85V |
| Short-circuit voltage(Isc) | 8.65A |
| Module efficiency | 14% |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1000V DC |
| Weight | 18kg |
| Dimension | 1650×990×40mm |
Any question please ask me feel free, and please add me Skype:.0724
