Specifications
1 High Efficiency Low Price Good Quality2 TUV CEC Certificated
3 Solar Panel 100W Mono Solar Module 100W Mono

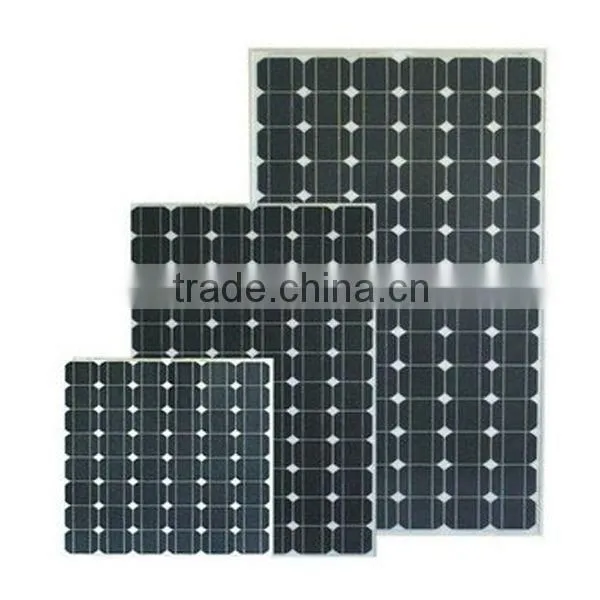

High Efficiency Low Price Good Quality TUV CEC Certificated Solar Panel 100W Mono Solar Module 100W Mono
SPECIFICATION
Module |
Type (36 Series) | ||
| Encapsulation | Glass/EVA/Cells/EVA/TPT | ||
| Parameters | RSM36-125M/90W | RSM36-125M/100W | |
| Max power | Pm(W) | 90W | 100W |
| Tolerance | +/-3% | ||
| Open circuit voltage | Voc(V) | 21.4 | 23.21 |
| Short circuit current | Isc(A) | 5.36 | 5.83 |
| Max. power voltage | Vmp(V) | 18 | 18.4 |
| Max. power current | Imp(A) | 5 | 5.44 |
| Dimensions | (L*W*H) | 1200x540x35mm | |
| Net Weight | (kg) | 7.5 | |
| Max. system voltage | (V) | 1000VDC | |
| Operate Temp. Scope | -40/+85'C | ||
| Resistance | 227g steel ball fall down from 1m height and 120m/s wind | ||
| Warranty | Pm is no less 90% in 10 years and no less 80% in 25 years | ||
| STC | (Standard Test Condition: 1000W/m2, AM1.5, and 25'C) |
||
WARRANTY
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.5 years limited warranty on material and workmanship
6.10 years and 20 years limited warranty for minimum power output
REAL MANUFACTURER ONSITE CHECKED BY ALIBABA
LINK: https://img13.fr-trading.com/company_profile.html
7 YEARS DEDICATES TO PV INDUSTRIAL, REGISTER LICENSE WAS CHECK BY ALIBABA.
LINK FOR CEC APPROVED PRODUCT FROM RISUN
.au/approvedproducts/modules/currentmodules.html#searchResults
TUV CERTIFICATION
ISO9001 CERTIFICATION
FACTORY AND SOLAR PANELS PHOTOS
