High efficiency 45W poly solar panel with high quality
45W Poly Solar Panel Specifications
1)45W poly solar panel
2)High efficiency. reliable quality
3)warranty 5years
4)certifications:CE,TUV
Model |
RSM36-156P/45W |
|
Poly-crystalline silicon | ||
Maximum Power |
Watt |
45W |
Production Tolerance |
|
+3% /-3% |
Maximum Power voltage |
V |
17 |
Maximum Power current |
A |
2.35 |
Open circuit voltage |
V |
21 |
Short circuit current |
A |
2.64 |
Size of module (wide and high) |
670*540*25 |
|
Frame (type, material and thickness) |
Anodized Alu. Alloy frame,40mm thickness |
|
Number of cells |
36pcs |
|
Size of cells (wide and high) |
125mmx62.5mm |
|
Weight per piece Kg |
3.8 |
|
Type of junction box |
PV junction box |
|
|
Cable type and length, Connector type |
PV cable, 0.8m Plug and socket |
|
Maximum system voltage |
1000V |
|
Temperature coefficient of Isc |
+0.05%/°C |
|
Temperature coefficient of Voc |
-0.33%/°C |
|
Temperature coefficient of power |
-0.23%/°C |
|
Temperature coefficient of Im |
+0.05%/°C |
|
Temperature coefficient of Vm |
-0.33%/°C |
|
NOCT (Nominal operating cell temperature) |
45°C(+2°C) |
|
Insulation |
>=100 MΩ |
|
Voltage Standoff |
AC2000V, DC3000V |
|
Wind Bearing |
60m/s (200kg/sq.m) |
|
Impact Resistance Hail Impact Test |
227g steel ball fall down from 1m height |
|
CONVERSION EFFICIENCY |
Cell CONVERSION EFFICIENCY >14.2% |
|
Features
1. stable 12V/24V DC voltage output;
2. high conversion rate, high efficiency output;
3. excellence in weak light effect;
4. high transmittance of high quality tempered glass;
5. unique technology allows components to the rugged beauty of the snow, convenient installation;
6. unique technology to avoid frame water freezing and deformation;
7. can be designed according to customer demand, a separate package;
Advantages
1, We have high efficiency silicon solar cell sheet.
2, We have 2 bypass and 2 tube to reduce hot spots loss.
3, Component surface layer with high light textured glass packaging, a high optical transmittance and decrease in light reflection, improve the conversion efficiency of photovoltaic modules.
4, Maximum system voltage greater than 4*1000VDC.
5, Life of it up to 26 years, attenuation of less than 20%
6, Anodized aluminum frame: high mechanical strength, good wind resistance and hail suppression which can be in a variety of harsh climatic conditions, convenient installation.
7, Structural characteristics of mono-crystalline silicon solar cell series parallel, with high strength and low iron tempered glass, high performance anti-aging EVA. Weather ability excellent TPT composite film laminating, light transmittance and high mechanical strength.
Application
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems

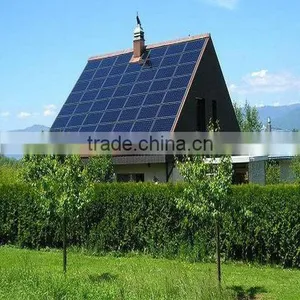

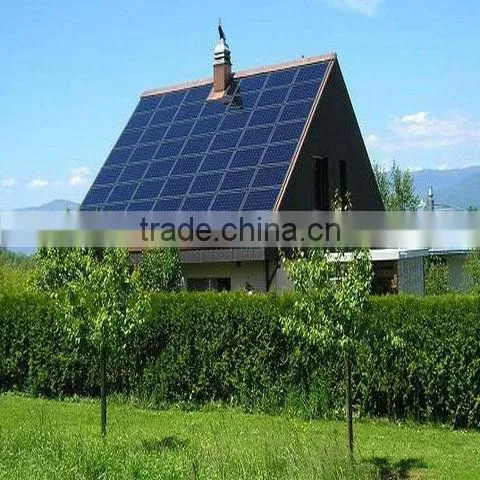

3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Solar television, solar power, solar heater, solar lights, highway solar streetlamp, solar car/ electric vehicles, satellites, spacecraft, space solar power plant, energy saving lamp, the field of environmental protection.
Quality And Warranty
1. We can supply the poly and mono crystalline solar panel from 5-300 watt.
2. Photoelectric conversion rate: about 17%.
3. 10-year product warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output.
4. Certificate: ISO9001:2000, CE, TUV, UL, IEC.
5. OEM or ODM service is provided.
The production path of solar cell panel
1. Scribing
2. Sorting
3. Single welding
4. Series welding
5. Stack
6. lamination
7. Testing
8. Latex coating
9. Enframe
10. Wire connection
11. Cleaning
12. Final testing
Any question please ask me feel free, and please add me Skype:.0724
