Help CenterHigh Quality 150W Poly Solar Panel With CE CEC TUV ISO Certificate
Related Products

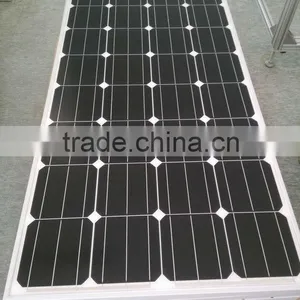

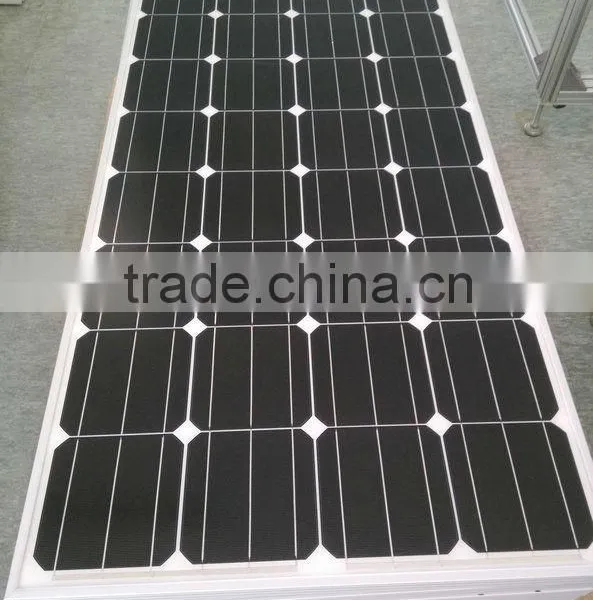

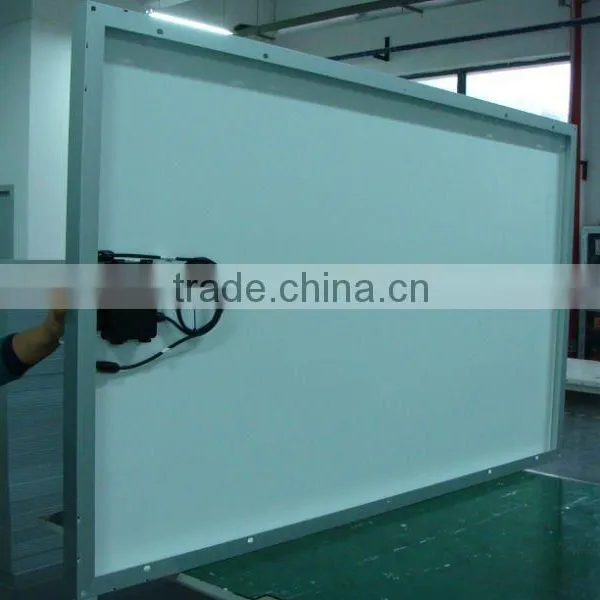

Risun Solar Panel/Solar Module 150w Poly Solar Panel Pictures

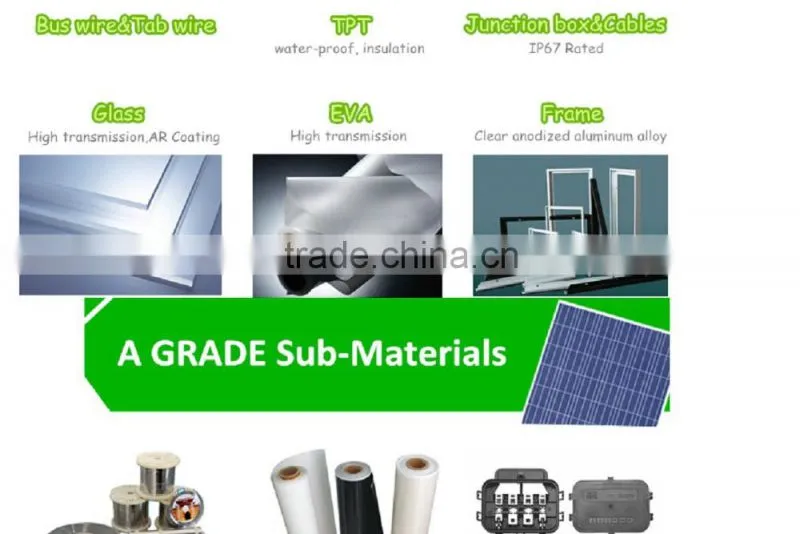

RISUN Solar Panel/Solar Module Material

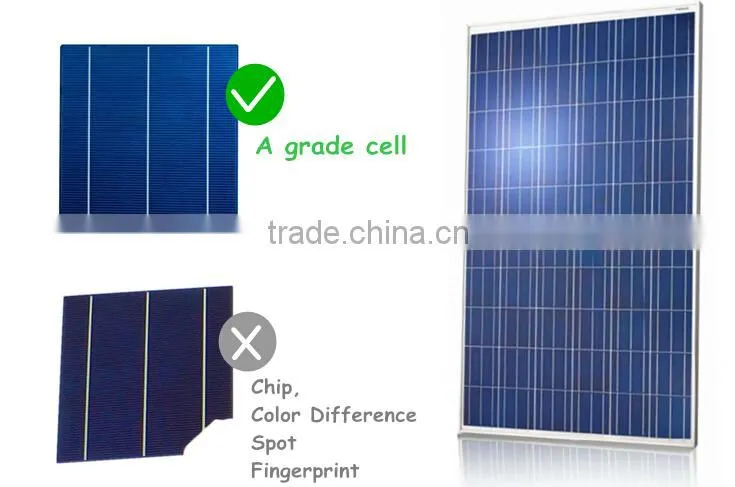

Why choose RISUN Solar Panel/Solar Module

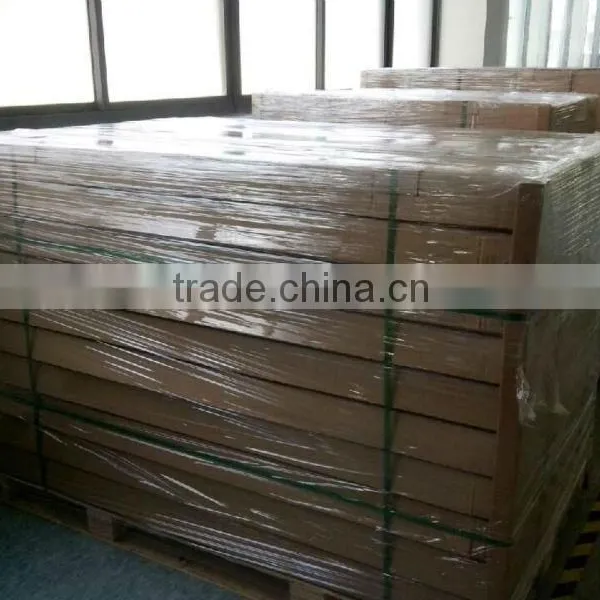

RISUN Solar Panel/Solar Module Factory & Packing Pictures

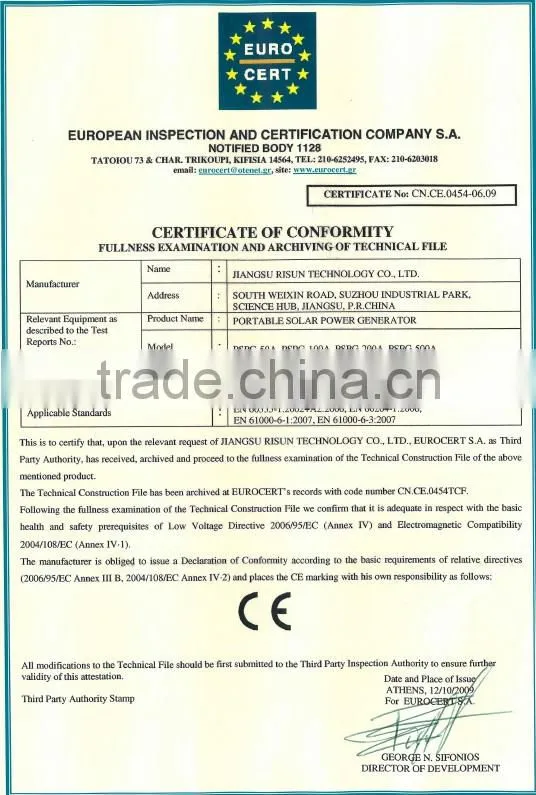

RISUN Solar Panel/Solar module CE TUV ISO Certificate
RISUN Solar Panel/Solar Module Exhibition Show Pictures
RISUN Solar Panel/Solar Module Specifications
| Module | 150W poly solar panel Type (48 Series) | |
| Encapsulation | Glass/EVA/Cells/EVA/TPT | |
| Parameters | RSM48-156P/150W | |
| Max power | Pm(W) | 150 |
Tolerance |
+/-3% | |
| Open circuit voltage | Voc(V) | 29.2 |
| Short circuit current | Isc(A) | 7.61 |
| Max. power voltage | Vmp(V) | 23.1 |
| Max. power current | Imp(A) | 6.53 |
| Dimensions | (L*W*H) | 1326x990x40mm |
| Net Weight | (kg) | 14.5 |
| Max. system voltage | (V) | 1000VDC |
| Operate Temp. Scope | -40/+85'C | |
| Resistance | 227g steel ball fall down from 1m height and 120m/s wind | |
| Warranty | Pm is no less 90% in 10 years and no less 80% in 25 years | |
| STC | (Standard Test Condition: 1000W/m2, AM1.5, and 25'C) |
Things you may care:
1. What is the brand of this 150W poly photovoltaic Solar panel?
RISUN, we are the manufacturer of this panel, OEM service is available, as well as wholesale trades.
2. About the glass we use for the front of the panel:
---3.2mm tempered glass , light transmittance up to 95%.
3. Does it meet Europe Standards for Solar Energy ?
This is TUV approval products, all producing procedure strictly accords with TUV&UL.
4. What is the Efficiency level ?
--- Between 16-18.9% for solar cells.
5. What's the nominal Voltage?
18V. So it can charge 12V battery. If you need 36V to charge 24V battery, just loose the cable from the solar panel and connect them in series. If you're not sure what to proceed, just contact us.
6. How to make the payment?
20% advanced in deposit by T/T or L/C, the rest payed after receiving B/L copy.
7. How long is the shipping time?
5-15 days after receiving deposit by the first available vessel to your country.
Solar panel Shipping:
Our trustworthy promises:
a.Strict selection of appearance and electric performance before encapsulation
b.Excellent effect at low light level
c.High transparent tempered glass
d.High quality EVA and back film
e.Anodic oxidized aluminum frame and waterproof junction box
f.Unique process making panels nice-looking , rugged weather-resistant,
g. A leak hole design against seeped icing and frame distortion
h. Super esay to install
Sincerely hope to find a way to cooperate with you. If you have any questions, pls
do not hesitate to contact us at skype:
