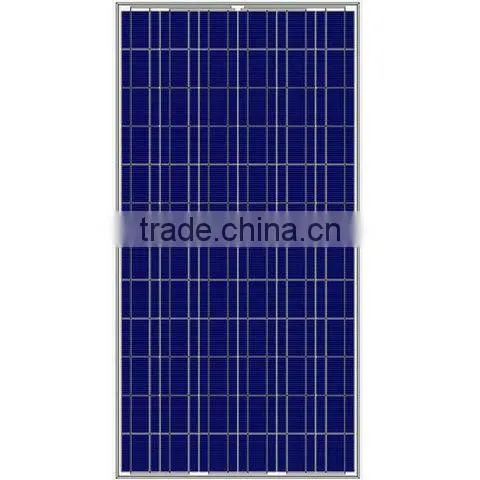

180W Poly Solar Module
US$ 0.48 - 0.65
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
RISUN
Model Number:
RSM48-156P/180W
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
RISUN
Model Number
RSM48-156P/180W
Material
Polycrystalline Silicon
Size
1326*990*40mm
Number of Cells
48
Max. Power
180w
Specifications
180W poly Solar Module-Tolerance 3%
-3 Bus Bar Configuration
-Plug/Play Connectors
-High Transmission,Low Iron Tempered
Solar Module Specifications
POLY 150W—180W
| Module | Type (36 Series) | |||||
| Encapsulation | Glass/EVA/Cells/EVA/TPT | |||||
| Parameters | RSM48-156M/150W | RSM48-156M/160W | RSM48-156M/170W | RSM48-156M/180W | ||
| Max power | Pm(W) | 150W | 160W | 170W | 180W | |
Tolerance |
+/-3% | |||||
| Open circuit voltage | Voc(V) | 29.2 | 29.3 | 29.4 | 29.5 | |
| Short circuit current | Isc(A) | 7.61 | 7.66 | 57.89 | 7.95 | |
| Max. power voltage | Vmp(V) | 23.1 | 23.1 | 23.4 | 23.5 | |
| Max. power current | Imp(A) | 6.53 | 6.96 | 7.28 | 7.66 | |
| Dimensions | (L*W*H) | 1326x990x40mm | ||||
| Net Weight | (kg) | 7.5 | ||||
| Max. system voltage | (V) | 1000VDC | ||||
| Operate Temp. Scope | -40/+85'C | |||||
| Resistance | 227g steel ball fall down from 1m height and 120m/s wind | |||||
| Warranty | Pm is no less 90% in 10 years and no less 80% in 25 years | |||||
| STC | (Standard Test Condition: 1000W/m2, AM1.5, and 25'C) | |||||
