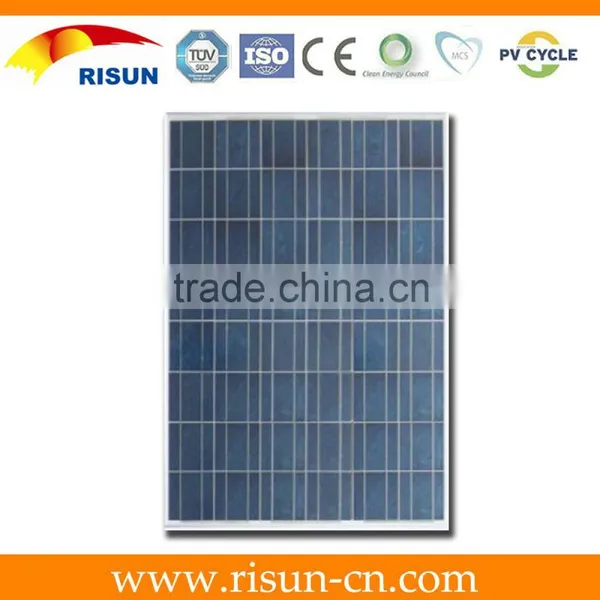

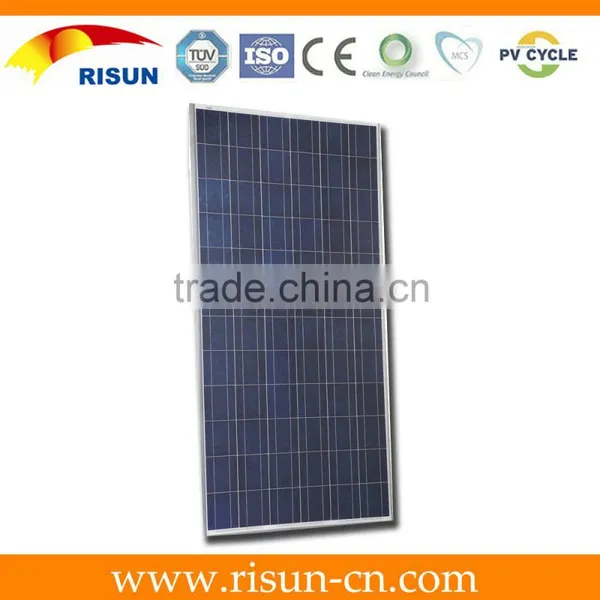

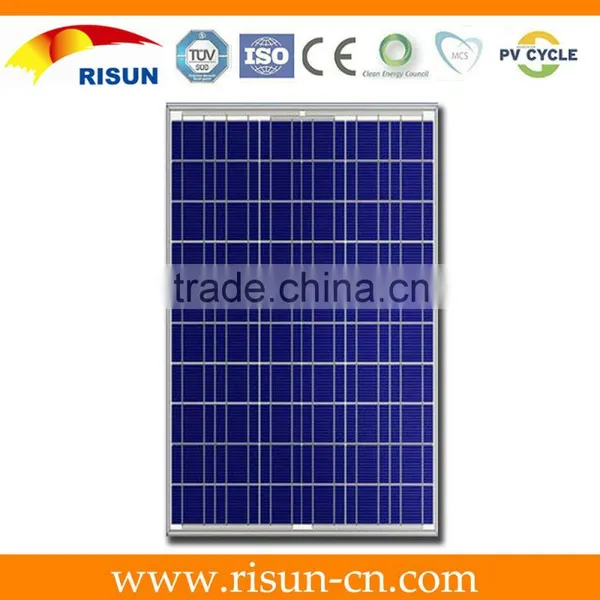

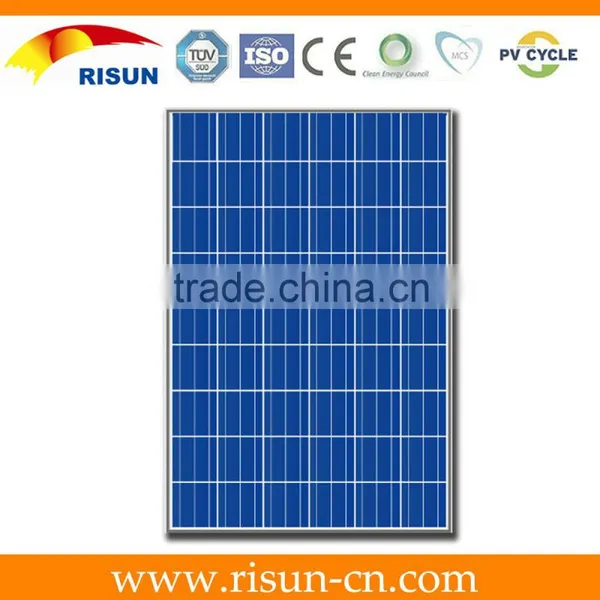

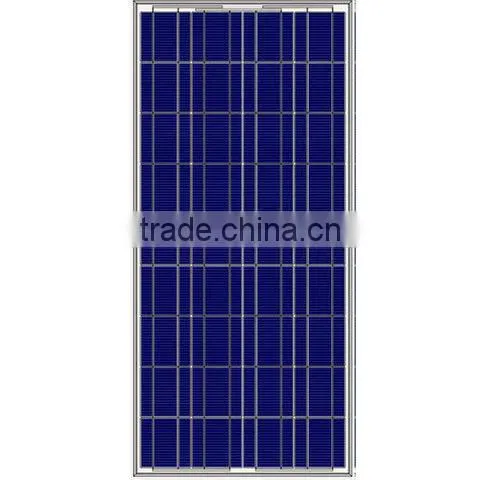

Price per watt 150W Poly Solar Panel
1. Reliability with guaranteed +/-3% output power tolerance.
2. High conversion efficiency, excellent performance in weak light.
3. High transmission low-iron tempered glass.
4. Rugged design to withstand high wind pressure and snow load, and extreme temperature variations.
5. Rigorous quality control meeting the highest international standards ISO9001 quality management system.
Solar Panel Recommended Applications:
1. Residential roof top systems
2. On-grid utility systems
3. commercial or industrial systems
Specifications
Certificates: TUV IEC, MCS (UK), CEC (Australia), Solar Product Certification (CQC), CE (SGS).
150W Poly Solar Panel ELECTRICAL CHARACTERISTICS | |
Model |
RSM36-156P/150W |
Maximum power (Pmax) |
150W |
Voltage at max. power (Vmp) |
17.6V |
Current at max. power (Imp) |
7.39A |
Open circuit voltage (Voc) |
21.9V |
Short circuit current (Isc) |
8.12A |
Temperature coefficient of Isc |
(0.065±0.015)%/oC |
Temperature coefficient of Voc |
-(160±20)mV/oC |
Temperature coefficient of power |
-(0.45±0.05)%/oC |
Operating temperature |
-40/+85oC |
Package | |
Package |
Carton,pallet |
Warranty |
Pmax is not less than 90% in 10 years and 80% in 25 years. |
MECHANICAL CHARACTERISTICS | |
Cell size (mm) |
156x156 polycrystalline solar cells |
Cell array |
as requirment. |
Dimensions (mm) |
1488*676*35 |
Weight(Kg) |
12.00 |
Frame |
Clear anodized aluminum alloy type universal frame; |
Construction |
Front: High-transmission 3.2mm tempered glass; Back: Black Polyester; Encapsulant: EVA Junction Box: pass TUV Output cable: 900mm |

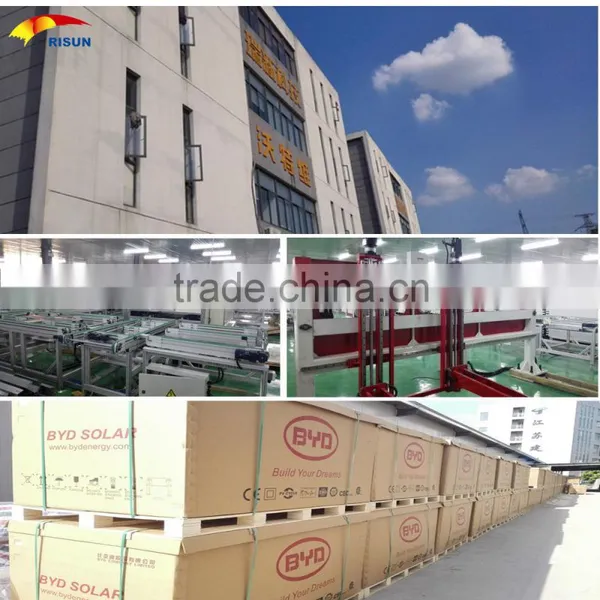

Risun Solar Panel Packing Photo Show
Risun Solar Panel Certifications Picture Show
Risun Solar Panel Exhibition Show
Why Choosing RISUN Solar Panel
1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of solar modules ranging from 3w to 300w with CEC, TUV, and CE approval, offering the full spectrum sizes,solar panels are as efficient as other competitors, but far cheaper-without skimping on quality.
APPLICATIONS OF SOLAR PANEL:
1: Anodized Alu Frame
2: Tempered Glass
3: EVA
4: Solar cell
5: EVA
6: Backsheet
7: J-box
payment Safety
Payment term: 20% advanced as deposit by T/T or L/C, the rest payment paying after received B/L copy.
shipping time and package safety
Shipping date: 5-15 days after we received deposit by the first available vessel to your country.
We will do our best to take care of you and if you have any questions please do not hesitate and feel free to contact us 86-13806207509.
