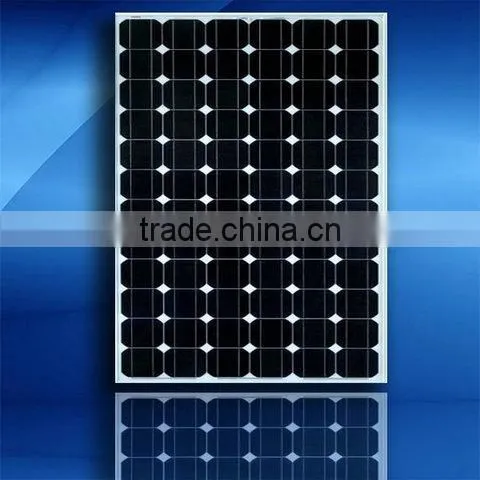

1.60W Solar Panel
2.High efficiency Solar Panel
3.TUV, IEC, MCS, UL certificate
4.Good Delivery time,Service
| NO. | TYPE | PW60M-36 | |||
| 1 | Peak Power(Pm) | 60W | |||
| 2 | Power Tolerance | ±3% | |||
| 3 | Open circuit Voltatge(VOC) | 21.62V±0.5 | |||
| 4 | Short Circuit Current(ISC) | 3.79A±0.2 | |||
| 5 | Maximum Power Voltage(Vmp) | 17.65V±0.5 | |||
| 6 | Maximum Power Current(Imp) | 3.4A±0.2
|
|||
| 7 | Size of Module | 810×540×35mm | |||
| 8 | Cell Type | Monocrystalline | |||
| 9 | Quantity and Dimession of Cell | 36pcs,125×125mm | |||
| 10 | Glass type and Thickness | Low iron tempered 3.2mm | |||
| 11 | Weight | about 8.0kg | |||
Things you may care:
1. What is the brand of this photovoltaic Solar panel?
RISUN, we are the manufacturer of this panel, OEM service is available, as well as wholesale trade.
2. About the glass we use for the front of the panel:
---3.2mm tempered glass , light transmittance up to 95%.
3. Does it meet Europe Standards for Solar Energy ?
This is TUV approval products, all producing procedure strictly accords with TUV&UL.
4. What is the Efficiency level ?
--- Between 16-18.9% for solar cells.
5. Our trustworthy promises:
a.Strict selection of appearance and electric performance before encapsulation
b.Excellent effect at low light level
c.High transparent tempered glass
d.High quality EVA and back film
e.Anodic oxidized aluminum frame and waterproof junction box
f.Unique process making panels nice-looking , rugged weather-resistant,
g. A leak hole design against seeped icing and frame distortion
h. Super esay to install
QUALITY WARRANTY AND SAFETY
90%/12years, 80%/25years
We have obtained the certification of
ISO9001:2000(Quality Management System)
and TUV,CE,UL,etc. We operate strictly
according to quality management system
and management procedures.
RECOMMENDED APPLICATION
Building Integrated Photovoltaic
Residential Rooftop System
Tracking System
On-Grid and Off-Grid Utility System
On-Grid and Off-Grid Commercial System
FEATURES
Strict selection of appearance and electric performance before encapsulation
Excellent effect at low light level
High transparent tempered glass
High quality EVA and back film,
anodic oxidized aluminum frame and
waterproof junction box
Unique process making panels
nice-looking , rugged weather-resistant,
and easy to install
A leak hole design against seeped icing
and frame distortion
QUALITY WARRANTY AND SAFETY
90%/12years, 80%/25years
We have obtained the certification of
ISO9001:2000(Quality Management System)
and TUV,CE,UL,etc. We operate strictly
according to quality management system
and management procedures.
RECOMMENDED APPLICATION
Building Integrated Photovoltaic
Residential Rooftop System
Tracking System
On-Grid and Off-Grid Utility System
On-Grid and Off-Grid Commercial System
