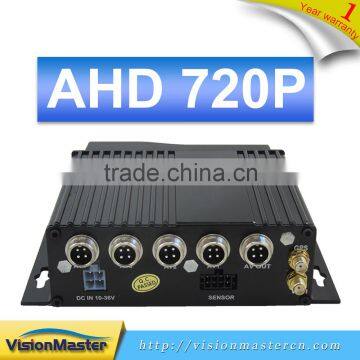

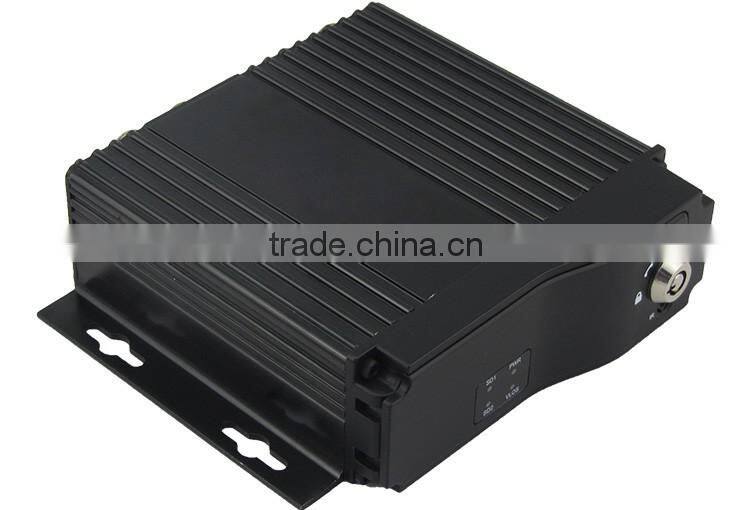

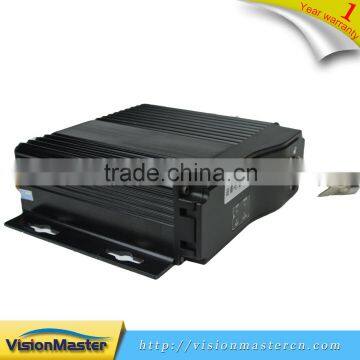

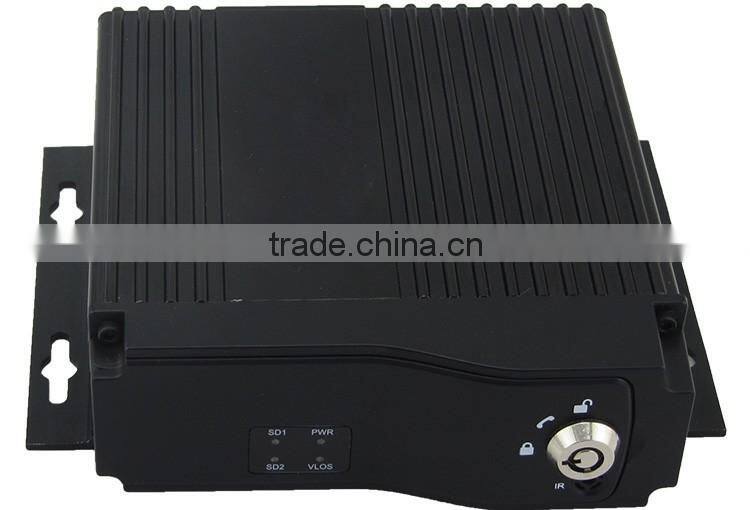

4 channel 128GB Sd Card bus DVR with 720p ahd camera input .
VISIONMASTER PRODUCTS' Advantages :
1. Power failure protection.
2. Wide voltage (6-48V, Seldom other companies can achieve this function, other companies only can achieve 8-36V).
3. OTA function support. (Upgrating DVR software automatically, better after-sales service for you.
4. A SMS can get DVR situation feedback from DVR
5. Industrial level design. (More professional and better quality.)
6. Modular design. (To prevent a module error while affecting the entire product.)
7. Encrypt video format. (To prevent data loss)
8. Current and voltage over protection.
9. Wide working temperature. (-25°C- +75°C).
10. Data redundancy technology. (To prevent data loss)
11. Excellent vibration protection.
Highlights for VM-1504-HD Series:
1. Cost effective: With low price to enjoy hig definition experience;
2. Compatibility: Compatible with both common analogue cameras and analogue high definition cameras;
3. Compact Size: 112(W) x36(H) x138(D) mm, Weight: 360g

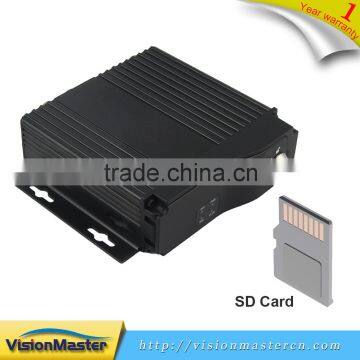

4. Dual SD cards supported: Maximum supports two SD cards 128GB each.
Parameters:
| Item | Parameter | |
| Model | VM-1504-HD | |
| Os | Linux | |
| Language | chinese/English/Customized | |
| Video compression | H.264 | |
| GUI | Setup system parameters with the remote control | |
| Video record system | video input | 4CH 720P AHD input,aviation connector |
| video output | 1 CVBS,Aviation,Support 1CH Full Screen,4CH Screen | |
| preview | Support 1 channel and 4 channels preview.Support Manual/Alarm Trigger fullscreen preview | |
| resolution | 720P/D1/HD1/CIF MAX:4 channels of 720P and 4 channels of D1 | |
| video quality | 1-4 levels ,1 is the highest level | |
| viedo standard | P/N/CIF/HD1/D1/720P | |
| record mode | auto recording after power on/ Timed recording/alarm trigger recording/ manual recording | |
| Audio | audio input | 4ch aviation plug |
| audio output | 1ch aviation plug | |
| Alarm | alarm input | 4ch Alarm Input, kinds of alarm linkage support |
| alarm output | 1ch Alarm Output | |
| Multi-funtion | Gps /3G/4G/WIFI/G-sensor | |
| Storge capacity | dual SD Card,each max 128GB SD Card loop recording | |
| Video palyback | Max support 4CH Replay /Stop/Fast/Slow at same time | |
| support forward and backward play at the speed of: x 2,x4,x8,x16 | ||
| Voltage & Power | voltage Input | DC:+10V ~ +36V |
| voltage output | +12V/2.5A; +5V/2.5A | |
| power consumption | Normal working < 5w | |
| Working Environment | temperature:-20℃ to +70℃////humidity:20% to 80% | |
| Security | User/Admin 2 Level Different Password | |
| Size/ Net Weight | 112(W) x36(H) x138(D) mm////360g | |
NEW PRODUCT 720P AHD ( ANALOG HD DEFINITION ) MOBILE DVR

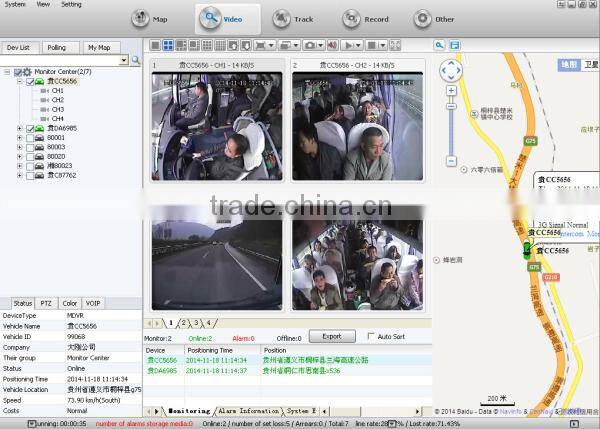

Free PC CMSV6 Remote Client software:

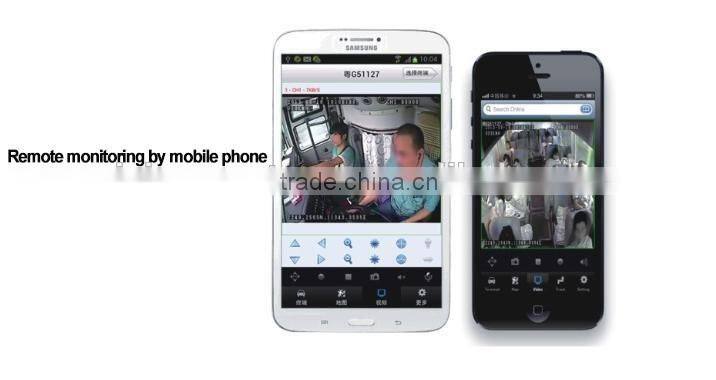

Free Phone CMSV6 Remote Client software:
Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.

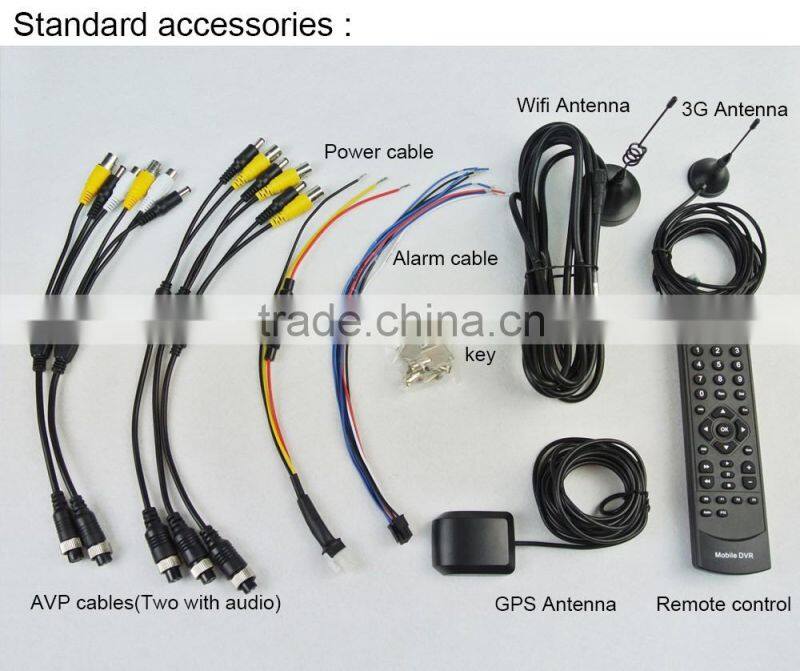

VM-1504GWT-HD Standard Packing List:
Neutral Package:
We support various mode of transportation for shipment :
By sea:15~40 days arrive
By air :2~5 days arrive
By express:-~7 days arrive
By air -mail :15~70 days arrive

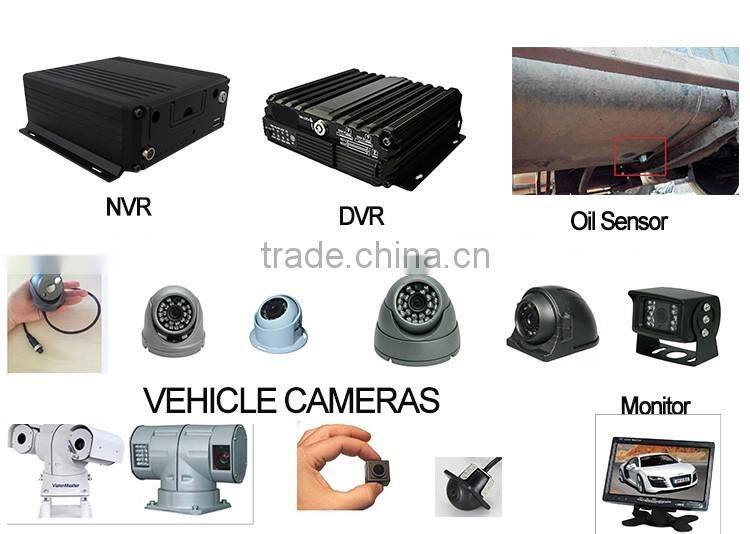

More Products for you to Choose:

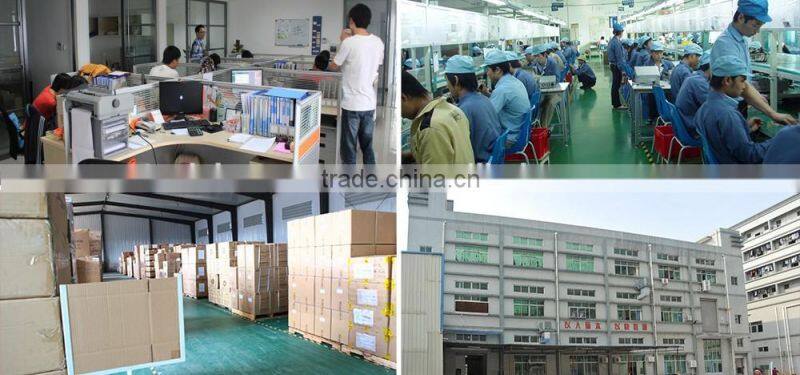

Visionmaster Industrial Co., Ltd. is a leading video surveillance solution provider with global perspective. Before we got this new company name(Visionmaster), we have been in the field for 8years. Our team has been steadily growing from the initial 3 founders up to more than 100 employees. Through our dedication to customer-centric innovation and strong partnerships, we are creating maximum value for international distributors, installers by committing end user competitive mobile surveillance and DVR solutions. Our solutions have been deployed worldwide among various applications including public transportation, school bus, law enforcement, private fleet, logistics management, railway and metro, mobile media operation, etc. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success. Please do not hesitate to pick up the phone or send us an email to find out how.
Q:When Device issue appear,you are confused on how to solve it.
A:Check Device Item No & Firmware Version,sent back to us with detail description of issue.Our
Technical Team will handle it.More detail you described,easier for us to solve it quickly
Q: When SD card and HDD records, How is the record coverage?
A: SD card and HDD will record circularly for each other. When they are full, they will delete the
original video records respectively.
Q: Can’t playback files on PC successfully?
A: Possible reason is as follows:
1.Have never chosen a record file or document path; please choose the path that records file first
before playback.
