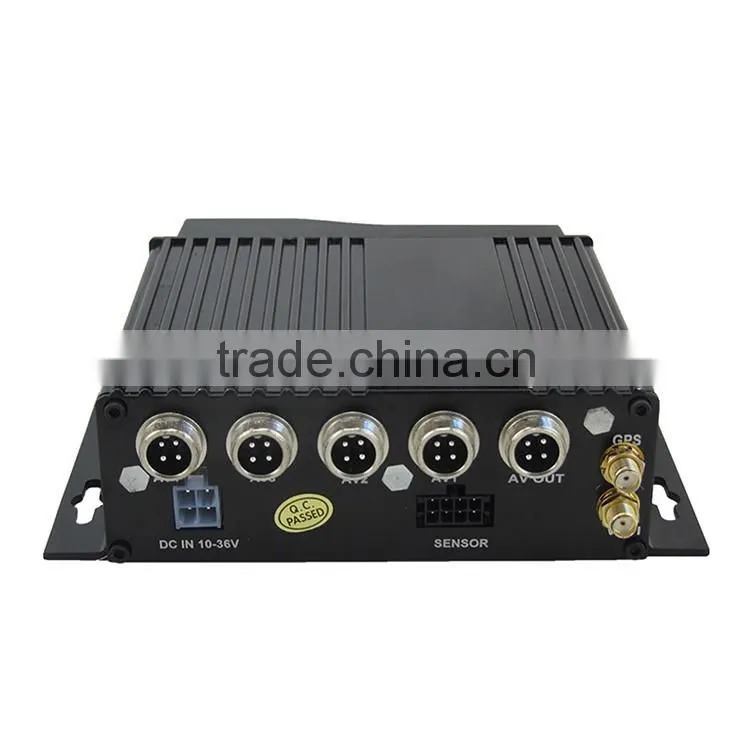

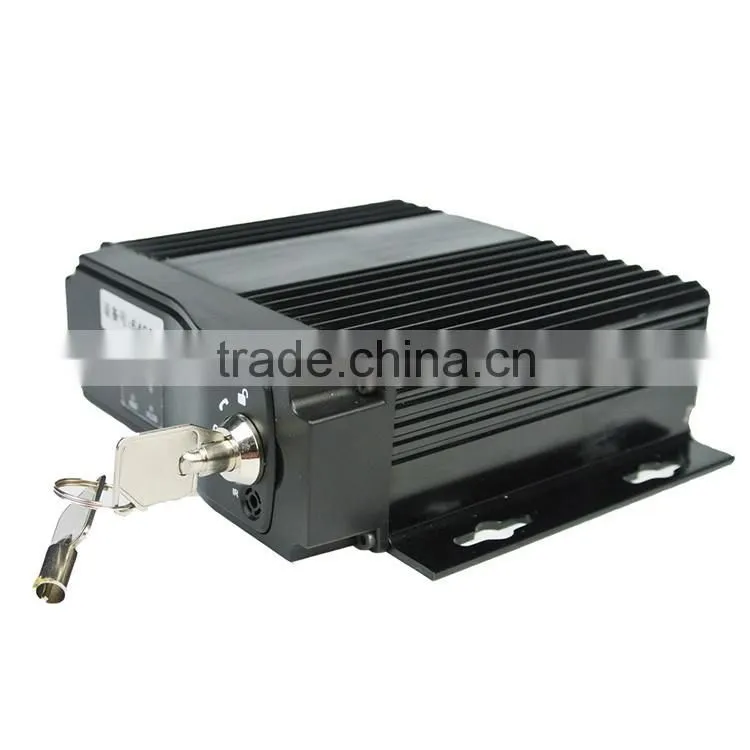

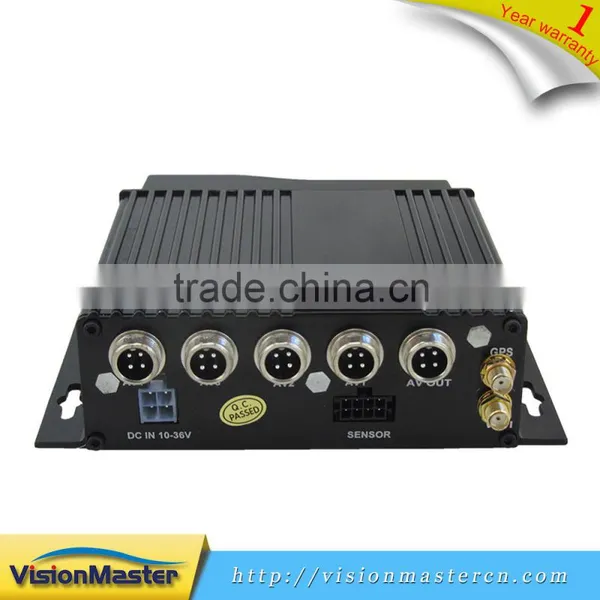

Professional Vehicle Monitoring 4CH Sd Card Mobile DVR With Free Client Software
VM-1504-HD Series is Mega Pixels HD Multi-Functional Mobile DVR .H.264 compression mode ,supports 4ch realtime 720P Mega Pixels AHD input and Analog satandard defition camera input; Exclusive pre-allocate DVR Special File system Technology,Solving repeatedly wipe cause file fragmentation, solving SD card file system collapse data loss and thus can not find SD card and file garbled,ensuring the integrity of the data .
Main Features:
1. Power failure protection.
2. Wide voltage (8-36V).
3. OTA function support. (Upgrating DVR software automatically, better after-sales service for you.
4. A SMS can get DVR situation feedback from DVR
5. Industrial level design. (More professional and better quality.)
6. Modular design. (To prevent a module error while affecting the entire product.)
7. Encrypt video format. (To prevent data loss)
8. Current and voltage over protection.
9. Wide working temperature. (-25°C- +75°C).
10. Data redundancy technology. (To prevent data loss)
11. Excellent vibration protection.
| Item | Parameter | |
| OS | Linux | |
| Language | Chinese/English/Customized | |
| Video Compression | H.264 | |
| OSD | Overlays information such as date time and vehicle ID | |
| Graphical User Interface | Setup system parameters with the remote control. | |
| Video Record System | Video Input | 4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω |
| Preview | Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview | |
| Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 | |
| Video Quality | 1-4 levels, 1 is the highest level. | |
| Video Standard | P/N | |
| Audio | Audio Input | 4CH ,Aviation Plug |
| Audio Output | 1CH,Aviation Plug | |
| Alarm Input | 3Ch Alarm Input, kinds of alarm linkage support | |
| Alarm Output | 1CH Alarm Output | |
| G-Sensor | Support G-sensor | |
| Storage | SD | Dual SD Card,each max 128GB SD Card loop recording |
| Video Playback | Video Search | Search By Record Time/Record Type etc |
| Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | |
| Support forward and backward playat the speed of: x 2,x4,x8,x16. | ||
| Voltage & Power | Power Management | Wide Voltage.Support Timed/Delay off |
| Voltage Input | DC:+10V ~ +36V | |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Security | Password | User/Admin 2 Level Different Password |
| others | Size | 112(W) x36(H) x138(D) mm |
| Net Weight | 360g | |
The client software :CMS/RMS
Interface on comoputer
Q:If using 3G ,what should we concern?
A:1)Choose inside wireless module WCDMA,EVDO,TD-SCDMA, relative module setting is different then SIM
Card is different, please make sure the module is corresponding with the SIM Card.
2)If Server IP & Port set correct,if 3G signal strong for dialing;3G dialing successfully or not;
3)Check 3G Antenna connection,dialing will be failed if 3G signal too weak;
4)Check SIM Card 3G Flow
Q:Device working but can not see Vehicle and video on client software
A: 1)Check if Center Server running and device Number if using;
2)Check Server IP and Port parameter setting;
3)Check is using 3G or WIFI for connecting, if 3G check the 3G Model WCDMA or EVDO and related SIM
card,3G antenna connect normally/APN setting/Center NO setting;
If it still can not work,please offer the most detailed information to us for technical support
Q: With GPS but no GPS Information
A:1)Check if GPS module exist;
2)Check GPS Antenna connection,suggest install on the outside place with strong signal;
3)If testing in office, suggest put GPS Antenna out of window;
4)If working environment not good will related to no GPS Information or wrong information;
