Home > Products > Terminal Block > PCB Spring Terminal Blocks Pitch:5.08mm
PCB Spring Terminal Blocks Pitch:5.08mm
- 100000 Piece / Pieces per Month
- SHANGHAI/NING BO
- T/T Credit Card
- Custom-fabricated battery bus bars electrically inter-connect a range of battery cells
- OEM ODM focused rigid copper busbar for yacht
- Ballast-to-luminaire disconnects, Push-In Type
- Push Wire Cable Connector Terminal Block For LED Light
- Compact Splicing Connector For LED Light
- Electrical Splitter Universal Cable Connector For LED Light
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Spring Terminal Blocks Pitch:5.08mm | Model Number: | Spring Terminal Blocks Pitch:5.08mm |
Type: | Other, Spring Terminal Blocks Pitch:5.08mm |
Product Description
Specifications
Spring Terminal Blocks Pitch:5.08mmHigh Quality,reasonable price
CE, ROHS, VDE, SGS certificates
High quality,fast delivery
PCB Spring Terminal Blocks Pitch: 5.08mm
Advantage
1.We are professional supplier.
2.We work with dozens of factories to ensure competitive prices.
3.Inspections:100%test before delivery.
4.Free samples for your test
5.OEM/ODM are acceptable
6.Fast delivery
7.Door to door service
8.trail order&small order are acceptable
Detailed Product Description
Product | Spring Terminal Blocks Pitch:5.08mm | |
Model Number | Spring Terminal Blocks Pitch:5.08mm | |
Pitch | Spring Terminal Blocks Pitch:5.08mm | |
Certificates | CE, ROHS, VDE, SGS | |
Origin Country | Zhejiang, China (Mainland) | |
Brand Name | OEM | |
Color | Green | |
Material | ||
Wire guard | Stainless steel | |
Pin Header | Brass sn plated | |
Housing: | PA66 UL94V-0 | |
Electrical | ||
Standard: | UL | IEC |
Rated voltage: | 300V | 250V |
Rated current: | 10A | 15A |
Wire range | 22~16AWG 1.5MM2 | |
Contact Resistance: | 20MΩ | |
Insulation resistance: | 500MΩ/DC500V | |
Withstanding voltage : | AC 2000v/ 1 Min | |
Mechanical | ||
Temp. Range: | -40°C~+105 °C | |
Max Soldering | +250 °C 5 sec | |
Strip length | 9~10mm | |
MOQ | Most product not have MOQ, the common connectors are in stock. | |
Inspection | 100% tested before delevery | |
Supply Ability | 100000 Piece/Pieces per Week | |
Payment Terms | L/C,T/T,Western Union,paypay | |
Port | SHANGHAI/NING BO | |
Packaging Details | carton,opp bagg | |
Delivery Detail | 7~15days after payments |

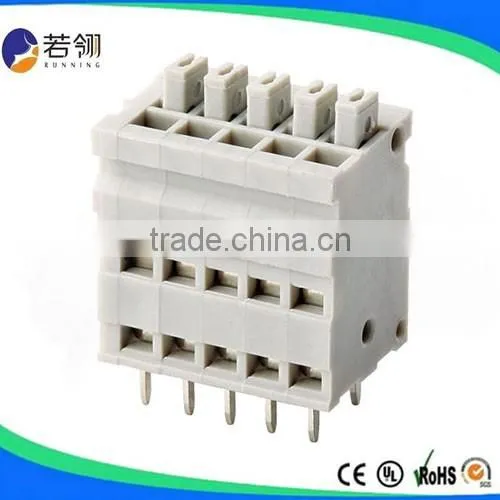

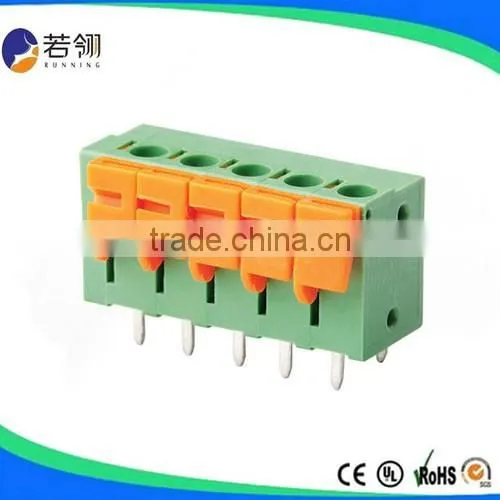

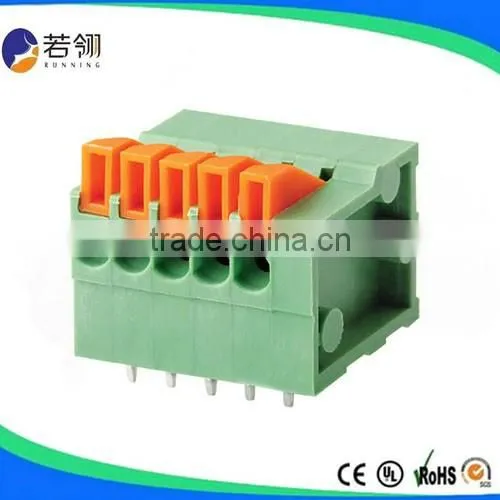

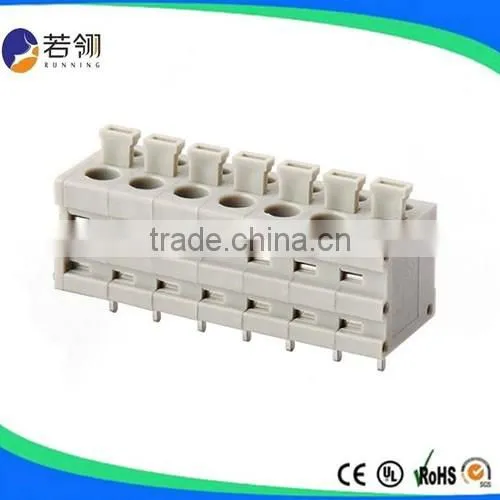

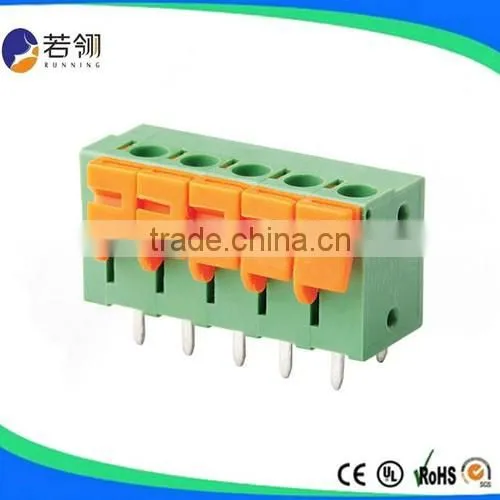

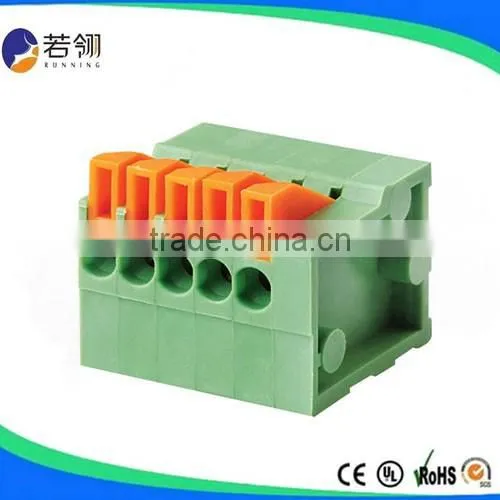

PRODUCT PICTURE

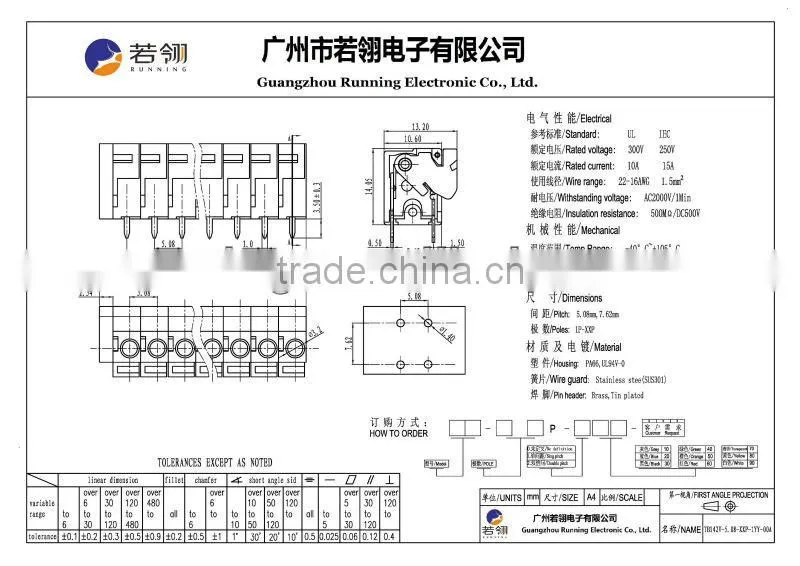

PRODUCT DRAWING
Factory Show
