Specifications
Grey PCB SpingTerminal Block Pitch 3.5mmHigh Quality,reasonable price
CE, ROHS, VDE, SGS certificates
Door to door service
Grey PCB Sping Connector Terminal Block Pitch 3.5mm
Detailed Product Description
| Product | Grey PCB SpingTerminal Block | |
| Model Number | TB250-3.5 | |
| Pitch | 3.5mm | |
| Certificates | CE, ROHS, VDE, SGS | |
| Origin Country | Zhejiang, China (Mainland) | |
| Brand Name | OEM | |
| Color | Grey | |
| Material | ||
| Pin Header | Phosphor bronze, sn plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 300V | 450V |
| Rated current: | 7A | 8A |
| Wire range | 26~16AWG 1.5MM2 | |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC2000v/ 1 Min | |
| Mechanical | ||
| Temp. Range: | -40°C~+105 °C | |
| Max Soldering | +250 °C 5 sec | |
| Strip length | 9~10mm | |
| MOQ | Most product not have MOQ, the common connectors are in stock. | |
| Inspection | 100% tested before delevery | |
| Supply Ability | 100000 Piece/Pieces per Week | |
| Delivery Detail | 7~15days after payments | |

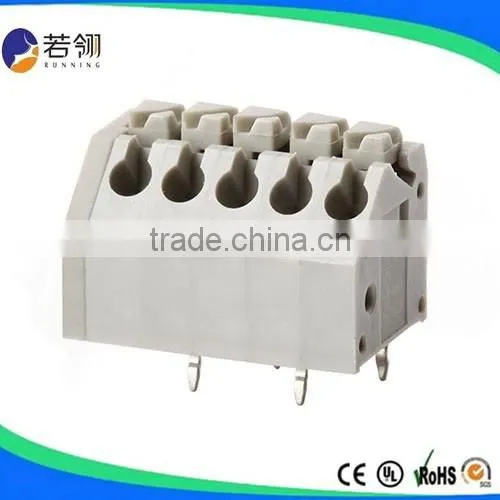

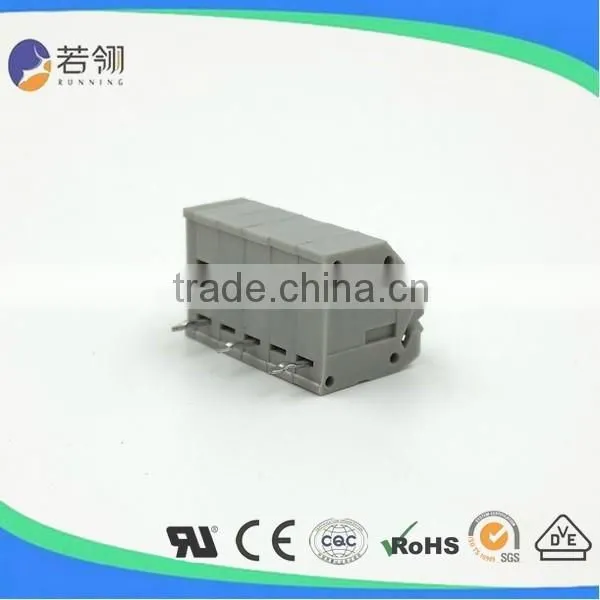

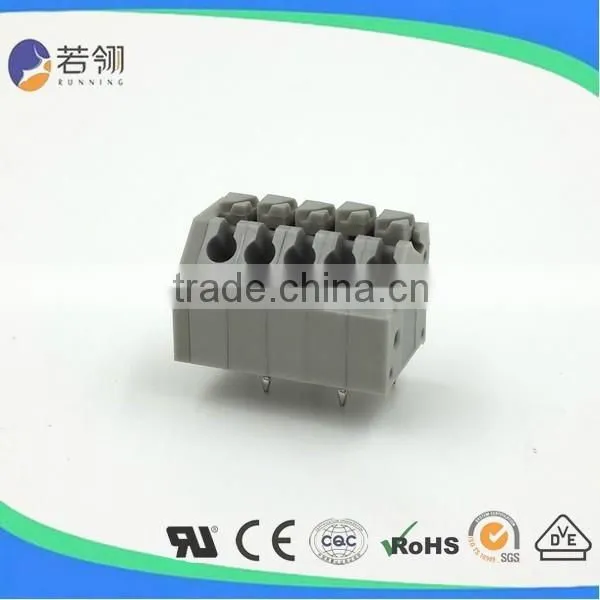

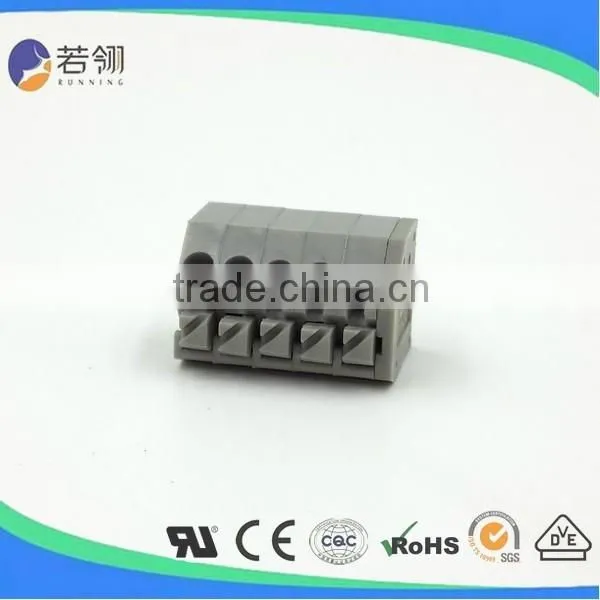

Product Picture
Product Drawing
Quality Control
2. By Air or by Sea for mass products, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for mass products.
1.We are Alibaba 3 years Gold Supplier.
2. We are a factory manufacturing electronic components,best production capability ,best quality control, Best Service .
3.100% QC inspection Before Shippment.
4. CE/UL/FCC listed,competitve price.
5.Door to Door service.
6.Free Samples.
|
Guangzhou Running Electronic Co., Ltd. is a professional supplier of electronic components, such as
pluggable/barrier/screw/feed through terminal blocks, solderless breadboards, pin header, etc. With high quality
products, excellent service and good reputation, we have own great support from customers around the world.
Thus, our company scale has expanded. At present, we export products to USA, Brazil, Italy,etc. We have
established longterm, stable and good business relationships with many manufacturers and wholesalers around the
world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual
benefits. Please feel free to contact us for more details.
|
