Specifications
Spring Terminal Block Pitch 2.54mmCE, ROHS, VDE, SGS certificates
Door to door service
Fast Delivery
High Quality
PCB Spring Terminal Block Pitch : 2.54mm
Advantage
1. We are professional supplier. |
2. We work with dozens of factories to ensure competitive price |
3. Inspections:100% test before delivery. |
4. Free samples for your test |
| 5. OEM and ODM are acceptable |
| 6. Fast door to door delivery service |
| 7. Trail order and small order are acceptable |
Detailed Product Description
| Product | Spring Terminal Block Pitch : 2.54mm | |
| Pitch | Spring Terminal Block Pitch : 2.54mm | |
| Material | ||
| Wire guard | Stainless steel | |
| Pin header | Brass, Sn plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 150V | 130V |
| Rated current: | 2A | 6A |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC 1300v/ 1 Min | |
| Mechanical | ||
| Temp. Range: | -40°C~+105 °C | |
| Max Soldering | +250 °C for 5 sec. | |
| Strip length | 9~10mm | |

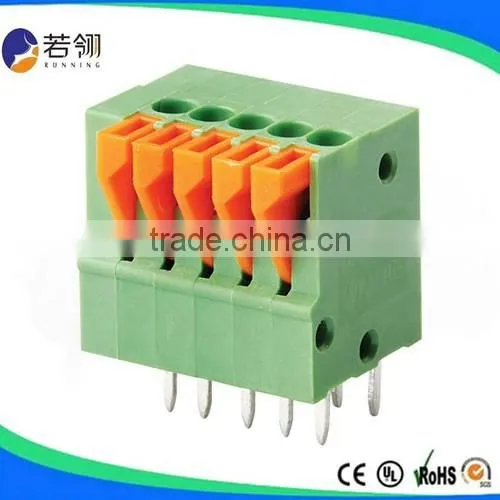

PRODUCT PICTURE
PRODUCT DRAWING
