Specifications
Stainless steel PCB Spring Terminal Block Pitch 5.0mmCE, ROHS, VDE, SGS certificates
Door to door delivery service
Stainless steel PCB Spring Terminal Block Pitch 5.0mm
Advantage
1. We are professional supplier. |
2. We work with dozens of factories to ensure competitive price |
3. Inspections:100% test before delivery. |
4. Free samples for your test |
| 5. OEM and ODM are acceptable |
| 6. Fast door to door delivery service |
| 7. Trail order and small order are acceptable |
Product Specification
| Pitch:5.0mm Spring Terminal Block Connectors |
| Material: |
| Wire guard:Stainless steel |
| Housing: PA66,UL94V-0 |
| Pin header:Brass,Sn plated |
| Electrical Characteristics: |
| Standard:UL IEC |
| Rated voltage:300V 250V |
Rated current:10A 15A |
| Contact Resistance: 20mΩ |
| Insulation resistance:500 mΩ/DC500V |
| Withstanding voltage:AC2000V/1Min |
| Free Sample |

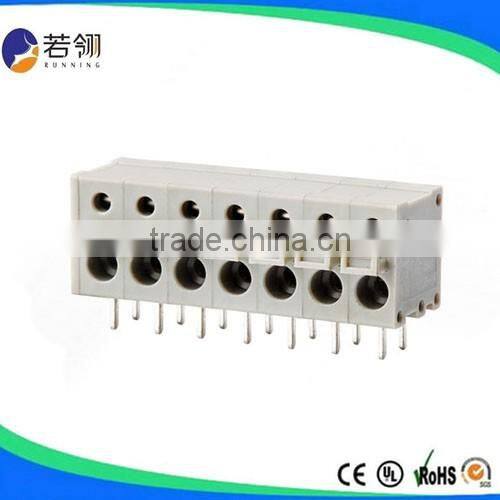

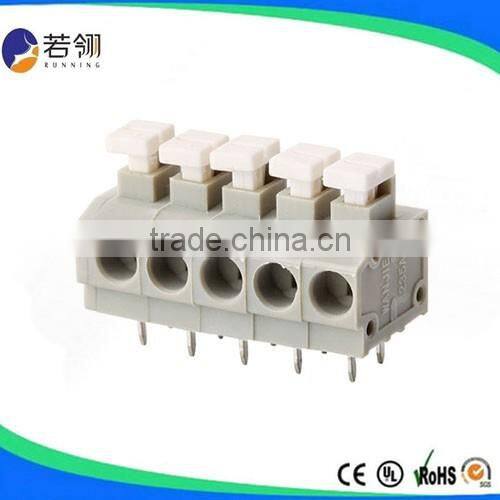

Product Pictures

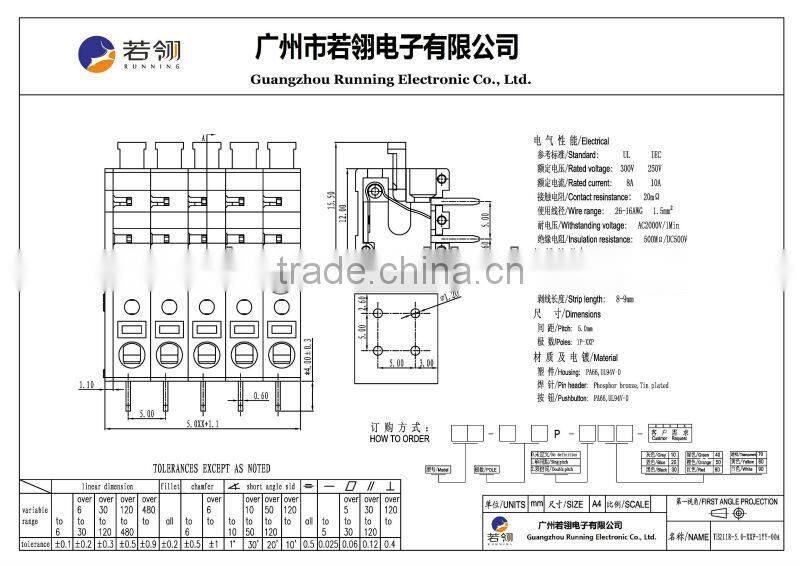

Product Technical Drawing
