UL PCB Screw Type Terminal Block Connector Pitch 5.0mm 10mm
Detailed Product Description
| Product | PCB Screw Terminal Block Pitch 5.0mm 10.0mm | |
| Pitch | 5.0/10.0mm | |
| Material | ||
| Screws | M3.0 steel Zn Plated | |
| Shrapnel | Phosphor bronze, Ni plated | |
| Pin header | Brass, Sn plated | |
| Housing: | PBT,UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 250V | 250V |
| Rated current: | 16A | 17.5A |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC 2000v/ 1 Min | |
| Wire Range | 22~14AWG 1.5MM2 | |
| Mechanical | ||
| Temp. Range: | -30°C~+120°C | |
| Strip Length: | 4.5~5mm | |
| Torque | 5.10kgf-cm/0.5Nm/4.43Lbin | |
| Max Soldering | +250 °C for 5 sec. | |

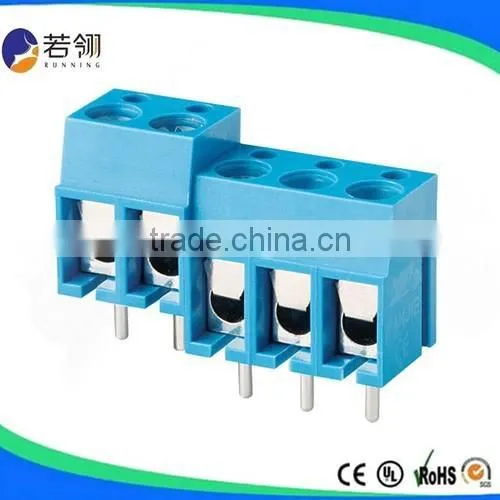

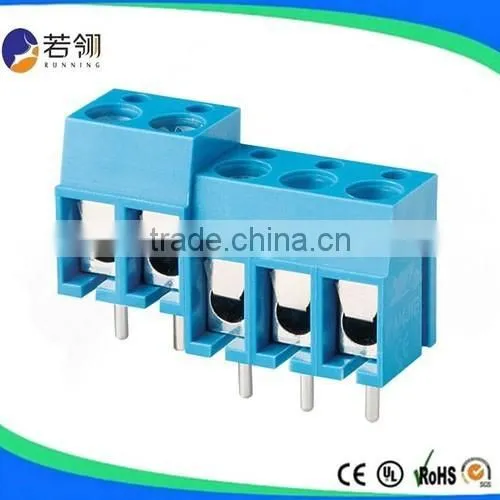

Product Picture

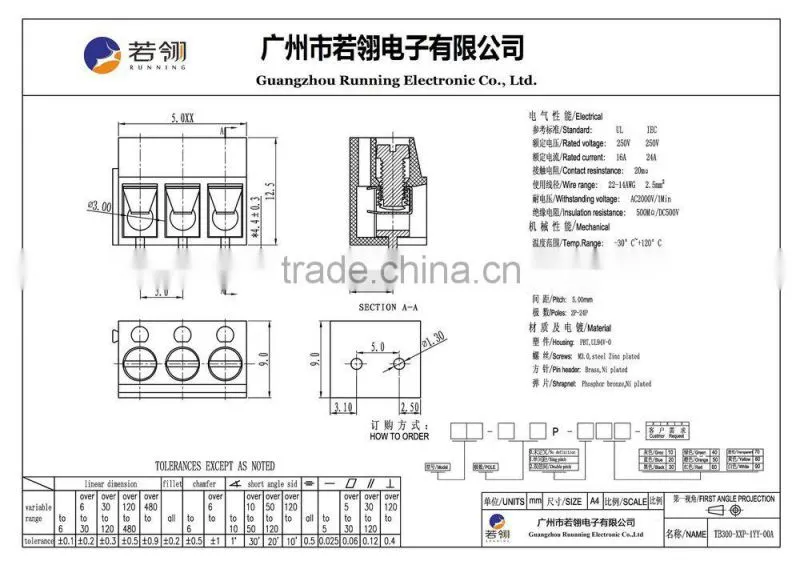

Product Drawing
Quality Control
2. By Air or by Sea for mass products;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for mass products.
1.We are Alibaba 3 years Gold Supplier.
2. We are a factory manufacturing electronic components,best production capability ,best quality control, Best Service .
3.100% QC inspection Before Shippment.
4. CE/UL/FCC listed,competitve price.
5.Door to Door service.
6.Free Samples.
|
pluggable/barrier/screw/feed through terminal blocks, solderless breadboards, pin header, etc. With highquality
products, excellent services and a good reputation, we have wongreat support from customers around the world.
Thus, our company scale has expanded. At present, we export products to the USA, Brazil, Italy,etc. We have
established longterm, stable and good business relationships with many manufacturers and wholesalers around the
world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual
benefits. Please feel free to contact us for more details.
|
