Specifications
5.0mm Female Terminal BlockHigh Quality,reasonable price
CE, ROHS, VDE, SGS certificates
Door to door service
5.0mm Female Terminal Block
Detailed Product Description
| Product | 5.0mm Female Terminal Block | |
| Model Number | TB2EDGKA | |
| Pitch | 5.0mm, 5.08mm | |
| Certificates | CE, ROHS, VDE, SGS | |
| Origin Country | Zhejiang, China (Mainland) | |
| Brand Name | OEM | |
| Color | Green | |
| Material | ||
| Pin Header | Phosphor bronze, sn plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 300V | 320V |
| Rated current: | 15A | 20A |
| Wire range | 28~14AWG 2.5MM2 | |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/DC500V | |
| Withstanding voltage : | AC2000v/ 1 Min | |
| Mechanical | ||
| Temp. Range: | -40°C~+105 °C | |
| Torque: | 0.5Nm(4.5lb.in) | |
| Strip length | 7~8mm | |
| MOQ | Normally MOQ is 1000pcb, but we also accept trial order. | |
| Inspection | 100% tested before delevery | |
| Supply Ability | 100000 Piece/Pieces per Week | |
| Delivery Detail | 7~15days after payments | |

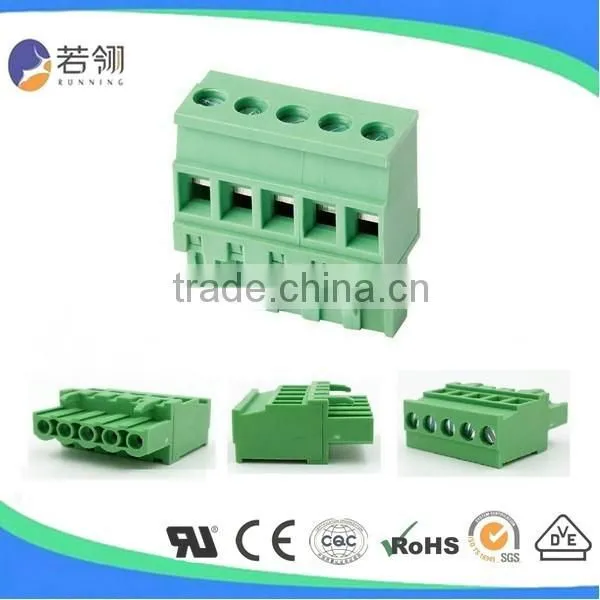

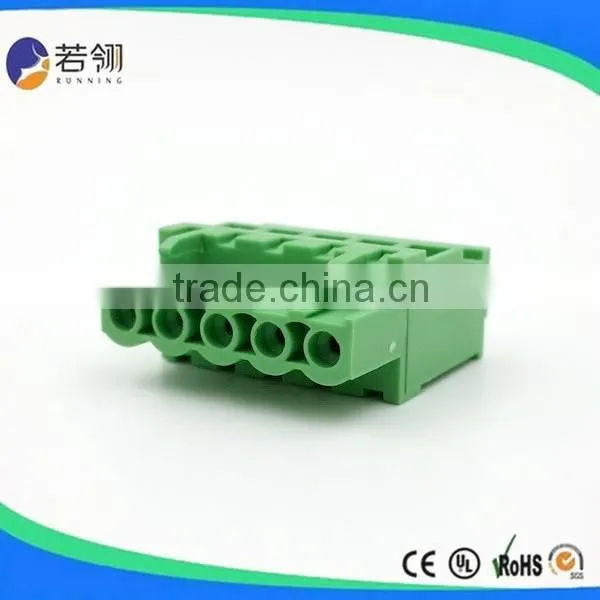

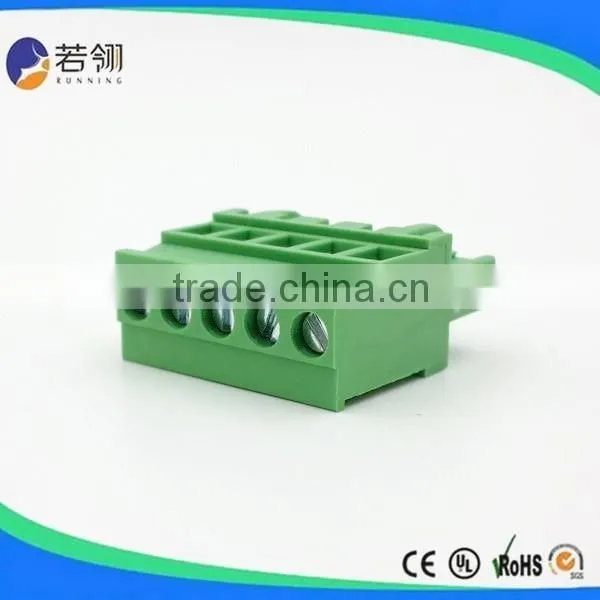

Product Picture

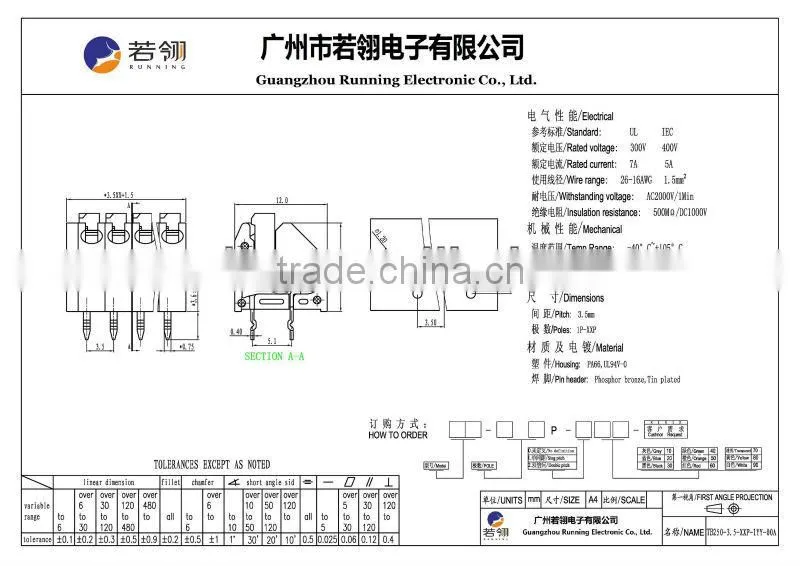

Product Drawing
