Home > Products > DIP SWITCH > SMT Dip Switch
SMT Dip Switch
USD $0.01 - $1
/ Piece
1000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- shanghai/ ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
- Taiwan genuine dial switch 90 degree angle toggle switch DSDA08LHGET high-temperature resistant piano key switch
- Taiwanese kE/YE toggle switch DSWB04LHGET DIP4 bit plug-in 4-bit toggle switch coding switch
- SAFRAN toggle Switch EATON Switch 8906K5340
- SAFRAN toggle Switch EATON Switch 8906K5318
- SAFRAN toggle Switch EATON Switch 8906K5898
- Safran 8502K17 toggle switch
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | OEM | Model Number: | DP06 |
Max. Current: | 100mA | Max. Voltage: | 50V |
Product Description
Specifications
fast deliveryce, rohs, sgs certificate
quick response
SMT Dip Switch
Features/Benefits
- Traditional full profile DIP switch
- Extended actuator for easy actuation
- Open bottom construction allows for solder washing without the need for tape seal
- RoHS coompliant
Typical Applications
- Address switch for industrial controls
- Logic switching for computers and peripherals
- Function controlling for numerous applications
Specification
- Mechanical
- Operation Force: 800g Max
- Stroke: 2.00mm
- Operation Temp.: -20oC~+70 oC
- Storage Temp.: -40oC~+85 oC
- Material
- Base: Engineering plastics, black
- Cover: Engineering plastics, Red/Blue
- Button: Engineering plastics, white
- Terminals: Alloy Copper, Gold plating
- Electrical
- Electrical Life: 2000 operation cycles per switch
- Non-switching Rating: 100mA 50VDC
- Switching Rating: 25mA 24VDC
- Contact Resistance: 50mΩ Max at initial : 100mΩ Max after life test
- Insulation Resistance: 100mΩ 50VDC
- Dieletric Strength: 500VAC/ 1 minute
- Capacitance: 5pF max
- Circuit: Single pole single throw
- Soldering and Cleaning Processes
- Keep all switch contacts in their "off" position for all operation
- Wave Soldering: Recommended Sodering Temp. at 260 oC max , 5 second
- Hand Sodering: use a sodering iron at 30 watts, controlled at 320 oC approximately 2 second while appling soder.
- Cleaning Process: Flux clean using force rinse, high agitation or triple bath cleaning Method. Freon TE or TF give excellent results, When vapor methods are used do not subject to solvents at temperature above 51oC
- PACKING
- All DIP switches are shipped in standard IC tube

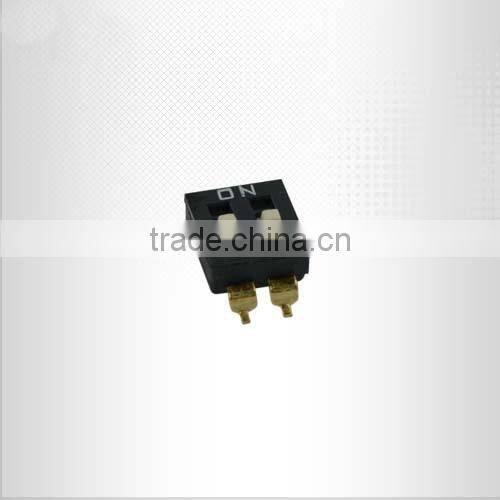

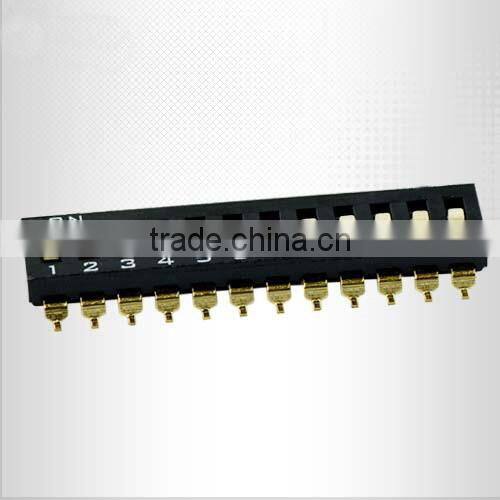

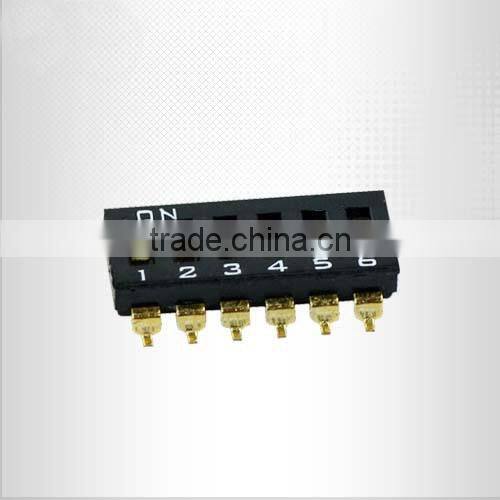

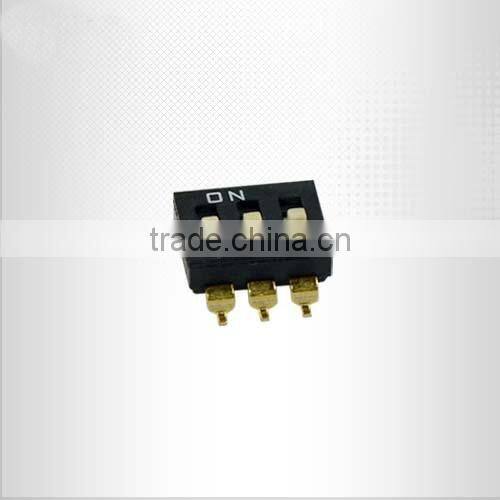

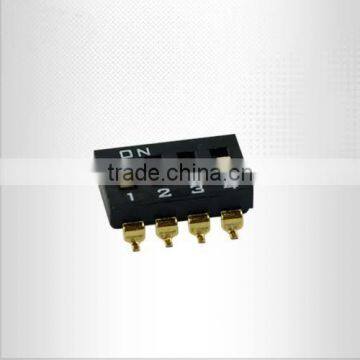

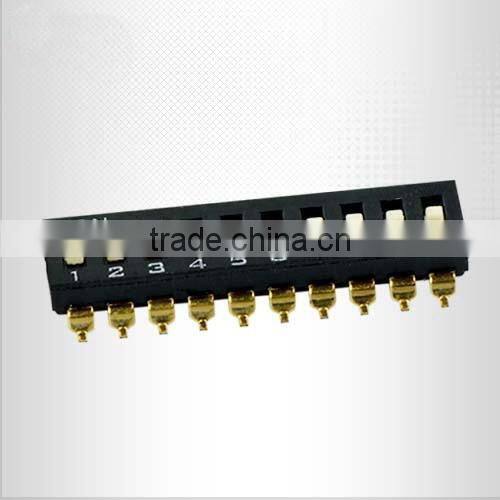

Product Pictures

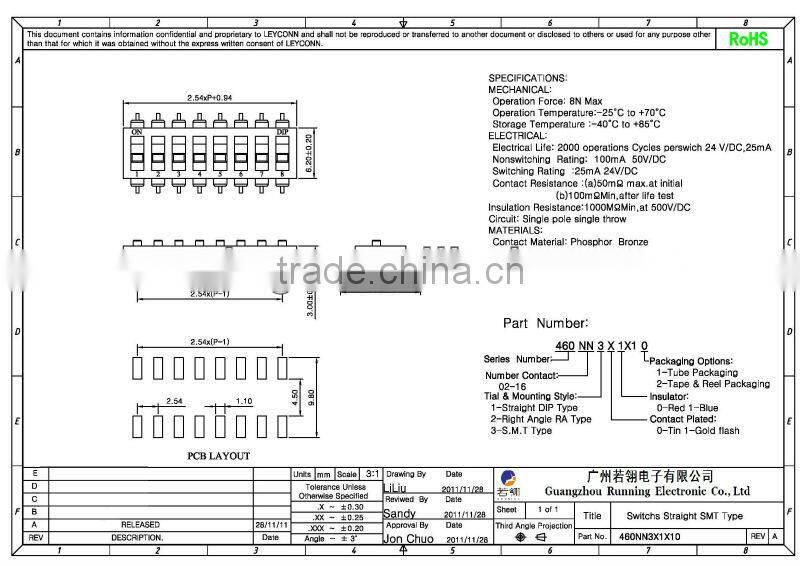

Product Dimenstion:
