Home > Electrical & Electronics > Switch > DIP Switch > Blue/Red 9 Position 2.54mm Slide Type DIP Switch
Blue/Red 9 Position 2.54mm Slide Type DIP Switch
US$ 0.01 - 1
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
DS01-9
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Way Right Angle Type Dip SwitchUS$ 0.01 - 1MOQ: 1000 Pieces -
Through-Hole Type Rotary DIP SwitchesUS$ 0.01 - 1MOQ: 1000 Pieces
-
Blue/Red 2 Positions Slide Type DIP SwitchUS$ 0.01 - 1MOQ: 1000 Pieces
-
Blue/Red 3 Pin Slide Type DIP SwitchUS$ 0.01 - 1MOQ: 1000 Pieces
-
Blue/Red 4 Pin Slide Type 2.54mm DIP SwitchUS$ 0.01 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
DS01-9
Max. Current
100mA
Max. Voltage
50V
Specifications
fast deliveryce, rohs, sgs certificate
quick response
Blue/Red 9 Pin Slide Type 2.54mm DIP Switch
color: Blue , Red
Pitch: 2.54mm
Type: slide type
position: 2~12position, except 11 position
Features/Benefits
- Traditional full profile DIP switch
- Extended actuator for easy actuation
- Open bottom construction allows for solder washing without the need for tape seal
- RoHS coompliant
Typical Applications
- Address switch for industrial controls
- Logic switching for computers and peripherals
- Function controlling for numerous applications
Specification
- Mechanical
- Operation Force: 800g Max
- Stroke: 2.00mm
- Operation Temp.: -20oC~+70 oC
- Storage Temp.: -40oC~+85 oC
- Material
- Base: Engineering plastics, black
- Cover: Engineering plastics, Red/Blue
- Button: Engineering plastics, white
- Terminals: Alloy Copper, Gold plating
- Electrical
- Electrical Life: 2000 operation cycles per switch
- Non-switching Rating: 100mA 50VDC
- Switching Rating: 25mA 24VDC
- Contact Resistance: 50mΩ Max at initial : 100mΩ Max after life test
- Insulation Resistance: 100mΩ 50VDC
- Dieletric Strength: 500VAC/ 1 minute
- Capacitance: 5pF max
- Circuit: Single pole single throw
- Soldering and Cleaning Processes
- Keep all switch contacts in their "off" position for all operation
- Wave Soldering: Recommended Sodering Temp. at 260 oC max , 5 second
- Hand Sodering: use a sodering iron at 30 watts, controlled at 320 oC approximately 2 second while appling soder.
- Cleaning Process: Flux clean using force rinse, high agitation or triple bath cleaning Method. Freon TE or TF give excellent results, When vapor methods are used do not subject to solvents at temperature above 51oC
- PACKING
- All DIP switches are shipped in standard IC tube
Product Pictures

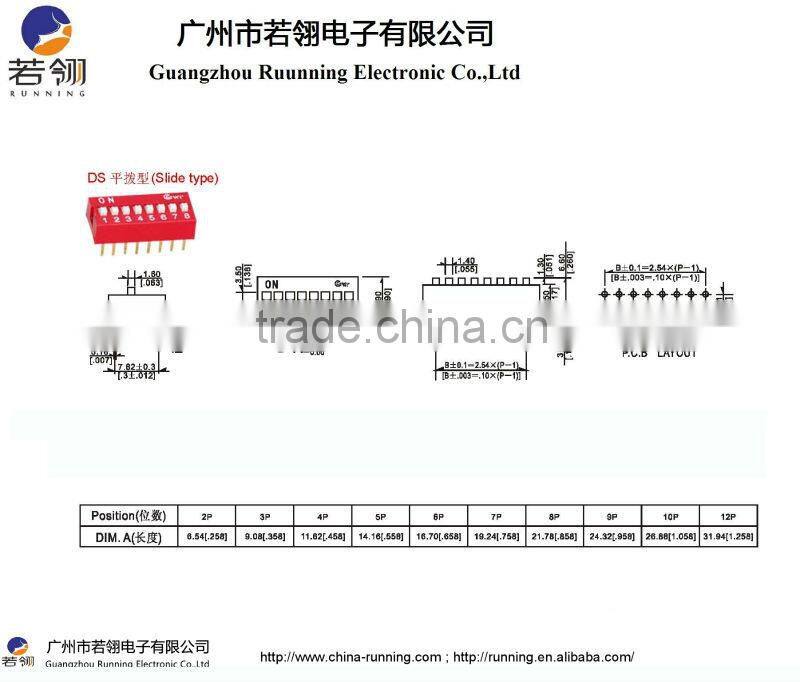

Product Dimenstion:
