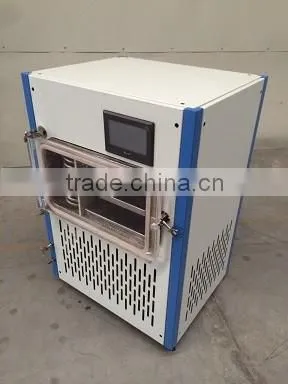

Electric Heating Laboratory Freeze Dryer SJIA-10F
US$ 3,000 - 5,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Freeze Drying Equipment
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Freeze Drying Equipment
Place of Origin
Zhejiang, China
Brand Name
SJIALAB
Model Number
SJIA- 10F basic type
Voltage
110V/220V
Power(W)
1000w
Dimension(L*W*H)
650 * 575 * 1100 (mm)
Weight
80kgs
Certification
CE
Warranty
12month
After-sales Service Provided
Overseas third-party support available
small pilot freeze dryer
Pre-freeze dried in situ,high transmittance plexiglass viweing window
LCD display,PID control,the drying vurve;
Square tray is not easily deformed,easy to operate,easy to clean;
Can be configured inflation valve,ddsposable dry insert gas;
With tamponade,vacuum seal;
The LCD: shelf temperature curve,the cold trap temperature curve,
Sample temperture curve,the curve of the degree of vacuum and the composite curve,
16 programs can be steored,
Freeze dryer program parameters can be modified during operation,
And record the final drying curves,
Circuit system using PID control,
Technical parameters:
@ Drying Area: 0.2 square meters
@ shelf layers: 1 layers
@ shelf temperature range: -40 ° C to 50 ° C
@ shelf size: 280mm * 400mm * 30mm
@ 22mm vials: 185
@ dia 16 vials: 384
@ dia 14 vials: 485
@ dia 12 vials: 650
@ cold trap temperature: ≤ -50 ° C or -80 ° C (no load)
@ water-capture capability: 4kg/24h
@ panel mounted liquid: 3 L
@ electric defrost: optional
@ Ultimate vacuum: ≤ 10Pa
@ Top-stopping down Optional ( manual)
@ Drying Area: 0.2 square meters
@ shelf layers: 1 layers
@ shelf temperature range: -40 ° C to 50 ° C
@ shelf size: 280mm * 400mm * 30mm
@ 22mm vials: 185
@ dia 16 vials: 384
@ dia 14 vials: 485
@ dia 12 vials: 650
@ cold trap temperature: ≤ -50 ° C or -80 ° C (no load)
@ water-capture capability: 4kg/24h
@ panel mounted liquid: 3 L
@ electric defrost: optional
@ Ultimate vacuum: ≤ 10Pa
@ Top-stopping down Optional ( manual)
Cooling: air-cooled, well-ventilated room temperature ≤ 25 ° C
@ Dimensions: 650 * 575 * 1100 (mm)
@ Dimensions: 650 * 575 * 1100 (mm)
@ Voltage:220V 50Hz or 110V 60Hz
