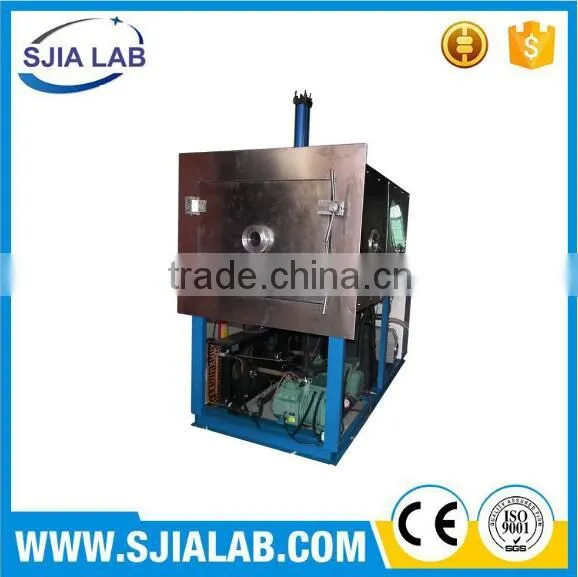

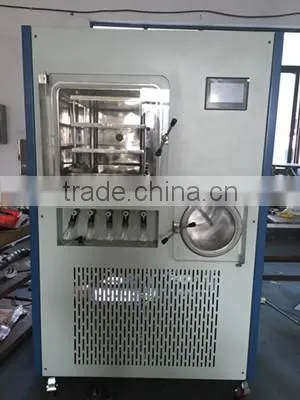

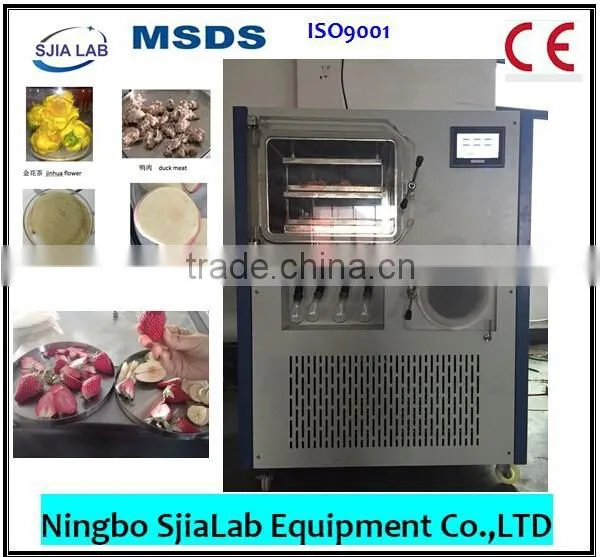

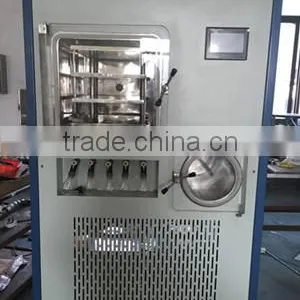

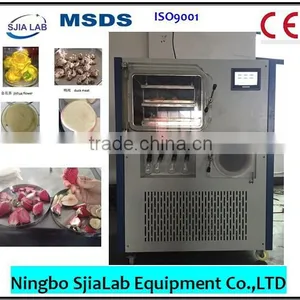

2.0m2 25kg in 24hours freeze dryer/freezing dryer SJIA-200F Series Vacuum Freeze Dryer
Purpose:
SJIA series vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production. The machine is with shelf heating function, using PID technology which is accurate temperature control, human-computer interface using LCD screen with curves and data,
Technical characteristics:
(Silicone heating)Pilot freeze dryer
SJIA-20F/30F/50F/100F/200F ,SJIA series vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production. The machine is with shelf heating function, using PID technology which is accurate temperature control, human-computer interface using LCD screen with curves and data,
Main features:
- Pre-freeze dried in situ,high transmittance plexiglass viweing window
- LCD display,PID control,the drying vurve;
- Square tray is not easily deformed,easy to operate,easy to clean;
- Can be configured inflation valve,ddsposable dry insert gas;
- With tamponade,vacuum seal;
- The LCD: shelf temperature curve,the cold trap temperature curve,
- Sample temperture curve,the curve of the degree of vacuum and the composite curve,
- 16 programs can be steored,
- Shelf temperature differences ± 1 °C, dry effect uniform
- Freeze dryer program parameters can be modified during operation,
- And record the final drying curves,
- Circuit system using PID control,
- Can connect the computer real-time display of the freeze-dried curve.
Silicone Oil Heating Freeze Dryer Technical indicators
Model /Specification |
SJIA-20F |
SJIA-30F |
SJIA-50F |
SJIA-100F |
SJIA-200F |
|
Freeze-drying area(m2) |
0.24 |
0.3 |
0.51 |
1 |
2 |
|
Water capture capability(kg/24H) |
6kg |
7kg |
10kg |
15kg |
30kg |
|
Cold trap temperature(℃) |
<-75℃ |
|||||
Vaccum(Pa) | ||||||
Tray temperature(℃) |
-50℃ to +70℃ |
|||||
Trays number |
2+1 |
2+1 |
3+1 |
6+1 |
5+1 |
|
Trays size (mm) |
300*400 |
475x355 |
475x355 |
475x355 |
500*900 |
|
Materail(L) |
6L |
7L |
10L |
15L |
30L |
|
Vials Ø12mm (pcs) |
2000 |
2600 |
3600 |
7920 |
12600 |
|
VialsØ16mm |
960 |
1440 |
2000 |
4092 |
6800 |
|
Vials Ø22mm |
660 |
728 |
1050 |
2112 |
3600 |
|
Cooling model | ||||||
Voltage(V) |
380V/50Hz |
|||||
|
Machine size(mm) (L*W*H) |
1050*680*1420 |
1050*680*1420 |
915*1245*1700 |
1100*900*1900 |
2100*1200*2200 |
|
N/W(kg) | ||||||
Power(W) |
300kg |
400kg |
550kg |
950kg |
2400kg |
|
Top-press(optional) |
1.5kw |
2.5kw |
3.5kw |
7kw |
10kw |
|
