Help CenterBest Quality IP67 Design LDV-18-12 Waterproof 180~264VAC Wenzhou Led Drivers
Related Products
-
Metal Case CE RoHs IP67 Dc12v 60W 5A Outdoor Power SupplyUS$ 8.35 - 10MOQ: 10 Pieces -
IP67 For Outdoor LED Lighting LDV-60-5 Over Load Protection 60W Led Driver WaterproofUS$ 8.12 - 9.32MOQ: 1 Piece
-
Waterproof 12V 2.5A 30W Constant Voltage Led Driver IP67 High Quality LDV-30 Power Supply Used for OutdoorUS$ 5 - 8MOQ: 10 Pieces
-
Constant Voltage LDV-200-12 Waterproof IP67 Design 200w 12v LED DriverUS$ 21.23 - 23.23MOQ: 1 Piece
-
Constant Voltage LDV-200-36 IP67 Design 200w 36v Waterproof LED Driver With 2 Years WarrantyUS$ 21.23 - 23.23MOQ: 1 Piece
Specifications
wenzhou led drivers1.Warranty:2 years
2.Certification:CE RoHS IP67
3.Over load protection
4.low cost,high reliability

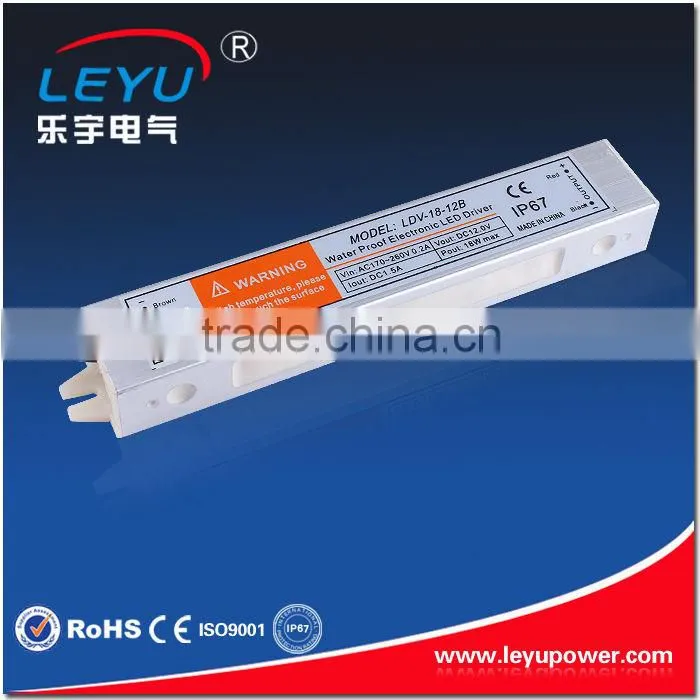

Best Quality IP67 design LDV-18-12 Waterproof 180~264VAC wenzhou led drivers
Specification:
18W Single Output Waterproof Switching Power Supply LDV-18 series
SPECIFICATION | ||
OUTPUT |
|
|
Model |
LDV-18-12 |
LDV-18-24 |
DC Voltage |
12V |
24V |
Rated Current |
1.5A |
0.75A |
Current Range |
0-1.5A |
0-0.75A |
Rated Power |
18W |
18W |
Ripple & Noise |
100mVp-p |
100mVp-p |
Voltage Adj. Range |
±10% |
±10% |
Voltage Tolerance |
±1% |
±1% |
Inlet Stability |
±0.5% |
±0.5% |
Load Stability |
±0.5% |
±0.5% |
Setup, Rise, Hold Up Time |
800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
|
|
|
|
INPUT |
|
|
Voltage Range |
176~264VAC 47~63Hz |
|
AC Current |
0.7A/115V 0.3A/230V |
|
Efficiency |
76%/115VAC |
80%/115VAC |
Inrush Current |
Cold-start current 15A/115V 30A/230V |
|
Leakage Current |
<0.75mA/240VAC |
|
|
|
|
PROTECTION |
|
|
Over Load |
105%~150% |
|
Protection type: plusing hiccup shutdown Reset:auto recovery | ||
|
|
|
ENVIRONMENT |
|
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
|
|
|
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
STANDARD |
|
|
Safety Standard |
ApprovedIP67 |
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
|
|
|
|
OTHERS |
|
|
Dimension |
161*28*19mm(L*W*H) |
|
Weight |
0.2Kg |
|
What is our magic weapon for winning?
1.10 years experience for producing Electric Appliances.
2. Independent research and development ability, with 15 years experience of engineers.
3. No one we have, we have excellent!

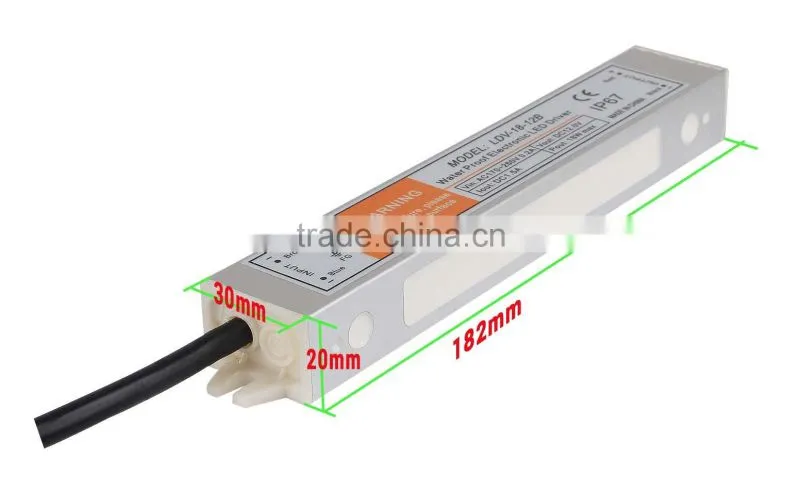

Detailed photos :
Block diagram :
