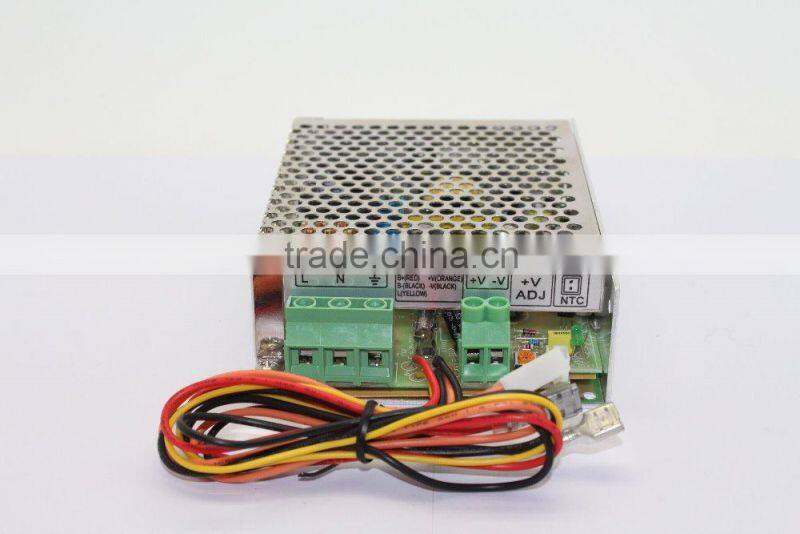

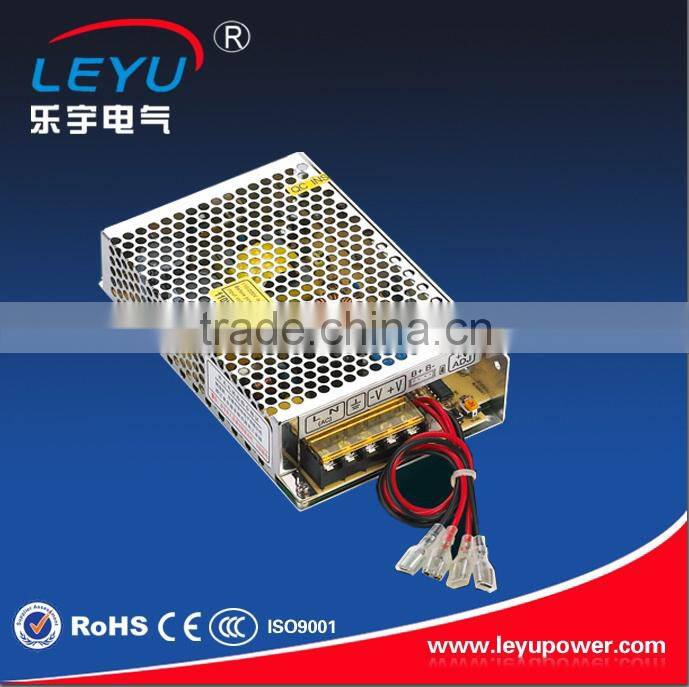

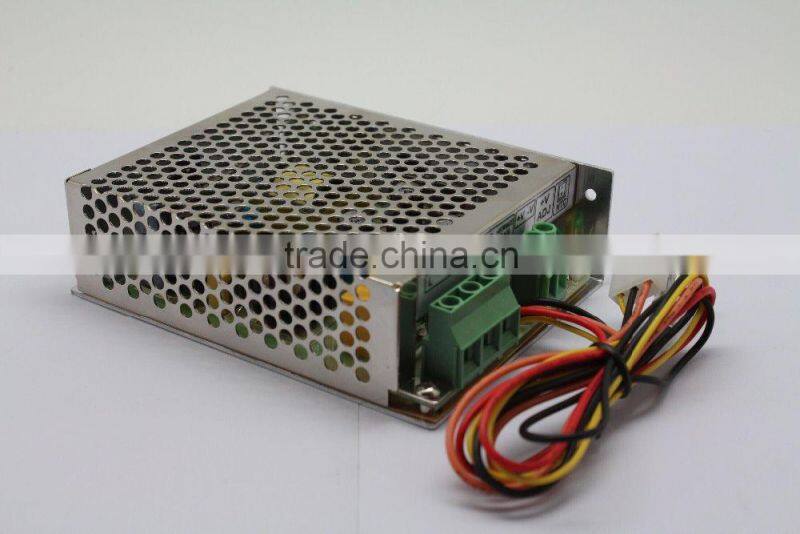

2016 Hot Sell SCP-50-24 With UPS Function 24v Single Output Uninterrupted Switching Mode Power Supply

2016 hot sell  SCP-50-24 with UPS function 24v single output uninterrupted switching mode power supply

50W Single Output UPS function Power Supply         SCP-50 series

Features:

1. 1. Universal AC input/Full rang
2. 2. Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)
3. 3. Cooling by free air convection
4. 4. LED indicator for power on
5. 5. No load power consumption<1W
6. 6. Suitable for installation in metallic or non-metallic system enclosure
7. 7. 100% full load burn-in test
8. 8. 2 years warranty

   SPECIFICATION
   OUTPUT

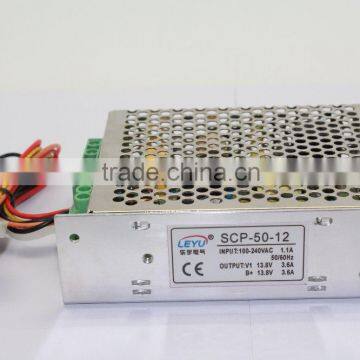

   Model	SCP-50-12		SCP-50-24
   DC Voltage	13.8V		27.6V
   Rated Current	3.6A		1.8A
   Current Range	0-3.6A		0-1.8A
   Rated Power	49.7W		49.7W
   Ripple & Noise	120mVp-p		200mVp-p
   Voltage Adj. Range	+15,-5%		+15,-5%
   Voltage Tolerance	±2%		±1%
   Inlet Stability	±1%		±1%
   Load Stability	±2%		±1%
   Setup, Rise	500ms,30ms/230VAC  1200ms,30ms/115VAC at full load
   Hold Up Time	50ms/230VAC         16ms/115VAC at full load
   INPUT
   Voltage Range	85~264VAC   120-370VDC
   Frequency Range	47-63Hz
   AC Current	1.1A/115VAC     0.65A/230VAC
   Efficiency	81%		85%
   Inrush Current	Cold-start 45A
   Leakage Current	<2mA/240VAC
   PROTECTION
   Over Load	4.3A~5.8A rated output power	2.2A~2.9A rated output power
   	Protection type: hiccup mode,recovers automatically after fault condition is removed
   Over Voltage	16.6~19.3V	33.1~38.5V
   	Protection type: shut down o/p voltage, re-power on to recover
   ENVIRONMENT
   Working Temp., Humidity	-20℃~+60℃(Refer to output derating curve),20%~90%RH
   Storage Temp., Humidity	-40℃~+85℃, 10%~95%RH
   Temp. Coefficient	±0.03%/℃(0~45℃)
   Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes
   SAFETY
   Withstand Voltage	I/P-O/P: 3KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC
   Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
   STANDARD
   Safety Standard	UL60950-1,CCC,CE
   EMC Standard	EN55022,CLASS B
   OTHERS
   Dimension	129*98*38mm(L*W*H)
   Net Weight	375.7g
   Packing	450g/pc  30pcs/carton
