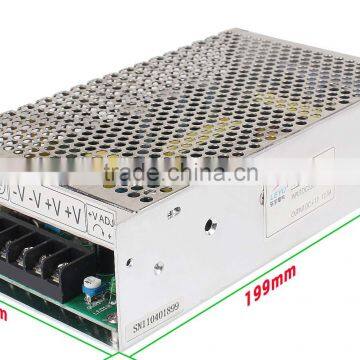

SD-150C-12 150w Switching Power Supply 48v to 24v Voltage Converter

SPECIFICATION

OUTPUT

Model

SD-150A-5

SD-150B-5

SD-150C-5

SD-150B-12

SD-150C-12

SD-150D-12

SD-150B-24

SD-150C-24

SD-150D-24

DC Voltage

5V

12V

24V

Rated Current

30A

12.5A

6.5A

Current Range

0-30A

0 ~ 12.5A

0 ~ 6.5A

Rated Power

150W

150W

156W

Ripple & Noise

120mVp-p

120mVp-p

150mVp-p

Voltage Adj. Range

4.5~5.5VDC

11 ~ 16VDC

21.6 ~ 26.4VDC

Voltage Tolerance

±1.0%

±1.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.3%

Load Regulation

±0.5%

±0.5%

±0.3%

Setup, Rise Time

2s, 50ms at full load

Hold Up Time

24ms(only D mode) at full load

INPUT

Voltage Range

A:9.2~18VDC B:19 ~ 36VDC   C:36 ~ 72VDC   D:72 ~144VDC or 85 ~ 132VAC

Efficiency

70%

73%

76%

75%

77%

79%

77%

80%

82%

DC Current

6.8A/24V

3.4A/48V

2.7A/96V

6.8A/24V

3.4A/48V

2.7A/96V

6.8A/24V

3.4A/48V

2.7A/96V

Inrush Current

D: 22.5A/96VDC

Leakage Current

<0.75mA / 120VAC (SD-150D)

PROTECTION

Over Load

105 ~ 135% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

16.8V ~ 20V/10% LOAD

31.5 ~ 37.5V/10% LOAD

Protection type: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp.

-10 ~ +60℃ (Refer to “Derating Curve”)

Working Humidity

20 ~ 90% RH non-condensing

Storage Temp., Humidity

-20 ~ +85℃, 10 ~ 95% RH

Temp. Coefficient

±0.03%/℃ (0 ~ 50℃)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

Safety Standards

IEC60950-1 CB approved by TUV (for D type only)

Withstand Voltage

I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH

EMC Emission

Compliance to EN55022 (CISPR22) Class B

EMC Immunity

Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A

OTHERS

Dimension

199*110*50mm (L*W*H)

Weight

0.86Kg

Packing

16pcs/14.5Kg/0.95CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
