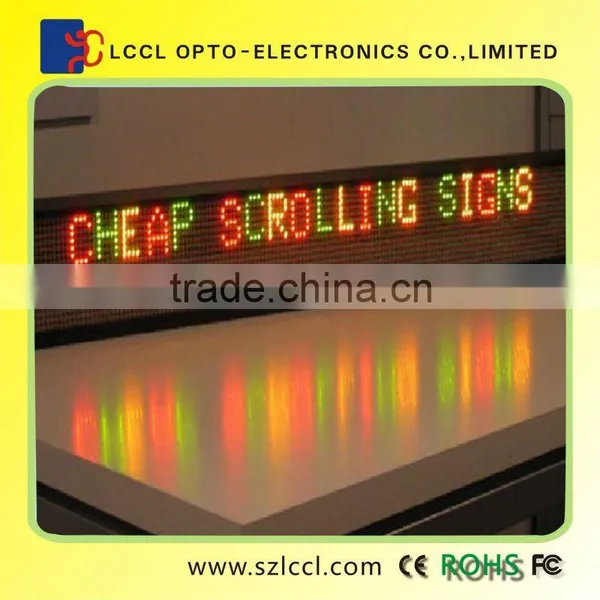

Led Display Writing Scrolling Message Board Circuit

Shenzhen LCCL Opto-Electronic Science & Technology Co., Ltd. Gold Verified Supplier
5Yrs
Led Display Writing Scrolling Message Board Circuit thumbnail-1
Led Display Writing Scrolling Message Board Circuit photo-1
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SZLCCL
Model Number:
P6
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SheKou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SZLCCL
Model Number P6
Usage Outdoor
Tube Chip Color Full Color
Display Function Other, Graphics, characters
Pixels Other, 6mm

Specifications

1.Wide voltage input range from DC9V-36V for taxi or bus
2.Single red,yellow or other display color
3.128*16dots single-line

Led Display Writing Scrolling Message Board Circuit



a)Features:







1. P6 128*16 single-line display 16 English characters or ASCII characters, and can store 256 messages, each message can have 256 English characters or ASCII characters.







2. Adjust 16 grade brightness in the daytime and nighttime automatically separating with 4 time segments.







3. High brightness and high contrast, can display clearly in direct sunlight, well suitable for outdoor.







4. Wireless remotely sending information, and also have playing programme as priority function. The priority order is: Alarm messages as grade one, real time messages as grade two, advertising messages as grade three and the grade four is default messages, such as advertising telephone and etc.







5. Support on-line software upgrade, easily update the functions of the unit.







6. Use super-thin aluminum frame with whole molding, beautiful, firmly, easy to exhaust heating and facilitated to repair.







7. Use moveable fixing bracket, facilitated to install or repair.







8. Use constant LED driving, to ensure the consistency of product brightness.







9. Set up play time segments. Timing play messages with 24 time segments. The time segments can be accurated to a second.







10 Can adjust play speed and display dwell time.







b) Screen technical data







Display supported: Chinese, English, number, symbol







Scan mode:Software and hardware







Refresh rate:160HZ







Uncontrolled dot<1/10000







Pitch:6mm







Module size:192*96mm







Module qty:4pcs







Module dot:32*16







Display area:768*96mm







Dimension:792*120.6*33.5mm







Resolution:2048pixel







Net Weight:2.2KG











c)Environment data







Life span>100 thousand hours







Mean Time Between Failure:50000hours (MTBF)







Working Voltage:DC9-36V







Working temperature:-25 - 70°C







Storage temperature:-40 - 80°C







Average power consumption<15W (in normal usage)
