P8 SMD Full Color High Resolution Big Screen Commercial Led Advertising Screens
US$ 1,200 - 1,600
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LCCL
Model Number:
P8
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Resolution P8 Outdoor Tft Lcd Display Module Screens for AdvertisingUS$ 1,200 - 1,600MOQ: 1 Piece -
New China Products P6 Outdoor Full Color Module LED Display for AdvertisingUS$ 1,080 - 1,200MOQ: 1 Square Meter
-
Outdoor Waterproof Sxey Xxx Video Led Large Screen DIP P16 Outdoor Full Color Led Display Most PopularUS$ 530 - 600MOQ: 1 Piece
-
Large Stadium Outdoor P16 Electronic Advertising Led Display ScreenUS$ 880 - 950MOQ: 2 Square Meters
-
P8 SMD Full Color High Resolution Big tv Utdoor Led Advertising Giant ScreenUS$ 1,200 - 1,600MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
LCCL
Model Number
P8
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 8mm
Screen Dimension
256mm*128mm
P8 SMD full color high resolution big screen commercial led advertising screens
Product Description
Functions of SMD LED Full Color Display
1) Video play: it can play video programs in video camera, VCD, DVD and LD; it can also play files of different formats, such as AVI, MOV, MPG, DAT and VOB; it has three display formats, namely, VGA+VIDE, Video and VGA;
2)Information release: it can display a variety of computer information, graphs, two-dimensional animation and three-dimensional animation; it has lots of display methods, such as rolling, lead-in, lead-out, up shift, left shift and circulation; font, character size, letter and speed can be set randomly;
3)Network function With the network interface, it can be connected with the Internet to play information on the Internet at the same time; display screens at different places can be centralizedly controlled through Internet according to customers’ requirements, and “VPM+broadband” may be adopted for remote control.
| P8 SMD OUTDOOR WATERPROOF FULL COLOR LED MODULE CA | ||||
| Item | Parameter | |||
| Pixel Pitch | 8mm | |||
| LED Encapsulation | SMD3535/1R1G1B | |||
| LED Chips | Epistar | |||
| Module resolution | 32dots*16dots | |||
| Module size(mm*mm) | 256mm*128mm | |||
| Pixel density | 15625dots/m² | |||
| Weight | 0.56KG | |||
| Drive chip | 2026 | |||
| Drive Method: | 1/4scanning | |||
| Brand of power supply | CL 5V~40A | |||
| Gray Scale | Recommended 256 level | |||
| The best viewing angle | Horizontal:140 Vertical:90 | |||
| Max Power Consumption | 1000W/ m² | |||
| Control Mode | Video frequency synchronization | |||
| Optimal Viewing Distance | ≥8m | |||
| Brightness | ≥7000cd/m² | |||
| Blind Spot Rate | <0.0001 | |||
| Brightness Control | 0-255 Grade | |||
| Contrast | 100 levels adjustable | |||
| Earth Leakage Current | <2mA | |||
| MTBF | >5000Hours | |||
| Lifespan | >100000Hours | |||
| Power Supply Mode | AC220V/50HZ or AC110V/60HZ | |||
| Protection Level | IP65 | |||
| Humidity | 0%~90% | |||
| Operating System | Windows98/me/2000/NT/XP | |||
| Operating temperture | Operation:-30°C~+60°C | |||
Range of Application

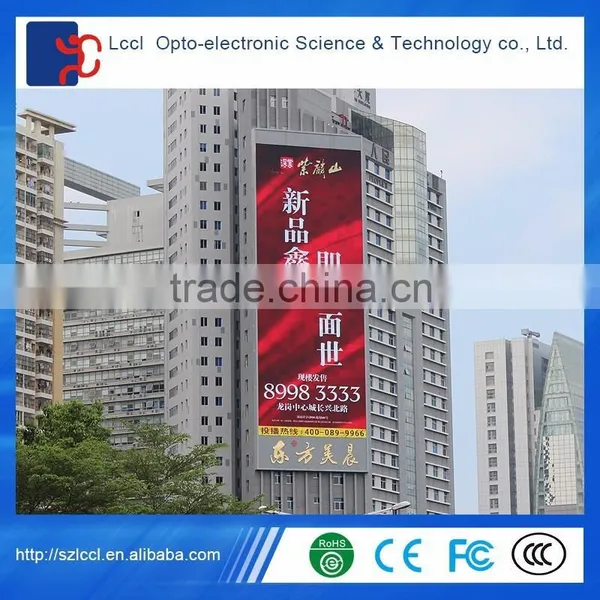

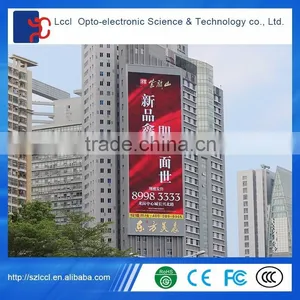

Outdoor full color LED display could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, antistatic, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
LED display system configuration
Company Information
LCCL is a leading supplier of full color display screen solution throughout the world with more than2000M2 of area and more than 100 staff, and furthermore,imports advanced production equipment from other countries. With production personel of high quality, it devotes itself to providing customers with innovative products, service and solutions that also meet their demands. Value and servicecreated for thecustomers keep growing.
Corporate culture
Prospect: To persistently strive for manufacturing excellent international LED display devices
Concept: Product quality represents our character; technology serves users.
Packaging & Shipping
Shipping Detail
- Delivery time: about 10 - 20days after receive T/T 100% payment.
- The price is factoary price in USD,not include the shipping fees.
- The price is valid within 15 days.
