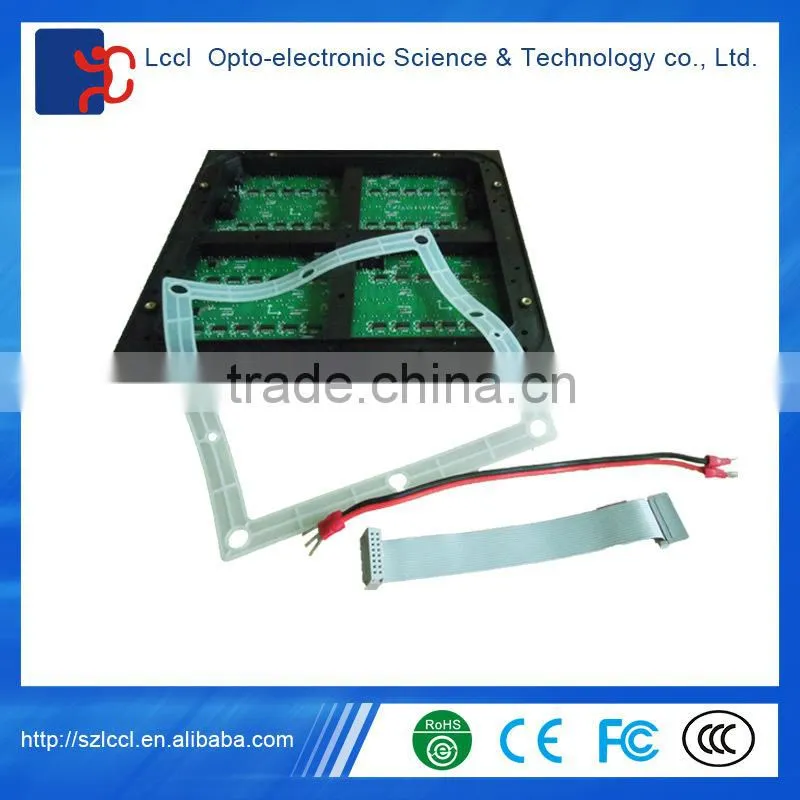

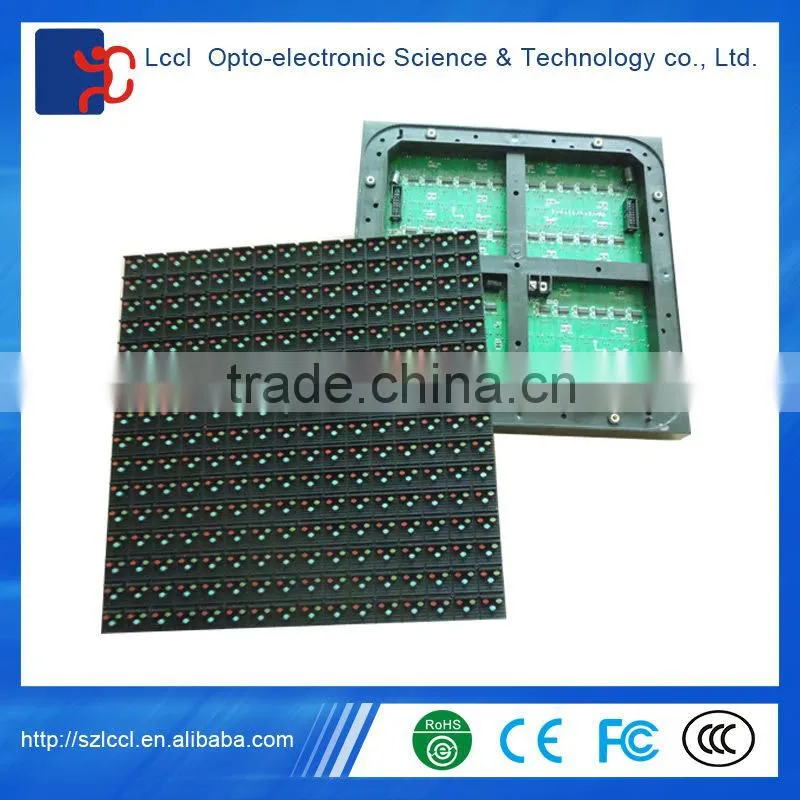

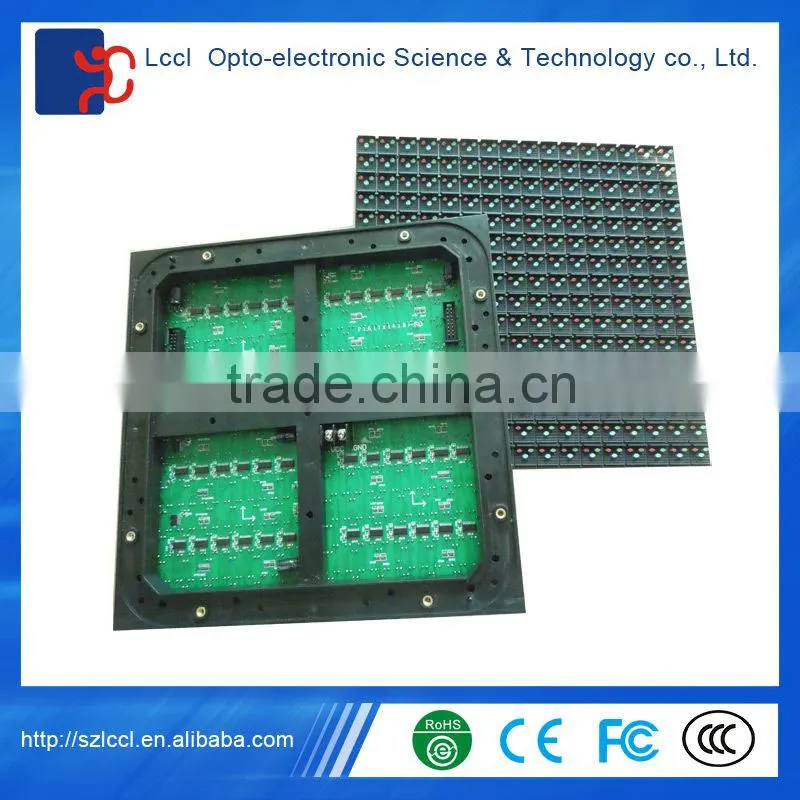

10m Large stadium outdoor P16 electronic advertising led display screen
Introduction of outdoor full color LED display
-From LED material production to element screening until final assembly and debugging of the body, LCCL has advanced means of production and quality testing and perfect technics guarantee system.
-As to key elements, LCCL is the exclusive agent of famous enterprises at home and abroad, such asOPTO TECH CORPORATION in Taiwan, CREE INC in America and etc, and it becomes one of the biggest domestic LED devices suppliers.
-Such LED display technologies as high luminance, HD image plane and large viewing angle are widely used in outdoor advertising video screen and plaza color screen.
-Luminance is high, which can be automatically adjusted according to conditions on site; color distribution is -even, which solves mosaic phenomenon thoroughly;
-Images and letters can be displayed clearly and vividly; a point or a lamp can be repaired independently, and fore maintenance reduces maintenance cost relatively.
Illuminating engineering
LED light art is successfully applied to LED illumination. That is, different parameters like dot pitch,luminance, angle and quantity of LED are randomly arranged and designed so that LED illumination has hundreds of colors and patterns through control of system and current to realize infinite creative idea of LED light art.
Representative works: Administrative Committee Building of Zhuankou High-tech Development Zone, Pengcheng International Mansion and etc.

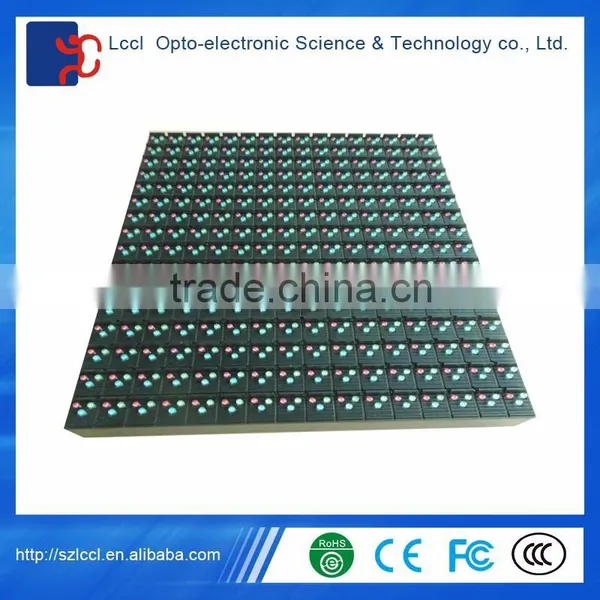

| P16 DIP OUTDOOR WATERPROOF FULL COLOR LED MODULE CATALOGUE | ||||
| Item | Parameter | |||
| Pixel Pitch | 16mm | |||
| LED Encapsulation | DIP346/1R1G1B | |||
| LED Chips | Epistar | |||
| Module resolution | 16dots*16dots | |||
| Module size(mm*mm) | 256mm*256mm | |||
| Pixel density | 3906dots/m² | |||
| Weight | 0.98KG | |||
| Drive chip | 2026 | |||
| Drive Method: | Constant current Static Scan | |||
| Brand of power supply | CL 5V~40A | |||
| Gray Scale | Recommended 256 level | |||
| The best viewing angle | Horizontal:140 Vertical:90 | |||
| Max Power Consumption | 1000W/ m² | |||
| Control Mode | Video frequency synchronization | |||
| Optimal Viewing Distance | ≥16m | |||
| Brightness | ≥7000cd/m² | |||
| Blind Spot Rate | <0.0001 | |||
| Brightness Control | 0-255 Grade | |||
| Contrast | 100 levels adjustable | |||
| Earth Leakage Current | <2mA | |||
| MTBF | >5000Hours | |||
| Lifespan | >100000Hours | |||
| Power Supply Mode | AC220V/50HZ or AC110V/60HZ | |||
| Protection Level | IP65 | |||
| Humidity | 0%~90% | |||
| Operating System | Windows98/me/2000/NT/XP | |||
| Operating temperture | Operation:-30°C~+60°C | |||
LCCL is a leading supplier of full color display screen solution throughout the world with more than2000M2 of area and more than 100 staff, and furthermore,imports advanced production equipment from other countries. With production personel of high quality, it devotes itself to providing customers with innovative products, service and solutions that also meet their demands. Value and servicecreated for thecustomers keep growing.
Corporate culture
Prospect: To persistently strive for manufacturing excellent international LED display devices
Concept: Product quality represents our character; technology serves users.
Shipping Detail
- Delivery time: about 10 - 20days after receive T/T 100% payment.
- The price is factoary price in USD,not include the shipping fees.
- The price is valid within 15 days.
