Home > Consumer Electronics > LED Display > Indoor LED Display > High Brightness Waterproof Outdoor Advertising Full Color SMD p5 Outdoor Rgb Module Led Display

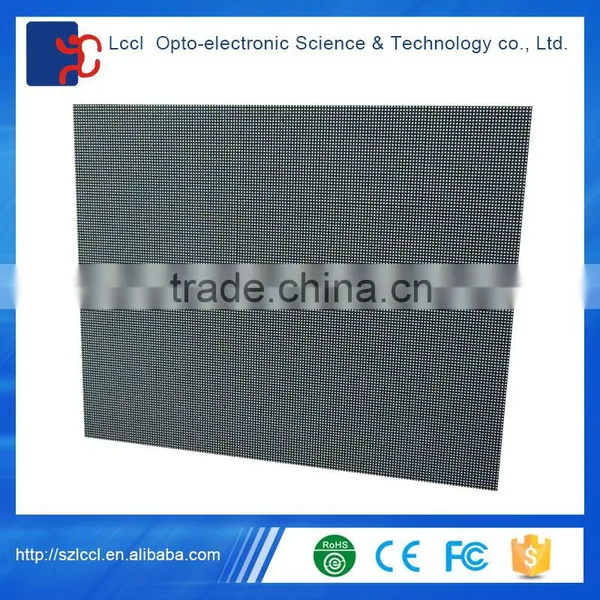

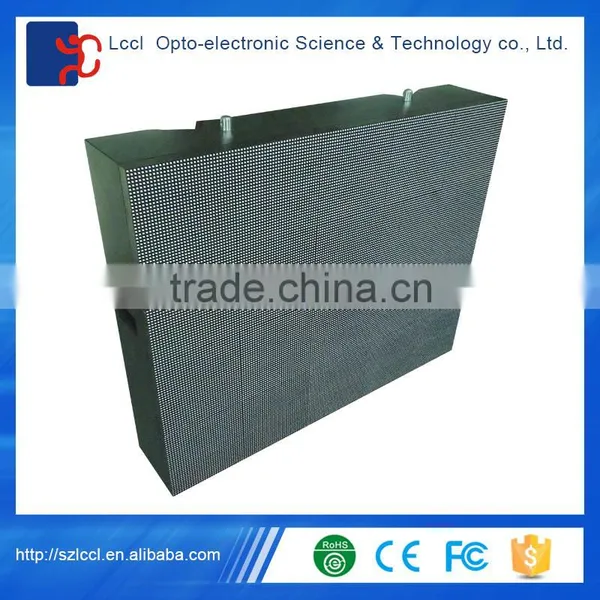

High Brightness Waterproof Outdoor Advertising Full Color SMD p5 Outdoor Rgb Module Led Display

Name: High Brightness Waterproof Outdoor Advertising Full Color SMD p5 Outdoor Rgb Module Led Display
Brand: LCCL
SKU: 113120293

US$ 33 - 34 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LCCL

Model Number:

Shenzhen LCCL Opto-Electronic Science & Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LCCL

Model Number P5

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 5mm

Screen Dimension Customized Size

High brightness Waterproof Outdoor advertising full color SMD p5 outdoor rgb module led display

Product Description

Item	Parameter	Item	Parameter
Pixel Pitch	5mm	LED Encapsulation	SMD2727 /1R1G1B
LED Chips	Epistar	Module resolution	32dots*32dots
Module size(mm*mm)	160mm*160mm	Pixel density	40000dots/m²
Weight	0.35KG	Drive chip	2026
Drive Method:	1/8scanning	Brand of power supply	CL 5V~40A
Gray Scale	Recommended 256 level	The best viewing angle	Horizontal:140 Vertical:90
Max Power Consumption	1000W/ m²	Control Mode	Video frequency synchronization
Optimal Viewing Distance	≥10m	Brightness	≥6500cd/m²
Blind Spot Rate	<0.0001	Brightness Control	0-255 Grade
Contrast	100 levels adjustable	Earth Leakage Current	<2mA
MTBF	>5000Hours	Lifespan	>100000Hours
Power Supply Mode	AC220V/50HZ or AC110V/60HZ	Protection Level	IP65
Humidity	0%~90%	Operating System	Windows98/me/ 2000/NT/XP
Operating temperture	Operation:-30°C~+60°C
