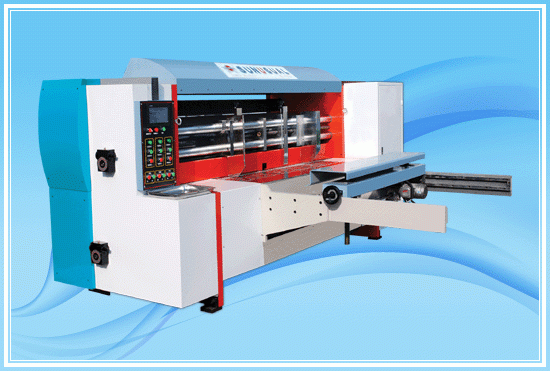

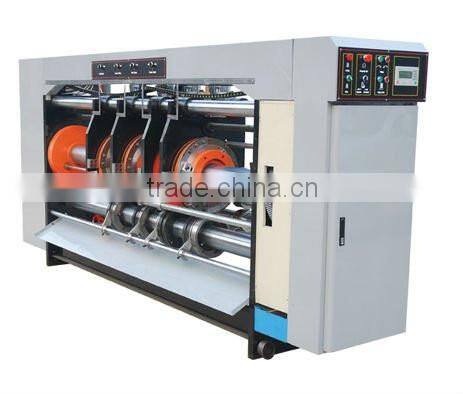

Help CenterHiigh Speed Slotter Machine
Related Products
-
Packaging Machine Chain Feeder Flexo Printer SlotterNegotiableMOQ: 1 -
Corrugated Carton Box Making Machine Lead Edge Feeder High Speed Rotary Die CutterUS$ 16000.00 - 16000.00MOQ: 1 Set
-
Flexo High Speed Printer Slotter Die Cutter MachineUS$ 400,000 - 500,000MOQ: 1 Set
-
2200mm Series High Speed Cardboard Flexo Printing Slotting MachineUS$ 400,000 - 500,000MOQ: 1 Set
-
Printing Slotting Box Making Machine and Printer Slotter Die Cutter for Carton BoxUS$ 100,000 - 500,000MOQ: 1 Set
Main feature:
1) Adopts front paper-feeding, speed governing is controlled by frequency conversion;
2) Front paper-feeding working stand is equipped with vacuum, ensures curling corrugated is fed into smoothly;
3) Electric counter can pre-setting the number of machining;
4) Dual spindle leading ensures the accuracy of the paper feeding.;
5) Front rollers feeding accuracy is high, end block board can dolly move electrically;
6) Front fender can go up and down by manual, side fender can sideslip electrically;
7) Three units slotting system, one unit corner cutting system, two units slitting system, four units roll line system;
8) Electric phase adjust, digital display, input numbers to adjust;
9) Slotting knives adopt linkage of four knives;
10) Electric box-height adjustment;
11) Motor drive the nut on the linkage board, pull the cutter lateral movement, accurate position, convenient operation (down roller is passivity adjusting).
12) Shaft diameter is Ø 99 mm, steel pipe surface is grinded, plated with hard chrome;
13) Calibrated by balance, operated steadily;
14) The space of the line-pressing wheel can be manually adjusted, adjusting scope is 0~12mm;
15) Diameter of upper axle of slotting is Ø156mm, steel pipe surface is grinded, and plated with hard chrome;
16) Slotting knife width is 7mm;
17) Alloy steel material with heat treatment, grinded teeth-shape slotting knife, hardness and toughness are both good;
18) Line pressing wheel, upper and lower interval of slotting roller is manually adjusted;
19) Planetary gear phase structure with digital display, or input numbers to adjust, positive and negative 360 degrees adjustment. (Both operating and stopping can be adjusted.)
20) Punching device, punching hand-clasping device. selectable
Technical parameters:
Max feeding size: 1400x2400mm;
Min feeding size: 500x350mm;
Thickness of the cardboard: 2-12mm;
Design speed: 150P/min;
Precision of slotting: 0.75mm;
Motor power: 5.5 KW;
Draught fan power: 7.5 KW
