Vertical Insulating Glass Production Line(Roller Press)-window Machine
US$ 20,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YUEFENG
Model Number:
GPLG-XY1800
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Spacer Bending MachineUS$ 6,000 - 9,000MOQ: 1 Set -
Plate Press Vertical Insulating Glass Production Line Double GlazingUS$ 19,330 - 21,665MOQ: 1 Set
-
Plate Press Vertical Insulating Glass Production LineUS$ 19,330 - 21,665MOQ: 1 Set
-
Double Glazing Full Automatic Vertical CNC Insulating Glass Process LineUS$ 25,900 - 44,670MOQ: 1 Set
-
Double Glazing Full Automatic CNC Insulating Glass Process LineUS$ 25,900 - 44,670MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
YUEFENG
Model Number
GPLG-XY1800
Specifications
Vertical Insulating Glass Production Line(Roller Press)-window machine1.Glass thickness:3~18mm
2.Max.glass size:1800*2500mm

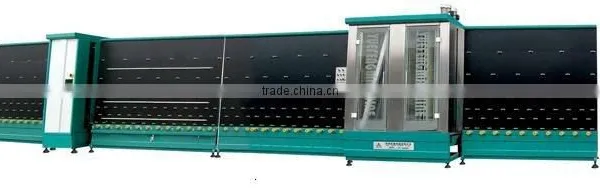

Vertical Insulating Glass Production Line(Roller Press)-window machine
Introduction:
This machine is the equipment for hollow glass mainly includes: vertical glass cleaner, layer covering machine, roller press and roll over table. It can finish the processes like washing & drying, positioning the aluminum frame, layer covering, rolling and rolling over of the hollow glass. This line is vertical structure, covering a small area. It is easy to operate.
Technical Parameter:
Model |
GPLG-XY1800 |
Input voltage |
380V 50Hz |
Input power |
17.5Kw |
Max.glass size |
1800×2500mm |
Min.glass size |
280×400mm |
Glass thickness |
3~18mm |
Working speed |
8~15m/min |
Overall dimension |
17500×2350×3000mm |
