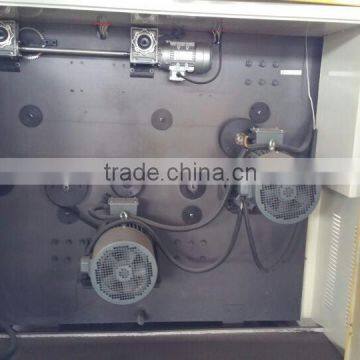

Help CenterCorrugated Board Slitting Scoring Machine/carton Box Making Machine
Related Products
-
Corrugated Carton 2 Color Flexo Printing Slotting MachineUS$ 5,000 - 50,000MOQ: 1 Set -
MQJ-1600 Platform Die Cutting Machine(XINHUA COMPANY)US$ 1,000 - 3,000MOQ: 1 Set
-
Sheet Cutter for Single Facer Corrugated Cardboard Production LineUS$ 2,690 - 50,000MOQ: 1 Unit
-
Four Knives Link Slotting and Cutting Angle MachineUS$ 4,000 - 10,000MOQ: 1 Set
-
Hot Foil Stamping Machine in ChinaUS$ 6,000 - 80,000MOQ: 1 Set

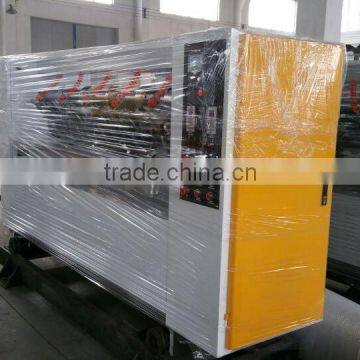

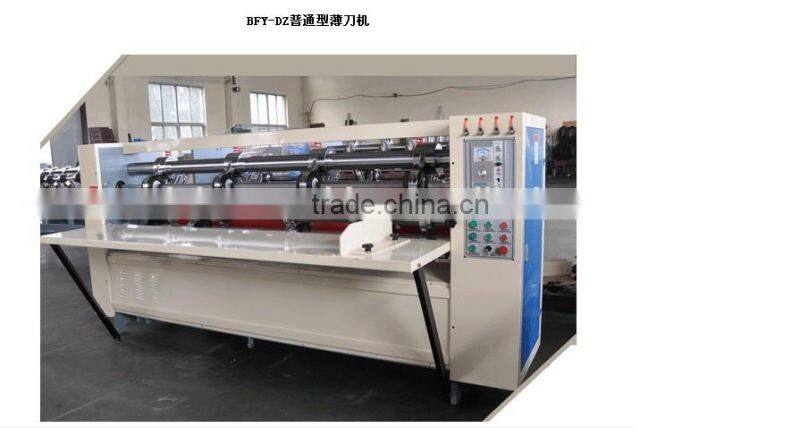

slitter machine

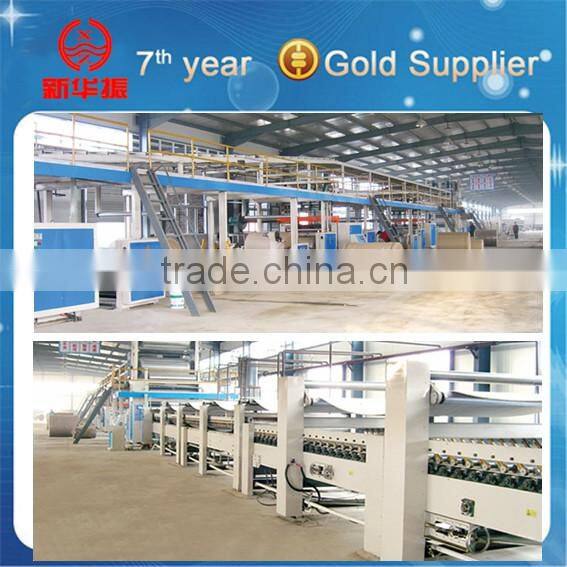

It is mainly to use in the corrugator or corrugated board production line to slitte and creas the board.
Brief Introduction:
Adopt the scheduled pressure paper feeding which is stably.
Adopt thin knife separate cutting (The thickness is only 1 mm.). To make sure the separate-cut corrugated board smooth and tiny, we installed with automatic and hand grinding wheel grinding to keep the blade edge sharp.
After pre-pressing, separate cutting and creasing the paperboard to accomplish the requirement of the product. The pressed trace does not arouse the trace tearing phenomenon.
We can provide the thin knife paper-partitioning machine for transforming the corrugated board producing line.
Slitting Blade can be added(Optional)
Spec:
Parameters |
| Model | |
BFY-2000 | BFY-2500 | ||
Width of the Corrugated board | mm | 2000 | 2500 |
Max. Speed of Paperboard | m/min | 141 | 141 |
Slitting Blade | pieces | 4 | 4 |
Min. Separate Cutting Width | mm | 200 | 200 |
Min. Creasing Width | mm | 200 | 200 |
External Diameter of Thin & Round Knife | mm | 260 | 260 |
Thickness of Thin & Round Blade | mm | 1 | 1 |
Power of Electrical Machinery | kw | 4 | 4 |
Weight of Machine | kg | 3000 | 3000 |
Overall Dimension | mm | 2630×1791×1130 | 3050×1791×1130 |
