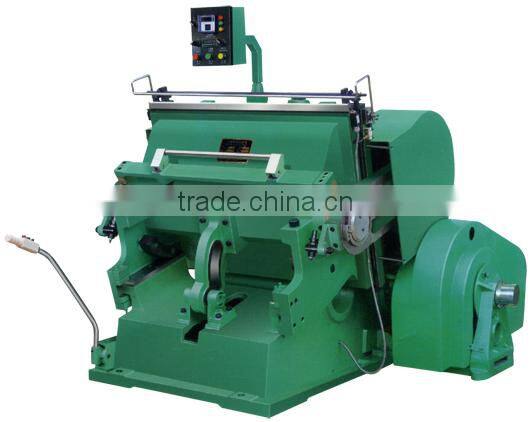

Help CenterSemi-automatic Manual Die Cutting Press Machine With CE
Related Products
-
Manual Die Cutting And Creasing Machinery ML SeriesUS$ 2,000 - 20,000MOQ: 1 Set -
Corrugated Cardboard Manual Die Cutting Creasing Machine Made in ChinaUS$ 2,000 - 20,000MOQ: 1 Set
-
Thin Blade Slitter Scorer(Electric Blade Adjustment and Electric Scoring)NegotiableMOQ: 1
-
XINHUA Rotary Die Cutter Machine for Carton Packing MachineUS$ 22,000 - 27,000MOQ: 1 Set
-
Corrugated Packing Machinery Carton Box Stapler MachineNegotiableMOQ: 1
pecifications:
Diecutting and creasing machine is used for creasing and cutting ordinary cardboard corrugated board plastic and leather
Usage:
Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather ingeneral, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact strrctute, fine workmanship, big pressure, high precision and easy and reliable operation, etc.
Features:
Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing.
Flywheel is with big moment of force and large pressure.High strength due to one piece casting by using top-ranking material for machine body.Single plate electromagnetic clutch is sensitive and reliable.
With functions of single, continuous and opening dwell operation, dwell range is adjustable.Operating position is reasonably arranged, moving-bed can be opened to its optimum.Safety system is reliable
Flat pressure tangent machine:
MODEL |
INNER CHASE SIZE (MM) |
SPEED (STROKES/MIN) |
MAX RULE LENGTH (M) |
MOTOR POWER (KW) |
MACHINE WEIGHT (KG) |
OVERALL DIMENSIONS (MM) |
ML750 |
750 x 520 |
28±2 |
<15 |
2.2 |
2000 |
1520x1370x1600 |
ML930 |
930 x 670 |
23±3 |
<25 |
4 |
3000 |
1820x1600x1700 |
ML1300 |
1300 x920 |
15±2 |
<40 |
7.5 |
6000 |
2220x2200x2110 |
ML1400 |
1400 x 1000 |
15±2 |
<45 |
7.5 |
6500 |
2320x2200x2110 |
ML1500 |
1500 x 1050 |
14±2 |
<45 |
7.5 |
7000 |
2420x2200x2110 |
ML1500A |
1500 x 1050 |
14±2 |
<45 |
7.5 |
7500 |
2420x2200x2260 |
ML1600 |
1600 x 1250 |
13±2 |
<50 |
11 |
11500 |
2730x2290x2560 |
ML1800 |
1800 x 1280 |
13±2 |
<62 |
15 |
14000 |
2920x2300x2660 |
ML1800A |
1800 x 1400 |
13±2 |
<62 |
15 |
14000 |
2920x2300x2800 |
ML2000 |
2000 x 1400 |
12±2 |
<65 |
15 |
15500 |
3120x2330x3340 |
ML2200 |
2200 x 1400 |
12±2 |
<68 |
18 |
16500 |
3300x2330x3340 |
ML2500 |
2500 x 1400 |
12±2 |
<70 |
18 |
18500 |
3600X2330X3340 |
