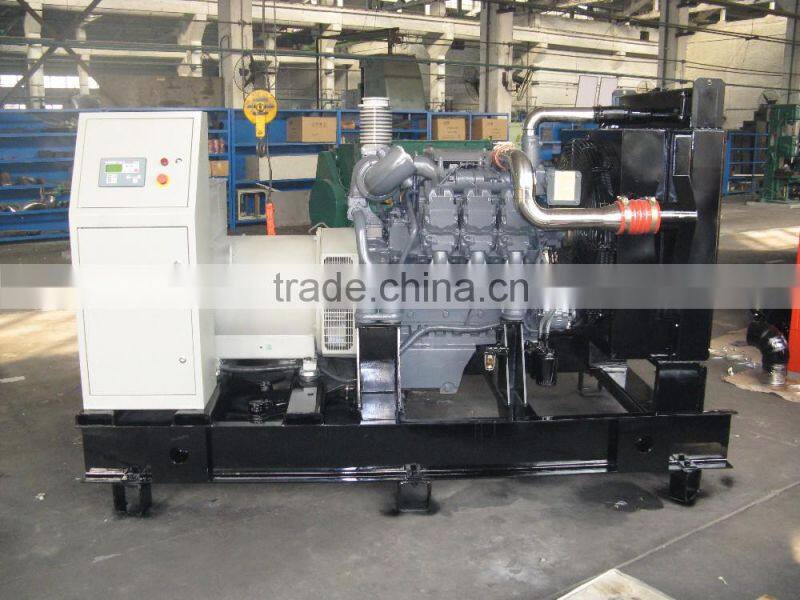

Diesel Generator 287kva Deutz Engine Water Cooled Good Quality Good Price

Name: Diesel Generator 287kva Deutz Engine Water Cooled Good Quality Good Price
Brand: Huachai
SKU: 113029857
Availability: InStock

Diesel Generator 287kva Deutz Engine Water Cooled Good Quality Good Price thumbnail-1

Diesel Generator 287kva Deutz Engine Water Cooled Good Quality Good Price photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Huachai

Model Number:

230GF

Contact Supplier Request Quote Chat Now

Hebei Huabei Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Huachai

Model Number 230GF

Output Type AC Three Phase

Speed 1500RMP

Frequency 50HZ

Rated Power 230KW

Rated Voltage 400/230V

Rated Current 415A

Generator-set Specification Data
Generator-set		Diesel Engine (DEUTZ)		Alternator (Stamford)
Model	230GF	Model	BF6M1015C-LA G2A	Model	HCI4D
Rated prime power	230KW	Prime power	256KW	Rated power	240KW
standby power	253KW	Stand power	285KW	Stand power	400V/230V
Rated voltage	400/230V	Rated speed	1500rpm	Efficiency	93.00%
Rated frequency	415A	No. of Cylinder	6	Rated current	433A
Rated currency	50Hz	Bore/stroke	132/145	Power factor	0.8
Power factor	0.8	Cylinder arrangement	V	Frequency	50Hz
Steady state volt deviation	≤±1%	Fuel consumption	203g/kwh	Protection/ insulation	IP23/H
Steady state frequency	≤1.5%	Start mode	24V electrical	Exciting way	brushless self-exciting
Frequency drop scope	≤5%	Governor	electronic	Weight	915kg
Phase	three phase	Aspiration type	Turbocharged inter-cooled
Base Frame	steel	Cooling way	Water cooled
Dimension (mm)	2800×1450×1950	Displacement	11.906L
Weight	3020kg	Weight	850kg
Running Condition:According:GB/T2820;Altitude:0~1000m;Ambient temperature:-35~40℃;Relative humidity :95%
Standard scope of supply:Generator-set assembly(diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket)
Option :base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system(including Weidian, Comap, Deep sea, etc).Different alternator brands available. One phase is optional.
Control system function:start and stop function. Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc. Failure protection(alarm and stop)function:over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop, low battery voltage alarm, stop failure alarm, emergency stop alarm, VAC/frequency over limit alarm, currency/power over load alarm, voltage unstable alarm, currency unstable alarm, belt broken alarm, etc.
