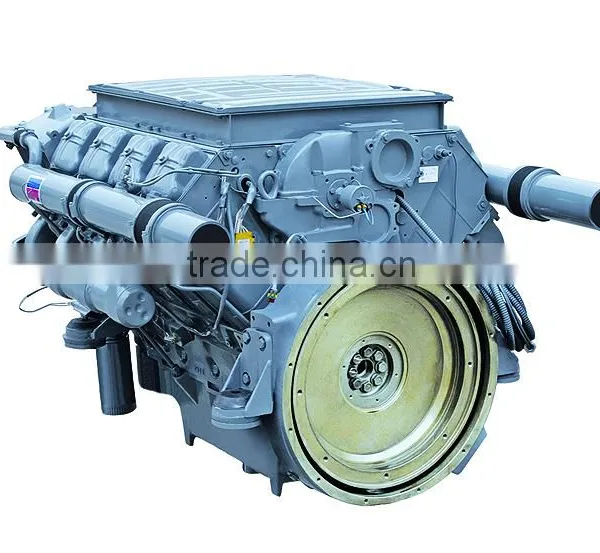

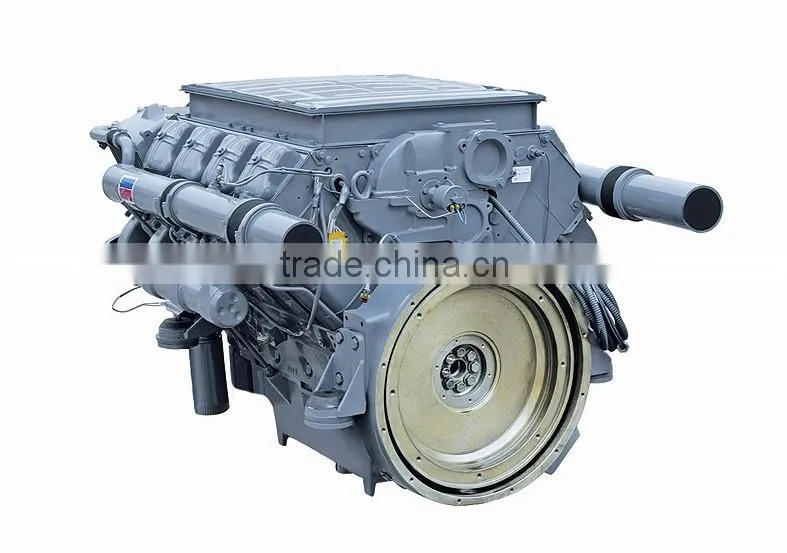

90kw 112.5kva Diesel Generator Air Cooled Diesel Engine Deutz Engine on Sale

Name: 90kw 112.5kva Diesel Generator Air Cooled Diesel Engine Deutz Engine on Sale
Brand: Huachai
SKU: 113029909
Availability: InStock

90kw 112.5kva Diesel Generator Air Cooled Diesel Engine Deutz Engine on Sale thumbnail-1

90kw 112.5kva Diesel Generator Air Cooled Diesel Engine Deutz Engine on Sale photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Huachai

Model Number:

90GF

Contact Supplier Request Quote Chat Now

Hebei Huabei Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Huachai

Model Number 90GF

Output Type AC Three Phase

Speed 1500RMP

Frequency 50HZ

Rated Power 90KW

Rated Voltage 400/230V

Rated Current 162A

Generator-set Specification Data

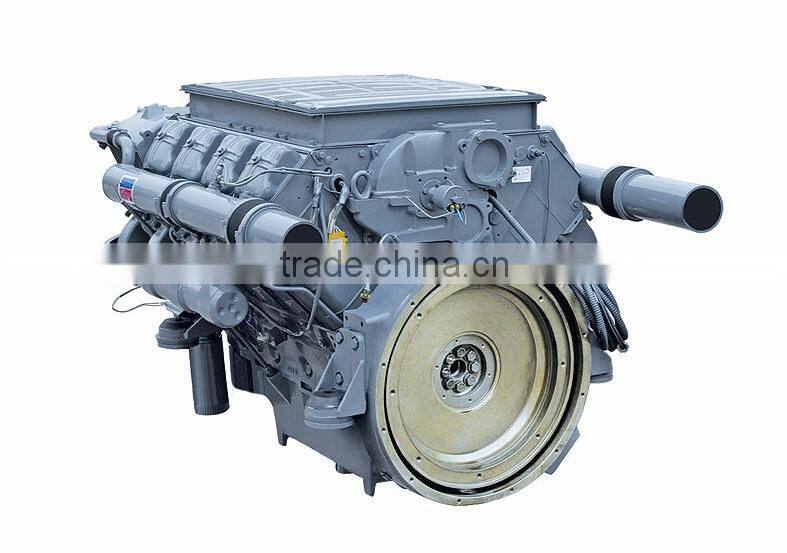

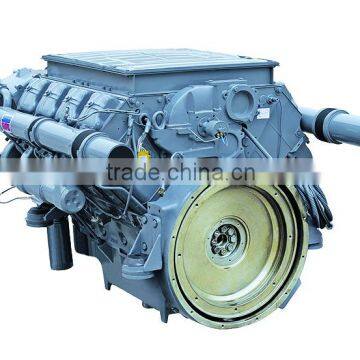

Generator-set		Diesel Engine (DEUTZ)		Alternator (Stamford)
Model	90GF	Model	F8L413F	Model	UCI274D
Rated prime power	90KW	Prime power	117KW	Rated power	96KW
Standby power	99KW	Stand power		Rated voltage	400V/230V
Rated voltage	400/230V	Rated speed	1500rpm	Efficiency	90.60%
Rated frequency	50Hz	No. of Cylinder	8	Rated current	173A
Rated currency	162A	Bore/stroke	125/130	Power factor	0.8
Power factor	0.8	Cylinder arrangement	V	Frequency	50Hz
Steady state volt deviation	≤±5%	Fuel consumption	217g/kwh	Protection/ insulation	IP23/H
Steady state frequency	≤2.5%	Start mode	24V electrical	Exciting way	brushless self-exciting
Frequency drop scope	≤8%	Governor	mechanical	Weight	455kg
Phase	three phase	Aspiration type	Naturally aspirated
Base Frame	steel	Cooling way	air cooled
Dimension (mm)	2200×1100×1100	Displacement	12.763L
Weight	1550kg	Weight	770kg
Running Condition:According:GB/T2820;Altitude:0~1000m;Ambient temperature:-35~40℃; Relative humidity :95%
Standard scope of supply:Generator-set assembly(diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket)
Option :base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system(including Weidian, Comap, Deep sea, etc). Different alternator brands available. One phase is optional.
Control system function:start and stop function. Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc. Failure protection(alarm and stop)function:over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop, low battery voltage alarm, stop failure alarm, emergency stop alarm, VAC/frequency over limit alarm, currency/power over load alarm, voltage unstable alarm, currency unstable alarm, belt broken alarm, etc.
