Specifications
1.fully-automatic blow molding machine2.Material: PET
3.Output:600-1200pcs/p
4.volume:0.1-10L
fully-automatic injection blow molding machine
Specification for injection blow molding machine :
Description of application:
1).Use screw of servo driver moving system.
2).Automatic feeding heating and blowing.
3).Patented preform feeding system for easy and safe.
4).Heating system for each lamp adjustment and constant SCR votage control system.
5).Touch screen human-machine interface for easy operation.
6).Modular component design for easy maintance.
7).Compact design for effective usage of floor space.
8).Intelligent flow control with high pressure valve.
|
Model |
Unit |
KT-5L |
KT-5L-2C |
KT-10L |
Theoretical output |
B.P.H |
600 |
1200 |
800 |
|
Container |
ntainer volume |
ltr |
5 |
5 |
10 |
Max. outer diameter |
mm |
45 |
45 |
45 |
|
Max.prefrom height |
mm |
140 |
140 |
250 |
|
ntainer diameter |
mm |
180 |
180 |
210 |
|
ntainer height |
mm |
360 |
360 |
430 |
|
Clamping System |
Number of cavitity |
cavities |
1 |
2 |
1 |
Calmping unit |
kg |
24000 |
48000 |
48000 |
|
Mold stroke |
mm |
200 |
200 |
240 |
|
Stretch stroke |
mm |
360 |
360 |
400 |
|
Bottom stroke |
mm |
30 |
50 |
50 |
|
Cavity pitch |
mm |
200 |
200 |
250 |
|
Heating pitch |
mm |
75 |
75 |
75 |
|
Number of holder |
pcs |
45 |
66 |
55 |
|
Electrical System |
Heating oven |
units |
2*2 |
3*2 |
3*2 |
Box*channel | |||||
Number of lamp |
pcs |
20 |
36 |
42 |
|
Heating power |
kw |
34 |
36 |
42 |
|
Installed power |
kw |
38 |
40 |
46 |
|
Voltage |
voltage |
220V/380V/3phase |
|||
Air System |
Operating |
kg/cm² |
7 |
7 |
7 |
Blowing pressure |
mpa |
3.5 |
3.5 |
3.5 |
|
High pressure air consuming |
l/min |
2800 |
5600 |
5600 |
|
Power |
kw |
22 |
44 |
44 |
|
Chiller System |
Temperature |
℃ |
10-15 |
10-15 |
|
Pressure |
mpa |
0.3-0.5 |
0.3-0.5 |
||
Flow rate |
l/min |
30 |
90 |
120 |
|
Heating power |
hp |
5 |
5 |
5 |
|
Machine |
L*W*H(Machine dimension) |
m |
3*1.6*1.9 |
3.8*2.2*2.2 |
3.8*2.2*2.4 |
Machine weight |
kg |
3200 |
5000 |
5000 |
|

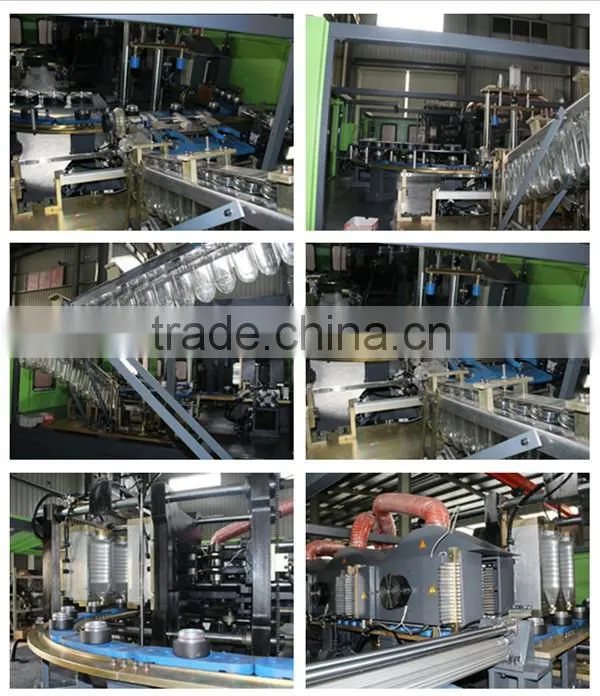

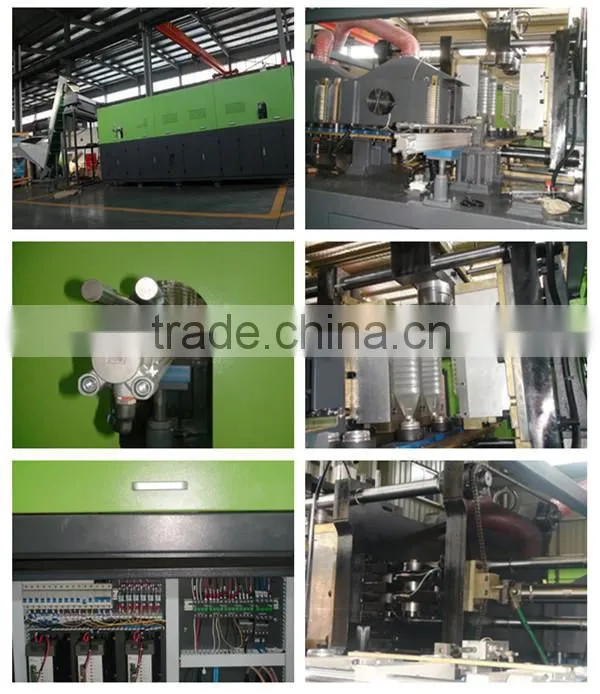

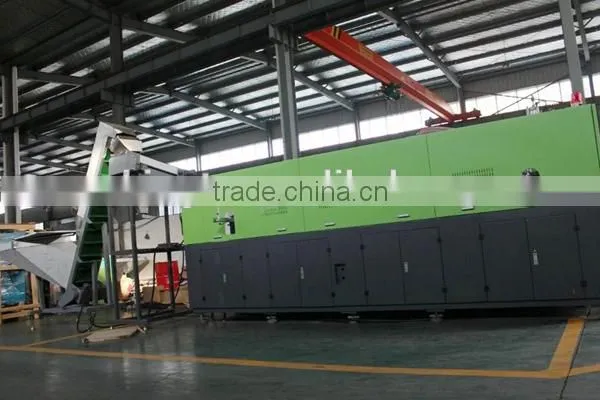

KINGTE machines for injection blow molding machine

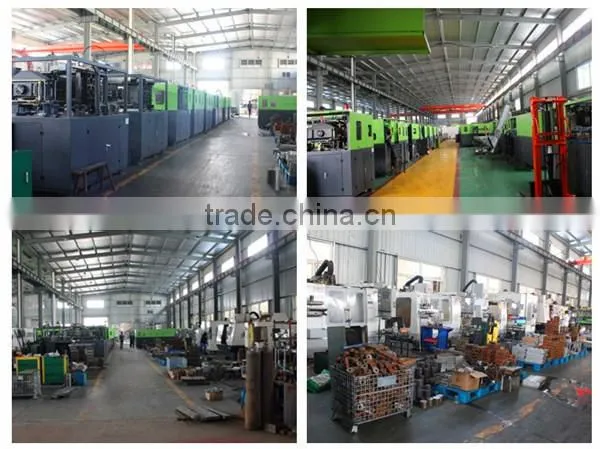

Workshop

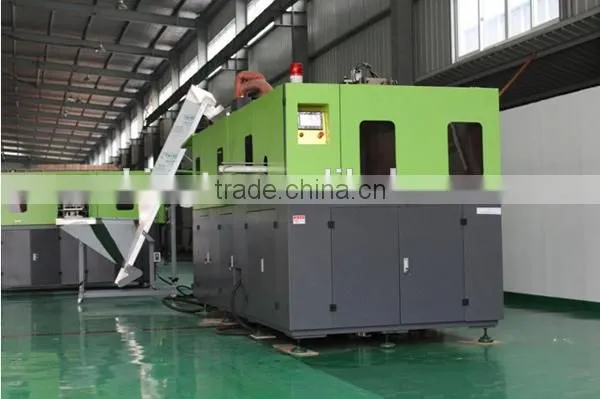

injection blow molding machine for bottles

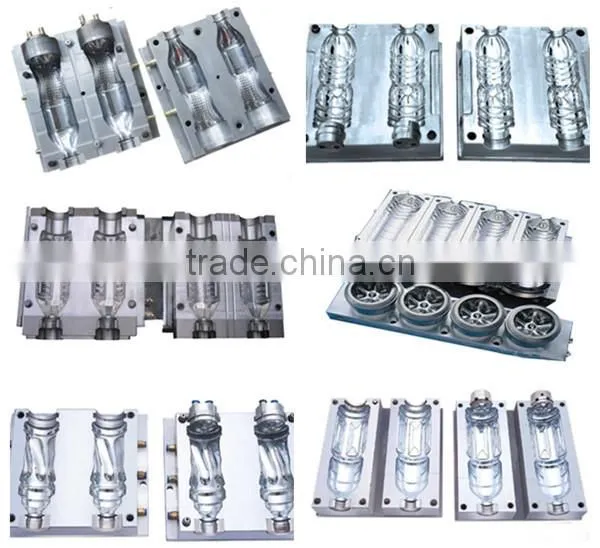

injection blow molding machine for mould
Blowing flow path:
Auxiliary for the machine
Delivery
Contact person:
1.your inquiry related to our product & price will be replied within 24hours.
2.Well-trained & experienced staff are to answer all your inquires in English of course.
3.OEM&ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after sale service offered, please get back if you got question.
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Huangyan,Taizhou city, Zhejiang Province, China.
It's near Ningbo & Shanghai port.
3.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends".
Taizhou Kingte people are always paying great attentions to quality controlling
from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
4.Q:How about guarantee?
A:one year or 2 million shots
5.Q:How about the spare parts?
A: we will offer you a spare parts list for your reference
