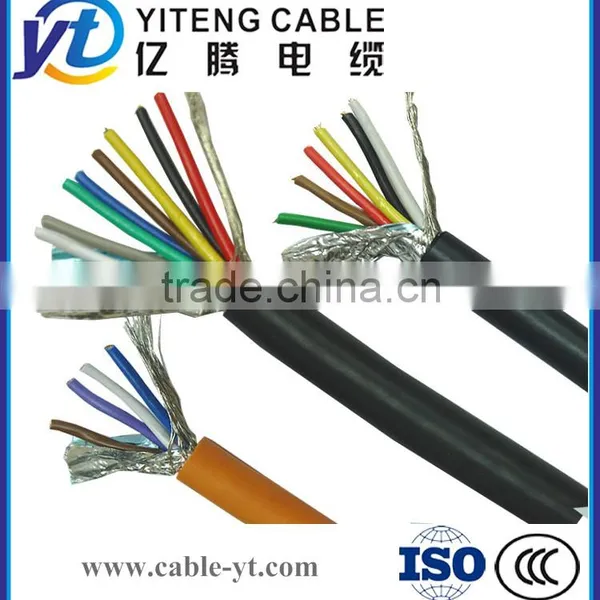

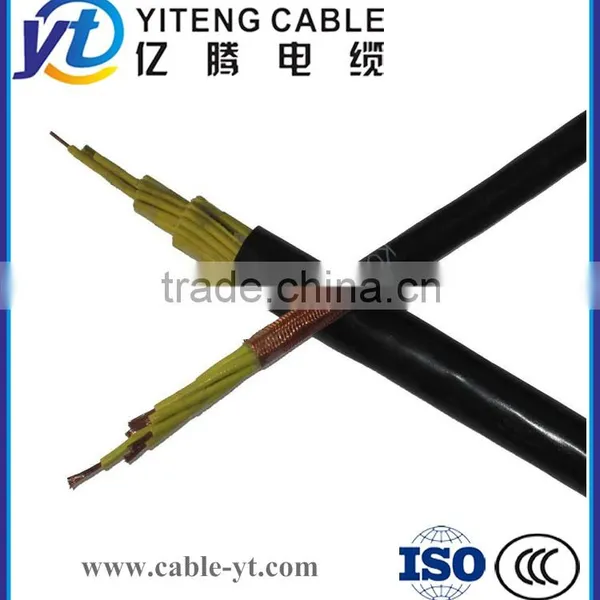

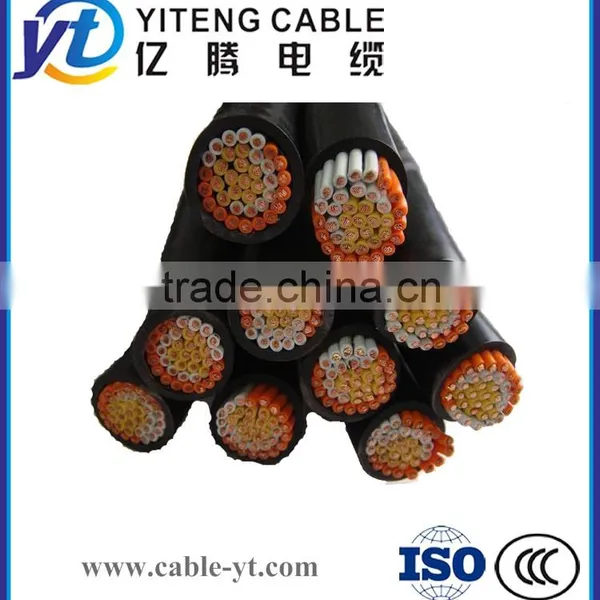

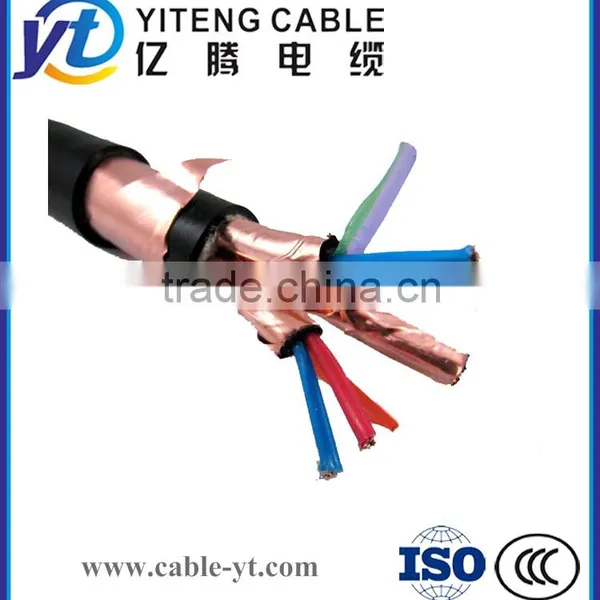

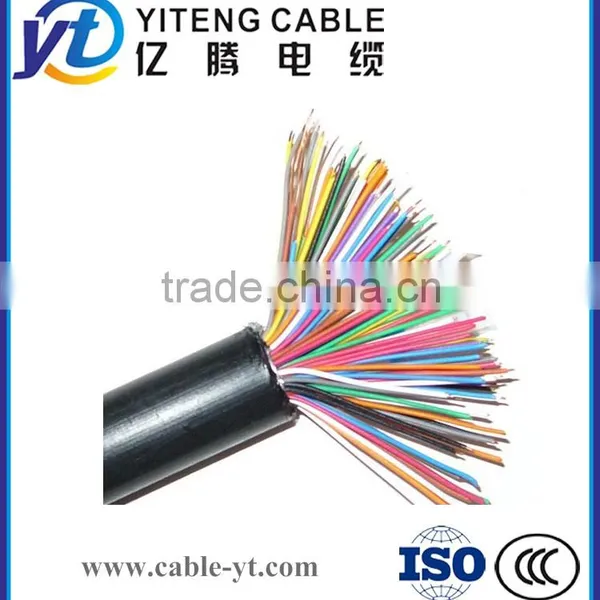

Copper Conductor PVC Insulated and PVC Sheathed Flexible Control CableCopper Conductor PVC Insulated and PVC Sheathed Flexible Control CableCopper Conductor PVC Insulated and PVC Sheathed Flexible Control CableCopper Conductor PVC Insulated and PVC Sheathed Flexible Control CableCopper Conductor PVC Insulated and PVC Sheathed Flexible Control Cable
Advantage
ISO9001
Factory
OEM
SGS
CCC certification
Standard
The control cable can be produced according to the standard GB9330-1988,and the factory can also manufacture the cables in accordance with other standards.
Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
The long-time working temperature of conductor of PVC insulated cable is 70°C
The long-time working temperature of conductor of XLPE insulated cable is 90°C
The temperature for laying the cables can not be lower than 0℃.Permissible bending radius(r):unarmored cable: r≥6D;(D: outer diameter of the cable);armored or copper-tape screened cable: r≥12D;shielded flexible cable: r≥6D
Type& Specification
Type |
Name |
Section Area(mm²) |
No. of Cores |
Application Site |
KVV |
Copper Conductor, PVC Insulated and Sheathed Control Cable |
0.75,1.0,1.5 2.5 |
2-16 |
Permanent installation indoors, in cable ditches or pipes |
4,6 |
2-14 |
|||
10 |
2-10 |
|||
KVVP |
Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Control Cable |
0.75,1.0,1.5,2.5 |
2-61 |
Permanent installation indoors, in cable ditches or pipes where shielding is required |
4,6 |
2-14 |
|||
10 |
2-10 |
|||
KVVP2 |
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable |
0.75,1.0,1.5,2.5 |
4-10 |
Permanent installation indoors, in cable ditches or pipes where shielding is required |
4,6 |
7-61 |
|||
10 |
4-10 |
|||
KVV22 |
Copper Conductor, PVC Insulated and Sheathed, Steel tape Armored Control Cable |
0.75,1.0,1.5,2.5 |
7-61 |
Permanent installation indoors, in cable ditches, Be able to withstand stronger external mechanical force |
4,6 |
4-14 |
|||
10 |
4-14 |
|||
KVVR |
Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable |
0.5,1.0,1.5,2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
KVVRP |
Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable |
0.5,0.75,1.0 |
4-61 |
Installation indoors where flexibility shielding and movability are required |
1.5,2.5 |
4-48 |
|||
KYJV |
Copper Conductor, XLPE Insulated and PVC Sheathed Control Cable |
0.75,1.0,1.5,2.5 |
2-16 |
Permanent installation indoors, in cable ditches or pipes |
4,6 |
2-14 |
|||
10 |
2-10 |
|||
KYJVP |
Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Control Cable |
0.75,1.0,1.5,2.5 |
2-61 |
Permanent installation indoors, in cable ditches or pipes where shielding is required |
4,6 |
2-14 |
|||
10 |
2-10 |
|||
KYJV22 |
Copper Conductor, XLPE Insulated, Steel-tape Armored, PVC Sheathed Control Cable |
0.75,1.0,1.5,2.5 |
7-61 |
Permanent installation indoors, in cable ditches, pipes or underground Be cable to with stand stronger external mechanical force |
4,6 |
4-14 |
|||
10 |
4-10 |
|||
KYJVP2 |
Copper Conductor, XLPE Insulated, Copper tape Screened, PVC Sheathed Control Cable |
0.75,1.0,1.5,2.5 |
7-61 |
Permanent installation indoors, in cable ditches or pipes where shielding is required |
4,6 |
4-14 |
|||
10 |
4-10 |
|||
KYJVR |
Copper Conductor, XLPE Insulated, PVC Sheathed Flexible Control Cable |
0.5,0.75,1.5,2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
KYJVRP |
Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable |
0.5,0.75,1.0 |
4-61 |
Installation indoors where flexibility shielding and movability are required |
1.5,2.5 |
4-48 |
Welcome to our factory! Hope to get in touch with you!
| Factory Name | Yiteng Cable Technology HebeiCo.,Ltd |
| Location | Ningjin Town, Shijiazhuang, Hebei, China |
| Establishes in | 1994, 20 years' experience of producing kinds of cables |
| Export Office Location | Area1 Donghai Building, Shijiazhuang, Hebei, China |
| Our Main Cables Products |
Low Voltage Power Cable and Medium Voltage Power Cable with or without Armor(Armor Type:Steel Tape or Steel Wire) High Temperature Cable,Silicone Rubber Insulated Cable, Teflon Insulated Cable Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Aluminum Alloy Cable with/ without Armor and Interlock Shielded/ Screened Control Cable Computer Shielded Cable Flexible Rubber Cable Electrical Wires |
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
3. High quality, reasonable and competitive price, fast lead time.
4. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery.
Sample order in stock, and 3-7 days for bulk production.
6. Payment
We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
7. Package
Standard Export Wooden or Steel Drums or as per Customer's Requirement
8. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products
