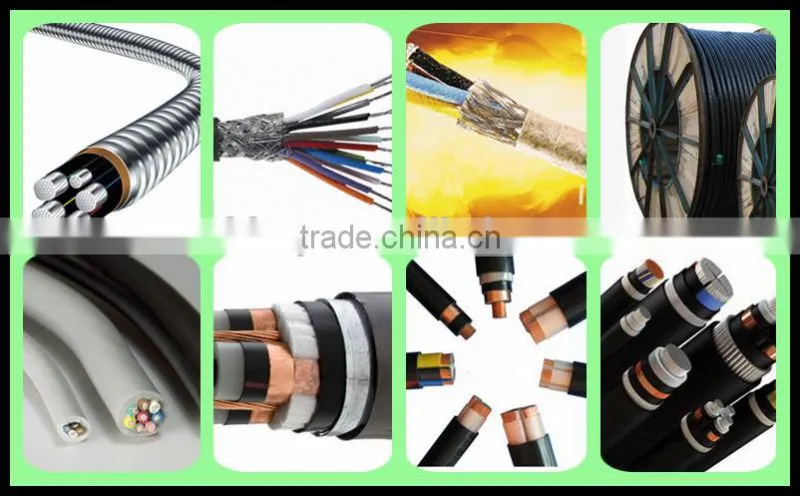

Al/PVC/SWA/PVC Cable 4-core 120mm Cable ( Armored

Name: Al/PVC/SWA/PVC Cable 4-core 120mm Cable ( Armored
Brand: YITENG
SKU: 113021131

US$ 0.5 - 25 MOQ: 100 Meters

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

YITENG

Model Number:

PVC

Yiteng Cable Technology Hebei Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name YITENG

Model Number PVC

Insulation Material XLPE

Type Medium Voltage

Application Industrial

Conductor Material Copper

Jacket Other, PVC, PVC, XLPE, PE or other

Al/PVC/SWA/PVC cable 4-core 120mm cable ( armored )

Main advantage

ISO9001

Factory

OEM

SGS

Product Description

Single core: ≥20(d+D)±5%.

Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor)

1. Material: Cooper, Aluminum

2. Rated voltage: low and medium voltage

3. Wire identification: Red, yellow, blue, white, black

4. No. Of cores : Single core cable: from 1.5 mm2 to 800 mm2; Multi-core cable: from 1.5 mm2 to 400 mm2

5. Standard: Low voltage: IEC60502-1 Medium voltage :IEC60502-2 or other requirement.

6. Insulation: PVC, XLPE, PE

Description & Application Occasion of cable

YJV	YJLV	XLPE insulation PVC sheath power cable	To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside
YJY	YJLY	XLPE insulation PE sheath power cable
YJV22	YJLV22	XLPE insulation, steel tape armor, PVC sheath power cable	To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force.
YJV23	YJLV23	XLPE insulation, steel tape armor, PE sheath power cable
YJV62	YJLV62	XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable
YJV32	YJLV32	XLPE insulation, thin steel-wire armor, PVC sheath power cable	Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint .
YJV72	YJLV72	XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable
YJV42	YJLV42	XLPE insulation, thick steel-wire armor, PVC sheath power cable	Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.

Type		Description	Application
VV	VLV	PVC insulated PVC sheathed power cable	To be laid at indoor, tunnel and tube . Cable cannot under take mechanism outside force
VY	VLY	PVC insulated and PE sheathed power cable	Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
VV22	VLV22	PVC insulated steel belt armored and PVC sheathed power cable	Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VV23	VLV23	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VV32	VLV32	PVC insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground and mining well . Cable can undertake mechanism outside force
VV33	VLV33	PVC insulated fine steel wire armored PE sheathed power cable	Can be laid at indoor, underground . Cable can under take mechanism outside force
VV42	VLV42	PVC insulated thick steel wire armored PE sheathed power cable	Can be laid at indoor, underground,mining well . Cable can under take mechanism outside force
VV43	VLV43	PVC insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground , mining well and the places
