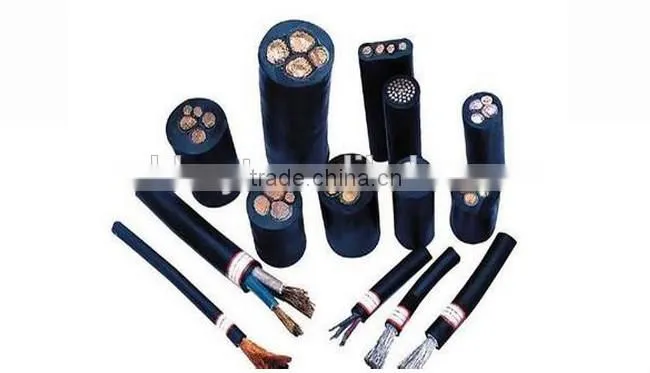

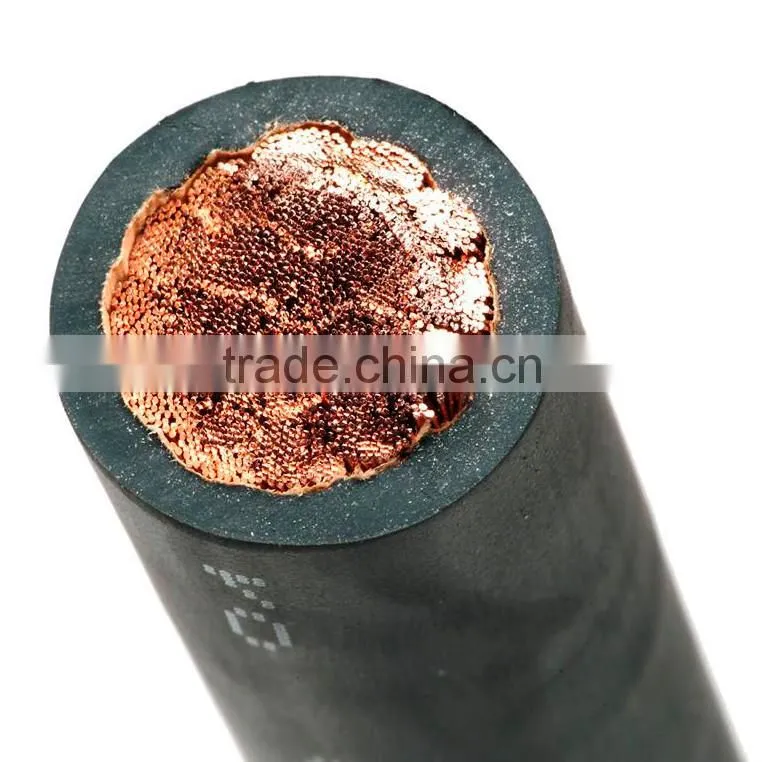

xlpe cable 300mm, xlpe cable 132kv, xlpe cable 11kv
Advantage
Main advantage
ISO9001
Factory
OEM
SGS
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor)
1. Material: Cooper, Aluminum
2. Rated voltage: low and medium voltage
3. Wire identification: Red, yellow, blue, white, black
4. No. Of cores : Single core cable: from 1.5 mm2 to 800 mm2; Multi-core cable: from 1.5 mm2 to 400 mm2
5. Standard: Low voltage: IEC60502-1 Medium voltage :IEC60502-2 or other requirement.
6. Insulation: PVC, XLPE, PE
1)
Description & Application Occasion of cable
Type |
Description |
Application n |
|
Cu |
Al |
||
YJV |
YJLV |
XLPE insulation PVC sheath power cable |
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY |
YJLY |
XLPE insulation PE sheath power cable |
|
YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable |
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable |
|
YJV62 |
YJLV62 |
XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable |
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable |
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
|
Special Note |
,6272.,. The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable. Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability. |
||
2)
Type |
Description |
Application |
|
VV |
VLV |
PVC insulated PVC sheathed power cable |
To be laid at indoor, tunnel and tube . Cable cannot under take mechanism outside force |
VY |
VLY |
PVC insulated and PE sheathed power cable |
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
VV22 |
VLV22 |
PVC insulated steel belt armored and PVC sheathed power cable |
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
VV23 |
VLV23 |
PVC insulated steel belt armored and PE sheathed power cable |
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
VV32 |
VLV32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground and mining well . Cable can undertake mechanism outside force |
VV33 |
VLV33 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground . Cable can under take mechanism outside force |
VV42 |
VLV42 |
PVC insulated thick steel wire armored PE sheathed power cable |
Can be laid at indoor, underground,mining well . Cable can under take mechanism outside force |
VV43 |
VLV43 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground , mining well and the places |
We can product other product and accept OEM .If you have any question or requirement ,contact me .
Skye: betty15612
Mail :betty(at)
Other product:
Power cable
Rubber cable
Control cable
Shielded cable
Mining cable
Special cable
......
