Specifications
android 4.2 Mini pc TV box1.More powerful
2.Best Qaulity, CE Approval

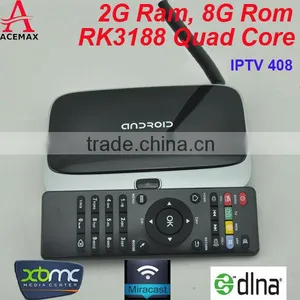

2013 Newest Arrival Mini pc TV box Quad core RK3188 Android 4.2 2G RAM 8G ROM 1080P with Remote
Moldel No.: IPTV 408 (Quad Core IPTV XBMC Box)
Hardware Spec:
Operation System | Android 4.2.2 |
Language | Multi-Languages support |
Chipset | RK3188 28nm Cortex-A9 Quad core. |
GPU: | Embedded 3D GPU Mali 400, High frequency 500Mhz, Support OpenGL ES 1.1/2.0 and OpenVG 1.1. |
SDRAM | DDR3 2GB |
Nand Flash | 8GB Nand Flash (Optional:4GB/16G/32G) |
Storage Extension | Support MicroSD(TF),up to 32GB |
Network | WiFi 802.11 b/g/n,LAN 10/100M Base-T |
Power Supply | DC 5V/2A
|
Interface:
HDMI Out | 1xHDMI(A type Male),HDMI1.3 Full HD 1920x1080P |
USB Port | 2XUSB Host |
Data Output | 1xSPDIF |
Card Reader | 1X Micro SD card (TF card)reader |
AV Out | 1x3.5mm Headphone Jack |
Network | 1xRJ45 LAN Port |
Power Supply | 1xDC Jack(2.1mm) |
Antenna | External WiFi antenna |
Media Parameter:
Audio Container | Support MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE, FLAC,AAC,M4A,3GPP…etc. audio formats,Multi-EQ mode,Support Synchronized lyrics and full-page lyric display. |
Audio Out | HDMI Data Output |
Video Decoder | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,AVS,VC-1,RV,VP6/VP8,Sorenson Spark,MVC 1920x1080P 60FPS |
Video Encoder | H.264,VP8,MVC(1080P) |
Resolution | Full HD1080P@30fps |
H.264 Data Rate | Up to 60Mbps |
Image browser | Support JPG,JPEG,BMP,GIF,PNG,TFIF…etc photo formats.Maximum resolution up to 8192x8192. |
Text-Reading | Support TXT,LRC,PDF,Html,Htm,EPUB…etc formats(depends on APK install). |
Software Extension | Support Google Play,XBMC Frodo 12.2 & APK install. |
DLNA,Wimo Protocol | Support DLNA,Wimo Protocol,Support Miracast,Airplay |
Remote Control | Support Smart phone remote control,2.4GHZ wireless air mouse/QWERTY Keyboard,IR Remote controller. |
IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK install) |
Office Softare | WORD/EXCEL/PDF(Depends on APK install) |
Others Parameters:
| -10~40°C |
Storage Temperature | -20~50°C |
Humidity environment | 5%-90%(No condensation) |
Certification | CCC,CE,EMC,FCC,Wi-Fi
|
Package:
Dimension | 142x95x21mm |
Net Weight | TBD |
Carton Box Size | L412*W362*H294mm |
Gift Box Size | L172*W130*H78mm |
Accessory List
1.Standard Package: 1xQSG,1xAdapter(DC 5V/2A),1xHDMI Cable,1x3.5mm AV Cable,1xIR Remote Controller
2.Optional Package: 2.4G Wireless Air Mouse,2.4G Wireless mouse and keyboard,USB Cable
If the content has any discrepancy with the player, ACEMAX has the rights of final explanation.
