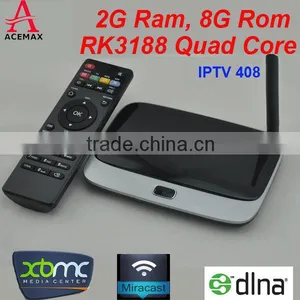

RK3188 quad core android tv box with Android 4.2.2 Support Miracast

Operation System

Android 4.2.2

Language

Multi-Languages support

Chipset

RK3188 28nm Cortex-A9 Quad core.

GPU:

Embedded 3D GPU Mali 400, High frequency 500Mhz, Support          OpenGL ES 1.1/2.0 and OpenVG 1.1.

SDRAM

DDR3 2GB

Nand Flash

8GB Nand Flash (Optional:4GB/16G/32G)

Storage Extension

Support MicroSD(TF),up to 32GB

Network

WiFi 802.11 b/g/n,LAN 10/100M Base-T

Power Supply

DC 5V/2A

HDMI Out

1xHDMI(A type Male),HDMI1.3 Full HD 1920x1080P

USB Port

2XUSB Host

Data Output

1xSPDIF

Card Reader

1X Micro SD card (TF card)reader

AV Out

1x3.5mm Headphone Jack

Network

1xRJ45 LAN Port

Power Supply

1xDC Jack(2.1mm)

Antenna

External WiFi antenna

Audio Container

Support MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,

FLAC,AAC,M4A,3GPP…etc. audio formats,Multi-EQ mode,Support Synchronized lyrics and full-page lyric display.

Audio Out

HDMI Data Output

Video Decoder

MPEG-1,MPEG-2,MPEG-4,H.263,H.264,AVS,VC-1,RV,VP6/VP8,Sorenson Spark,MVC 1920x1080P 60FPS

Video Encoder

H.264,VP8,MVC(1080P)

Resolution

Full HD1080P@30fps

H.264 Data Rate

Up to 60Mbps

Image browser

Support JPG,JPEG,BMP,GIF,PNG,TFIF…etc photo formats.Maximum resolution up to 8192x8192.

Text-Reading

Support TXT,LRC,PDF,Html,Htm,EPUB…etc formats(depends on APK install).

Software Extension

Support Google Play,XBMC Frodo 12.2 & APK install.

DLNA,Wimo Protocol

Support DLNA,Wimo Protocol,Support Miracast,Airplay

Remote Control

Support Smart phone remote control,2.4GHZ wireless air mouse/QWERTY Keyboard,IR Remote controller.

IM Software

Support Skype/QQ/MSN/GTALK (Depends on APK install)

Office Softare

WORD/EXCEL/PDF(Depends on APK install)

Operationg Temperature

-10~40°C

Storage Temperature

-20~50°C

Humidity environment

5%-90%(No condensation)

Certification

CCC,CE,EMC,FCC,Wi-Fi

Dimension

142x95x21mm

Net Weight

TBD

Carton Box Size

L412*W362*H294mm

Gift Box Size

L172*W130*H78mm
