Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 1U 8 Port EPON GPON Standalone 8PON Port OLT

1U 8 Port EPON GPON Standalone 8PON Port OLT

Shenzhen Bton Weiye Technology Co., Ltd.

1U 8 Port EPON GPON Standalone 8PON Port OLT photo-1

US$ 60 - 95 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

BT-8p-olt

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name BT

Model Number BT-8p-olt

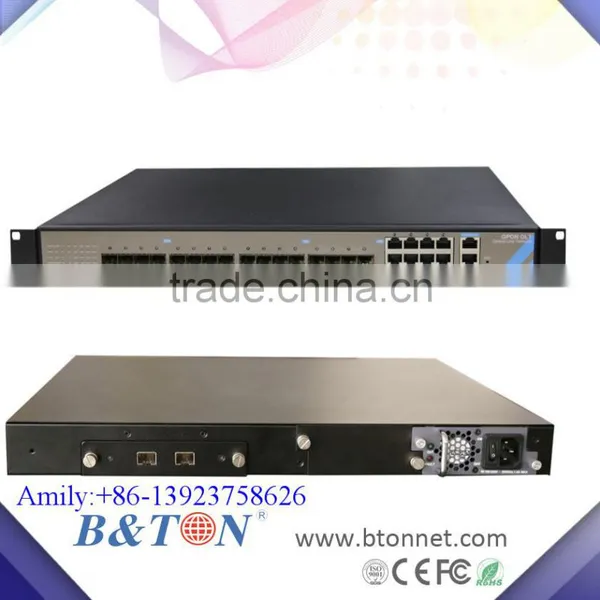

1U 8 port EPON GPON standalone 8PON Port OLT

FD1508GS or FD1108Sis the GEPON OLT optical line terminal equipment. It can support 8 GEPON PON ports and connect 512 ONU at most (by 1:64 splitter), and provides 8 GE and 8 SFP combo uplink ports.

Product Description

It presents the industry's leading GPON solution of FD1508GS, which complies with the relevant standards of ITU G.984.x and FSAN. FD1508GS is 1U Rack mount equipment, 8pon ports, 8 GE uplink optic ports, 8 GE uplink electric ports. The maximum optical coupling ratio of 1:128, up to 1024 GPON ONTs. The down link band width is 2.5Gbps and uplink bandwidth is 1.25Gbps. The product is in compact design and convenient for flexible using, easy to deploy with high performance. It can meet the requirements of equipment performance and compact volume of the room environment. It can also satisfy the requirements of the access network and enterprise network that enhancing the network function, improving the reliability and reducing power consumption. The product is suitable for the "triple play" service, the resident of optical access network, video surveillance network, enterprise network and the Internet of the network applications.

Features

Item		FD1508GS FD1108S
Chassis	Rack	1U 19 inch standard box
Chassis	Slots	1*10 Gigabit uplink card slot 2 power module slot
Uplink Port	Copper	*810/100/1000M auto-negotiable**
	SFP	8 SFP slots(1000BASE-TX interface)
	10GE card	2 SFP (optional)
PON Port	QTY	8
	Physical Interface	SFP Slots
	Connector Type	ITU-TG.984.2Class B+
	Max splitting ratio	1:128
Management Ports		1 10BASE-TX out band port 1 CONSOLE port
PON Port Specification (Apply to C-Data PON module)		Transmission Distance :20KM, PON port speed: Downstream Data Rate: 2.5Gbps, Upstream Data Rate: 1.25Gbps, Wavelength: 1490nm TX,1310nm RX, Connector: SC, Fiber Type: 9/125μm SMF, TX Power: +1.5~+5dBm, Rx Sensitivity: -28dBm, Saturation Optical Power: -8dBm
Management Mode		SNMP, Telnet, CLI
Management Function		Support for state monitoring, configuration management, equipment log, equipment upgrades, equipment management, user management.Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc. PON management function: DBA ,ONT authorization, ACL, QOS, etc. Online ONT configuration and management. User management. Alarm management
Dimension		*440mm(L)391mm(W)44mm(H)*
Weight		4kg
Power Supply	220VAC	AC: 90V~240V,47/63Hz
Power Supply	-48DC	DC:-36V~-72V
Power Consumption		65W
Operating Environment	Working Temperature	0~50℃
	Storage Temperature	-40~85℃
	Relative Humidity	5~90%(non condensing)

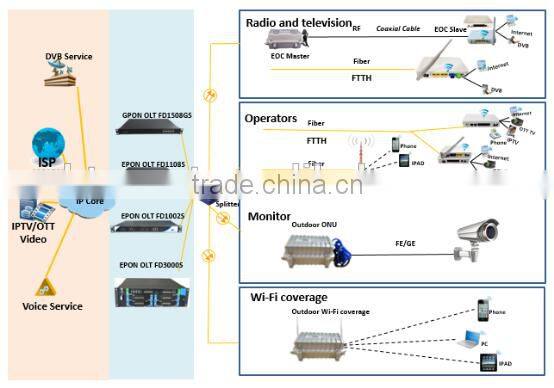

Application&solution

Certifications

Order Information

Product Name	Model	Product Description
Standalone OLT	FD1508GS	8PON GPON OLT 1U chassis, 8 GE uplink optic ports, 8 GE uplink electric ports, 220VAC or -48VDC plug-in power modules, supports dual power configuration, optional 10Gbit uplink port
Ethernet SFP optical module	SFP-GFX-D20	Gigabit Ethernet SFP optical module, the default 20KM double fiber model
OLT SFP optical module	OLT-SFP-B+	ITU-TG.984.2Class B+
10Gb uplink card	FD1502GX	*210Gb uplink interface, can be installed in the FD1508GS frame**
