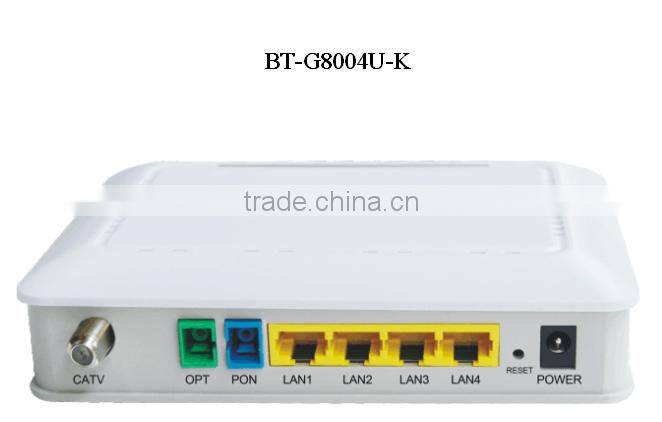

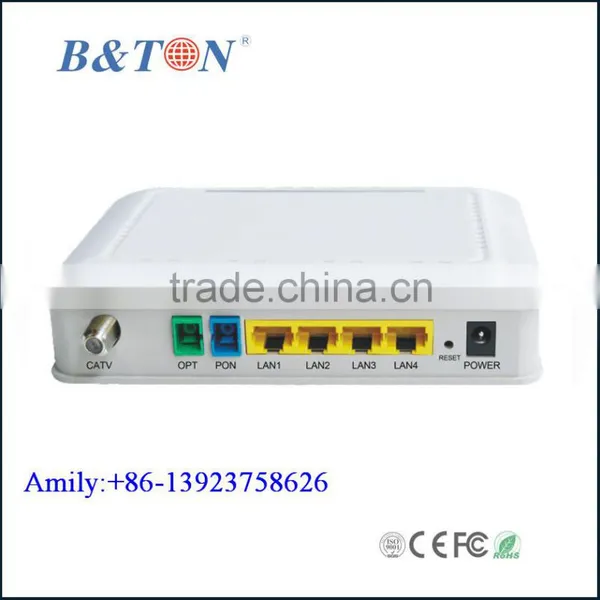

4GE+1Fiber+WIFI+CATV GEPON ONT GPON Modem Router Compatible with Huawei OLT

BT-G8004U-K type ONU products fully comply with ITU-T G.984 GPON standards.. It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.

Product features:

Conform to ITU-T G.984 GPON standards.

Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services

Support frame filtering and suppression

Support standard 802.1Q Vlan function, support VLAN conversion

Support 4094 VLANs (802.1Q)

Support Dynamic Bandwidth Allocation (DBA) function

Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc

Single ONU supports up to 1 LLID.

Support IGMP Snooping

Support Ethernet port ratelimit loop detection

Support power failure alarm

Support lightning protection for power supply and lightning protection for service port

Complies with 2.4GHz IEEE802.11n v2.0 and bacKWFard compatible with IEEE 802.11b/g standards

Supports NAT/NAPT IP sharing

WAN Protocols: PPPoE/StaticIP/PPTP/DHCP

Supports advanced 2T2R MIMO technology to enhance the throughput and coverage range significantly

High speed data rate - up to 300Mbps

CATV service function

CATV radio frequency feature (optional)

Output level 95dBuv (input-6dBm)

AGC working range 10dB CNR ≥46dB@-6dBm (input)

Port features:

1 PON ports (2.5G)

4 10/100M port

1 WLAN Port

1 CATV Port

1 Fiber Port

Physical features:

Power supply: 12VDC

Power consumption: 8W

Temperature:
Working temperature:0~55℃
Storage temperature: -30~60℃
Relative humidity: 10~90% (non-condensing)
