1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module

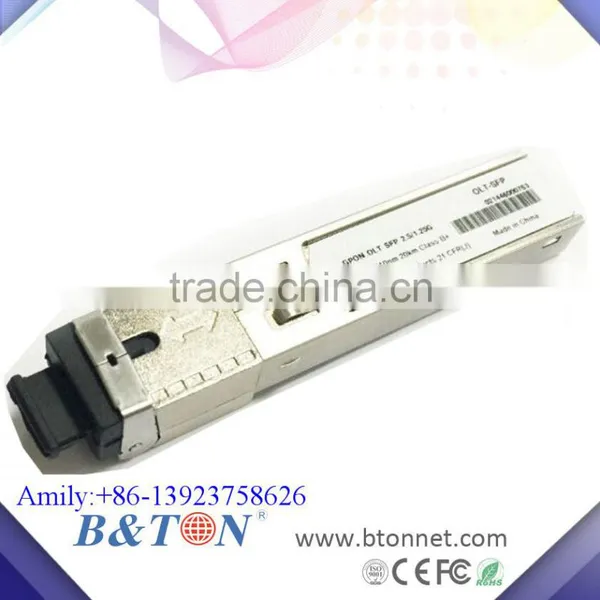

1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module photo-1
US$ 60.00 - 60.00 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bton
Model Number:
BT-PON SFP
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Bton
Model Number BT-PON SFP

1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module

1.Original factory
2.Data rate 1.25G
3.Distance 40Km
4.CE RoHS FCC

Product Description

The GPON OLT transceiver is small form factor pluggable module for serial optical data communications such as ITU-T G.984. It is with the SFP 20-pin connector to allow hot plug capability.This module is designed for single mode fiber and operates at a nominal wavelength of 1490 nm.The transmitter section uses a 1490nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825.( GPON OLT SFP,2.5G/1.25G TX/RX,1490nm/1310nm,20km,SC/UPC,-5 ~ +70 centigrade )

Features
• Bi-directional 2.488Gbps Downstream/1.244Gbps Downstream Upstream
• EEPROM with Serial ID Functionality
• Compliant with ITU-G.984.2
• SFP package with SC receptacle
• Maximum 20km reach
• Support Digital Diagnostic Monitoring interface
• 1490nm Burst mode transmitter, 1310nm Continuous Mode Receiver
• Single + 3.3V Power Supply and TTL Logic Interface
• Operating temperature:0~70 ºC
• RoHS6 Compliant
Application&solution
  • FTTH
  • Gigabit Passive Optical Networks

1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module



Certifications

 1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module

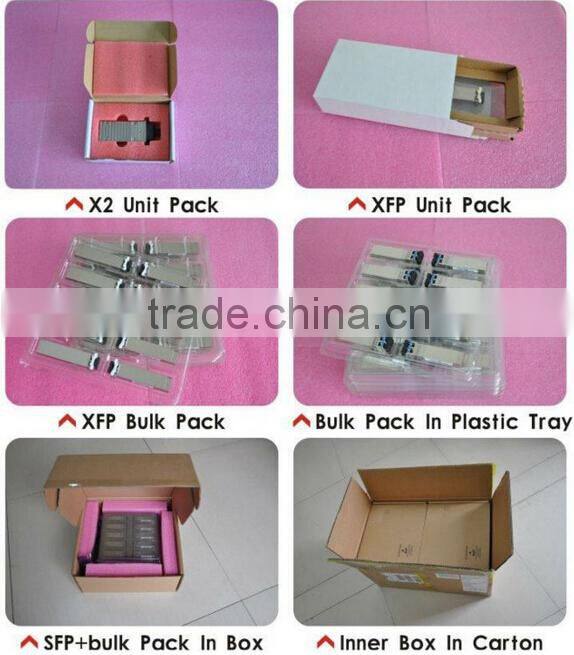

Packaging & Shipping

 1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module

1.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.

2.Item shipped by sea and air or UPS,FedEX,DHL and others, depending on size and weight of total order.

3.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.

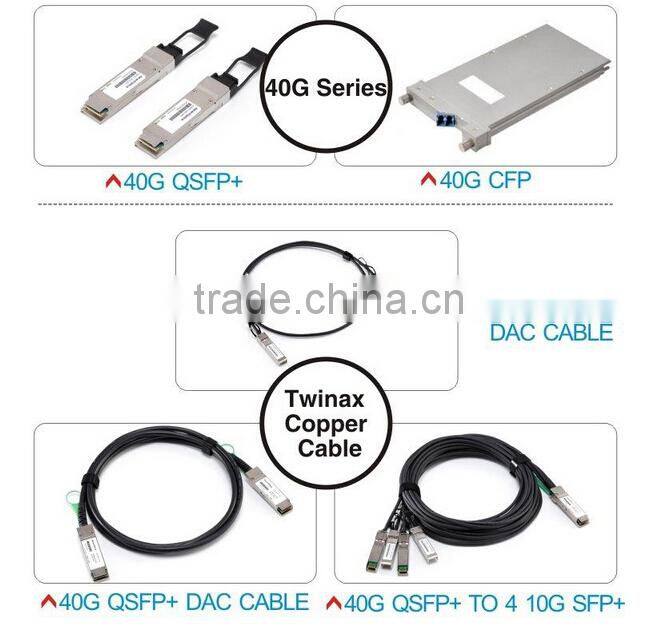

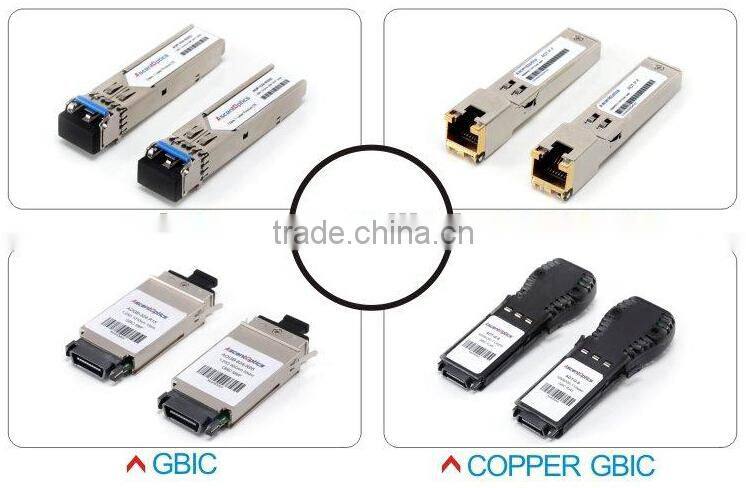

Related Products

 1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module

Company Information

  Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.

1490nm/1310nm 20km GPON SFP Class B+ GPON OLT Transceiver Module

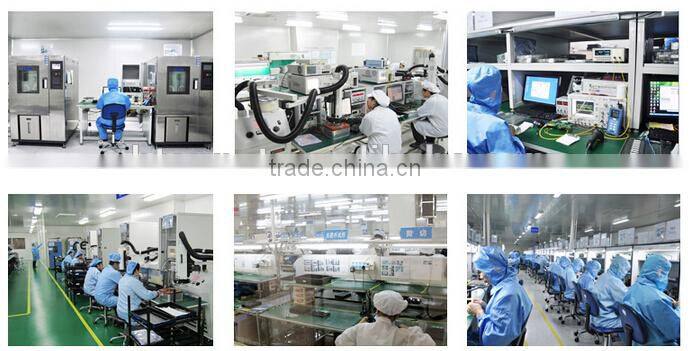

workshop& Quality
