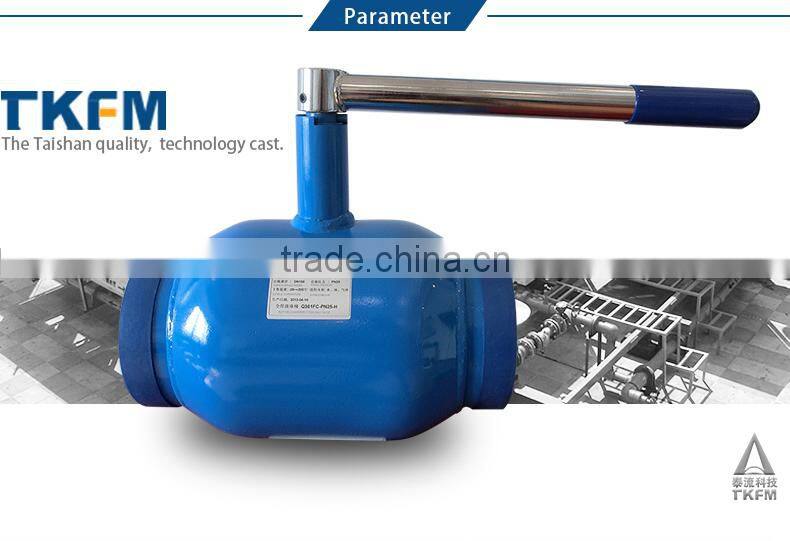

Handle Soldering Ptfe Lined Solenoid Ball Valve

Handle Soldering Ptfe Lined Solenoid Ball Valve thumbnail-1
Handle Soldering Ptfe Lined Solenoid Ball Valve photo-1
US$ 13 - 380 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Shenyang Taike Fluid Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Manual
Material Stainless Steel
Temperature of Media Medium Temperature
Media Water
Port Size DN20-150(3/4"-6")
Place of Origin Liaoning, China
Model Number HQG61FC-25
Brand Name TKFM
Product Description



Handle soldering ptfe lined solenoid ball valve

This series of products are reliable sealing performance, maintenance-free for 20 years, loading and unloading can be achieved at any time, reliable sealing performance, with path has a large flow characteristics, and can be installed in heat transfer machine room, heat the main line, branch piping, heat exchangers and other equipment supporting or device is connected, use for cut off, the main use of urban heat, city gas, city water supply and drainage lines.

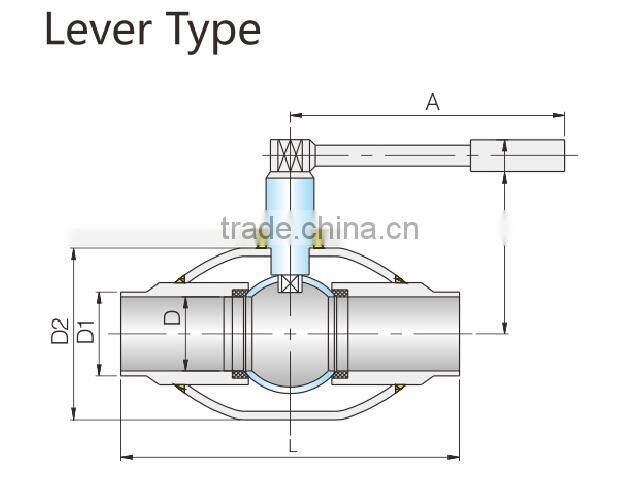

 Handle soldering ptfe lined solenoid ball valve

 unit: millimetre(mm)
Size NPS A b L D D1 D2
CN EU
DN15 3/8 129 90 210 15 18 21.3 42.7
DN20 3/4 159 103 230 20 25 26.7 48
DN25 1 159 107 260 25 32 33.4 60
DN32 1-1/4 230 120 260 32 42 42.2 76
DN40 1-1/2 230 126 300 40 48 48.3 89
DN50 2 300 177 300 50 57 60.3 114
DN65 2-1/2 300 186 300 65 76 76.1 140
DN80 3 400 210 300 80 89 88.9 165
DN100 4 400 214 325 100 108 114.3 216
DN125 5 450 220 350 125 133 141.3 219
DN150 6 450 280 490 150 159 168.3 355



Handle soldering ptfe lined solenoid ball valve



(1)shell Hydrostatic Test

ANSI  B 16.34 Section 7.1

Valve Size NPS

Test Pressure

Test Time.Sce

DN50 below

1:5 times zhe100° F

15 seconds

DN65~DN200

Rating of ANSI Class

60 seconds

DN250  above

Max.Operating Pressure

180 seconds



Check the pressure to more than 1.5 times higher than the maximum pressure valve





(2)Seal  Hydrostatic Test

     The pressure should be more 1.1times than working pressure by seal hydrastatic test

Handle soldering ptfe lined solenoid ball valve





ANSI  B 16.34 Section 7.2

Valve Size NPS

Test Pressure

Test Time.Sce

DN50 below

1:5 times zhe100° F

15 seconds

DN65~DN200

Rating of ANSI Class

30 seconds

DN250  above

Max.Operating Pressure

60 seconds



Check the pressure to more than 1.5 times higher than the maximum pressure valve (100 f)

120 seconds



(3)Seal Air Test

     Seal air leakage test is based on 80PSIG(6kgf/cm2)nin-actiue gas of full lilled with  air, after clase zhe valve.then check it is leakage or not by one side of zhe valve



NO

Part name

Material

1

Body

Carbon steel St37.8

2

neck

PTFE+SPCB

3

Ball

304 Stainless steel

4

Stem

2Cr13

5

Seat

25%C+PTFE

6

Metal washer

60Si2MN

7

Spring

60Si2MN

8

“O”Ring

FPM

9

End piece

Carbon steel St.37.8

10

Handle

Carbon steel+HCr

11

 “O”Ring

FPM

12

Gland

304



Size:full port&standard diameter DN20-150(3/4"-6")

Pressure:below 2.5Mpa

Temperature:-40℃~+200℃

Medium:water,gas,oil,solid particle,mixed medium etc.(Non-corrosive)

Operation:manual/with gear/electrical/worm gear/pneumatic/hydraulic

Advantage:

   International certificate and standard

   Design for water,oil and gas pipe line use

   As long life as pipeline system

   Maintenance free, low cost

   Two-way valve

main characteristics:

One-piece welded body & End piece connection pipe (Connection dimension to ASTM / EN / KS / JIS / GOST

Standard .etc will be available.

Bubble tight excellent sealing with PTFE+C seats.

Pre-loaded seat springs ensure leak-tight at low pressure and reduce valve operational torque.

Anti blow-out stem.

Double O-rings ensure the stem sealing and are replaceable.

Stem dry bearing, metal with PTFE coating having self-lubricating capabilities
