TKFM Factory Directly Float Ball Reduce Bore Pneumatic Fully Welded Ball Valve

TKFM Factory Directly Float Ball Reduce Bore Pneumatic Fully Welded Ball Valve thumbnail-1
TKFM Factory Directly Float Ball Reduce Bore Pneumatic Fully Welded Ball Valve photo-1
US$ 27 - 1,652 MOQ: 10 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Shenyang Taike Fluid Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Pneumatic
Material Stainless Steel
Temperature of Media Medium Temperature
Media Water
Port Size DN50-350(2"-14")
Place of Origin Liaoning, China
Model Number HQG661FC-25
Brand Name TKFM
Application General
Product Description

 TKFM factory directly float ball reduce bore pneumatic fully welded ball valve

TKFM factory directly float ball reduce bore pneumatic fully welded ball valve

 unit:millimetre(mm)
Size NPS A b L D D1 D2
CN EU
DN15 3/8 129 64 210 15 18 21.3 42
DN20 3/4 129 64 230 15 25 26.7 42
DN25 1 159 76 230 20 32 33.4 48
DN32 1-1/4 159 85 260 25 42 42.2 60
DN40 1-1/2 230 95 300 32 48 48.3 76
DN50 2 230 100 300 40 57 60.3 89
DN65 2-1/2 300 159 300 50 76 76.1 114
DN80 3 300 170 300 65 89 88.9 140
DN100 4 450 192 325 80 108 114.3 185
DN125 5 450 208 325 100 133 141.3 216
DN150 6 450 241 350 125 159 168.3 219

TKFM factory directly float ball reduce bore pneumatic fully welded ball valve

 unit:millimetre(mm)
Size NPS A b L D D1 D2
CN EU
DN15 3/8 129 90 210 15 18 21.3 42.7
DN20 3/4 159 103 230 20 25 26.7 48
DN25 1 159 107 260 25 32 33.4 60
DN32 1-1/4 230 120 260 32 42 42.2 76
DN40 1-1/2 230 126 300 40 48 48.3 89
DN50 2 300 177 300 50 57 60.3 114
DN65 2-1/2 300 186 300 65 76 76.1 140
DN80 3 400 210 300 80 89 88.9 165
DN100 4 400 214 325 100 108 114.3 216
DN125 5 450 220 350 125 133 141.3 219
DN150 6 450 280 490 150 159 168.3 355



Pneumatic Executor:

Model A B C D E F G H I J K L M N Φ0 A120 A180 Air
TBN032 114 45 47 65 23.5 23.5 14 50 25 - F03Φ36 - M5x8 9 30 - - G1/8
TBN052 158.4 74 60 94 30 41 14 80 30 F05Φ36 F03Φ36 M6x11 M5x10 11 40 168.9 190 G1/4
TBN063 190 88 69 108 36 45 18 80 30 F07Φ70 F05Φ50 M8x15 M6x12 14 40 202.5 228 G1/4
TBN075 207 100 79 120 42 52 20 80 30 F07Φ70 F05Φ50 M8x13 M6x11 14 40 221.5 254 G1/4
TBN083 213 109 88 129 46 52.5 21 80 30 F07Φ70 F05Φ50 M8x15 M6x12 17 40 227.5 257 G1/4
TBN092 259 120 97.5 140 51 57.5 22 80 30 F07Φ70 F05Φ50 M8x13 M6x12 17 40 276 315.5 G1/4
TBN105 287 133 105.5 153 57.5 64 24 80 30 F10Φ102 F07Φ70 M10x18 M8x14 22 40 308 350 G1/4
TBN125 340 155 120.5 175 67.5 70 27.5 80 30 F10Φ102 F07Φ70 M10x18 M8x14 22 65 366.5 418.5 G1/4
TBN140 414 171.5 137 191.5 76 77 32 80 30 F12Φ125 F10Φ102 M12x22 M10x18 27 65 445.8 508.5 G1/4
TBN160 476 197 159.5 217 86.5 87.5 34 80 30 F12Φ125 F10Φ102 M12x22 M10x18 27 65 512.8 586 G1/4
TBN190 535 230 186 260 103 103 40 130 30 F14Φ140 - M16x23 - 36 78 577 660.7 G1/4
TBN210 567.5 255 202 285 113 113 40 130 30 F14Φ140 - M16x25 - 36 78 614.7 709 G1/4
TBN240 668 291.4 233 321.4 129 129 50 130 30 F16Φ165 - M20x28 - 46 78 725 838

G1/2

(1/4)
TBN270 744 320 264 350 146 146 57 130 30 F16Φ165 - M20x28 - 46 78 807 932.5

G1/2

(1/4)
TBN300 830 361.97 312.5 391.97 194.5 194.5 57 130 30 F25Φ254 F16Φ165 M16x24 M20x24 46 78 893 1019 G1/2
TBN350 920 412.74 358.5 442.74 221.5 221.5 60 130 30 F25Φ254 F16Φ165 M16x24 M20x24 55 95 989 1128 G1/2
TBN400 1012 464.91 391 494.91 248 248 60 130 30 F25Φ254 F16Φ165 M16x24 M20x24 55 95 1088 1239 G1/2



TKFM factory directly float ball reduce bore pneumatic fully welded ball valve

No. Part name Material
1 Body Carbon steel St37.8
2 Neck PTFE+SPCB
3 Ball  304 stainless steel
4 Stem 2Cr13
5 Seat 25%C+PTFE
6 Metal washer 60Si2Mn
7 Spring 60Si2Mn
8 "O" Ring FPM
9 End piece Carbon steel St37.8
10 Handle Carbon steel +HCr
11 "O" Ring FPM
12 Gland  304 stainless steel



Five Advantages:

1. integral seamless steel tube pressed full-auto welded without leaking outward.

2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.

3. can be directly buried without need of a high ground well,saving the engineering cost.

4. both valve and pipeling are made of the same material, without the condition of uneven sterss.

5. in multiple connection combination, for use with special working conditions

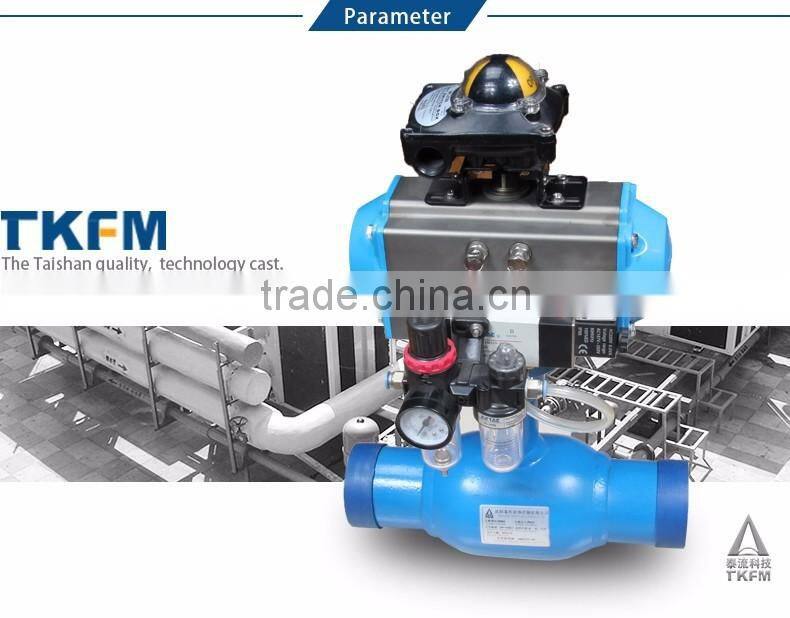

Installation of pneumatic actuators on the basis of the fully welded ball valve. Remote control can be achieved by compressed air. Mainly used in all kinds of dangerous situations, protect the personal safety of the operator, and can quickly shut down at a short time, the closing time is less than 5 seconds.

 TKFM factory directly float ball reduce bore pneumatic fully welded ball valve

(1) Shell Hydrostatic Test

ANSI B 16.34 Section 7.1
Valve Size NPS Test pressure Test Time. Sce
Below DN50 1:5 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 60 Sce
Up DN250 Max. Operating Pressure 180 Sce
  Test pressure should be above 1.5 times  than the valve's Max work pressure (100F)

(2) Seal Hydrostatic Test

The pressure should be more 1.1 times than working pressure by seal hydrastatic test

 TKFM factory directly float ball reduce bore pneumatic fully welded ball valve

ANSI B 16.34 Section 7.2
Valve Size NPS Test pressure Test Time. Sce
below DN50 1:1 times the 100°F 15 Sce
DN65~DN200 Rating of  ANSI  Class 30 Sce
above DN250 Max. Operating Pressure 60 Sce
  Test pressure should be more 1.5 times  than the valve's Max work pressure (100F) 180Sce

(3) Seal Air Test

Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.

 TKFM factory directly float ball reduce bore pneumatic fully welded ball valve

Packaging & Shipping

 TKFM factory directly float ball reduce bore pneumatic fully welded ball valveTKFM factory directly float ball reduce bore pneumatic fully welded ball valve

Our Services



1.100% factory price, because we are direct producer of ball valve, butterfly valves, check/non-return valves, gate valves and so on.

2.Market, technical support and after-sale service within 24 hours.

3. You can order your own configuration.

A: Manual     B: pneumatic   C: electric   D: bare shaft  E: disc with pin    F: disc without pin   G: double half shaft   H: one piece body   I: two pieces body  J: logo



TKFM factory directly float ball reduce bore pneumatic fully welded ball valveTKFM factory directly float ball reduce bore pneumatic fully welded ball valveTKFM factory directly float ball reduce bore pneumatic fully welded ball valve

Company Information

 TKFM factory directly float ball reduce bore pneumatic fully welded ball valve



Fully welded ball valve - Company advantages:

1. We are factory: Our factory address is: 19-11 Hunnan East Road,Hunnan New district, Shenyang City,Liaoning Province, China. Postcode: 110169

2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.

3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.

4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.

5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.

6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.

7. Quick Delivery: We have the large stock for some hot products.

8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.

TKFM factory directly float ball reduce bore pneumatic fully welded ball valve

FAQ



 1.What's payment terms?

30% down payment, 70% balance paid before shipment.



2.What's MOQ?

One set.



3.How control the quality of ball valve?

Select high quality raw material

Strict required during machining

Seat material comply with food grade

Tested twice to insure zero leakage



4.Delivery time?

15-25 days after received the advance payment.
