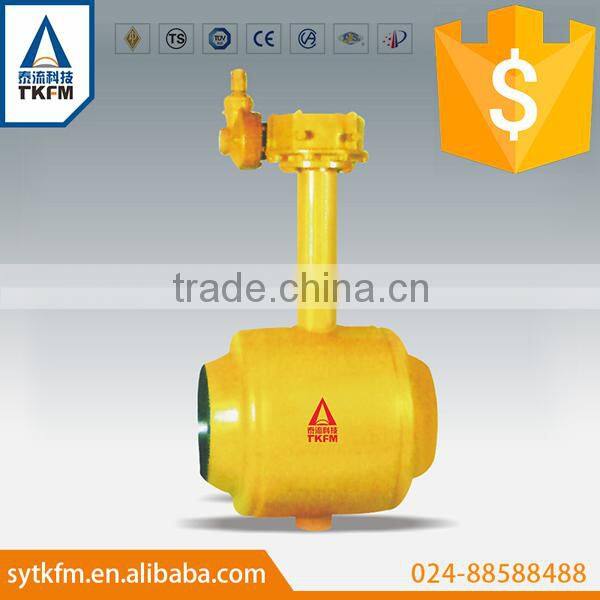

TKFM manual type gas pipeline used 2 inch underground reduced bore ball valve
| unit:millimeter(mm) | |||||||
| Size | NPS | D | D1 | D2 | L | ||
| CN | EU | S | L | ||||
| DN50 | 2 | 40 | 57 | 60.3 | 89 | 300 | 1000 |
| DN65 | 2-1/2 | 50 | 76 | 76.1 | 114 | 300 | 1000 |
| DN80 | 3 | 65 | 89 | 88.9 | 140 | 300 | 1000 |
| DN100 | 4 | 80 | 108 | 114.3 | 165 | 325 | 1000 |
| DN150 | 6 | 125 | 159 | 168.3 | 219 | 350 | 1000 |
| DN200 | 8 | 150 | 219 | 219.1 | 267 | 400 | 1000 |
| DN250 | 10 | 200 | 273 | 273.1 | 355 | 560 | 1000 |
| DN300 | 12 | 250 | 325 | 323.9 | 457 | 635 | 1100 |
| DN400 | 16 | 337 | 426 | 406.4 | 558 | 760 | 1360 |
| DN500 | 20 | 387 | 530 | 508 | 660 | 910 | 1510 |
| DN600 | 24 | 489 | 0.63 | 609.6 | 812 | 1065 | 1660 |
| DN700 | 28 | 591 | 730 | 711.2 | 1016 | 1346 | 1940 |
| DN800 | 32 | 686 | 830 | 812.8 | 1095 | 1524 | 2120 |
| DN900 | 36 | 781 | 930 | 914.4 | 1237 | 1727 | 2320 |
FULL BORE TYPE
CERTIFICATION: ISO, TS, API, GOST, CE....etc
We pay much attention in Test process:
(1) Shell Hydrostatic Test
| ANSI B 16.34 Section 7.1 | |||||||
| Valve Size NPS | Test pressure | Test Time. Sce | |||||
| Below DN50 | 1:5 times the 100°F | 15 Sce | |||||
| DN65~DN200 | Rating of ANSI Class | 60 Sce | |||||
| Up DN250 | Max. Operating Pressure | 180 Sce | |||||
| Test pressure should be above 1.5 times than the valve's Max work pressure (100F) | |||||||
(2) Seal Hydrostatic Test
The pressure should be more 1.1 times than working pressure by seal hydrastatic test
| ANSI B 16.34 Section 7.2 | |||||||
| Valve Size NPS | Test pressure | Test Time. Sce | |||||
| below DN50 | 1:1 times the 100°F | 15 Sce | |||||
| DN65~DN200 | Rating of ANSI Class | 30 Sce | |||||
| above DN250 | Max. Operating Pressure | 60 Sce | |||||
| Test pressure should be more 1.5 times than the valve's Max work pressure (100F) | 180Sce | ||||||
(3) Seal Air Test
Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.
1.100% factory price, because we are direct producer of ball valve, butterfly valves, check/non-return valves, gate valves and so on.
2.Market, technical support and after-sale service within 24 hours.
3. You can order your own configuration.
A: Manual B: pneumatic C: electric D: bare shaft E: disc with pin F: disc without pin G: double half shaft H: one piece body I: two pieces body J: logo
Fully welded ball valve - Company advantages:
1. We are factory: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. also can provide the competitive price.
2. Certification: API, CE, ISO,GOST, TS ..etc
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the customer requirement.
5. Complete Service: We are always ready to hear from you, reply within 12 hours.
6. Quick Delivery: We always keep the large stock for some hot products.
TKFM manual type gas pipeline used 2 inch underground reduced bore ball valve
1.What's payment terms? 30% payment in advance, 70% balanced before delivery. (if total value is USD$ 500, we suggest 100% payment in advanve.)
2.What's MOQ? One set. (if small size, we can check if free sample or not, freight need to be paid by customer.)
3.How control the quality of ball valve?
Select high quality raw material; Strict required during machining; Seat material comply with food grade; Tested twice to insure zero leakage; First copper plating disc, then nickle plating disc to increase the adhesiveness
4.Delivery time?
10-30 days after received the advance payment. (if stock, about 10 days)
