FTTX Solution EPON GEPON OLT with 8 PON Fiber Port 1:32 1:64 Ratio

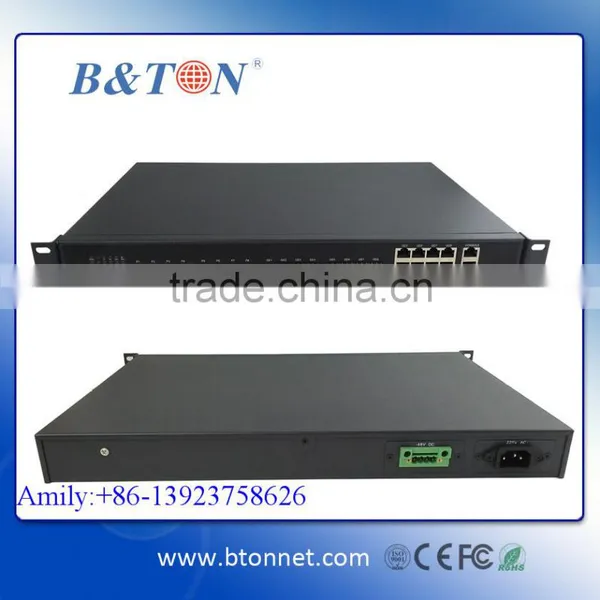

8PON Ports 1U Pizza-Box OLT provides 8GE(copper) and 8SFP slots Combo interface for uplink, and 8 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio
It presents the industry's leading GPON solution of 1508GS, which complies with the relevant standards of ITU G.984.x and FSAN. FD1508GS is 1U Rack mount equipment, 8pon ports, 8 GE uplink optic ports, 8 GE uplink electric ports. The maximum optical coupling ratio of 1:128, up to 1024 GPON ONTs. The down link band width is 2.5Gbps and uplink bandwidth is 1.25Gbps. The product is in compact design and convenient for flexible using, easy to deploy with high performance. It can meet the requirements of equipment performance and compact volume of the room environment. It can also satisfy the requirements of the access network and enterprise network that enhancing the network function, improving the reliability and reducing power consumption. The product is suitable for the "triple play" service, the resident of optical access network, video surveillance network, enterprise network and the Internet of the network applications.
Product Name |
Model |
Product Description |
Standalone OLT |
FD1508GS |
8PON GPON OLT 1U chassis, 8 GE uplink optic ports, 8 GE uplink electric ports, 220VAC or -48VDC plug-in power modules, supports dual power configuration, optional 10Gbit uplink port |
Ethernet SFP |
SFP-GFX-D20 |
Gigabit Ethernet SFP optical module, the default 20KM double fiber model |
OLT SFP optical |
OLT-SFP-B+ |
ITU-TG.984.2Class B+ |
10Gb uplink card |
FD1502GX |
2*10Gb uplink interface, can be installed in the FD1508GS frame |
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
